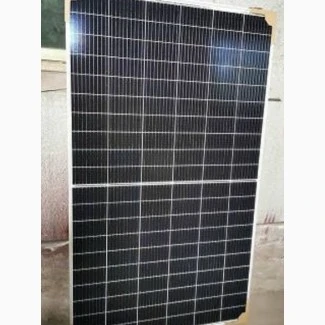

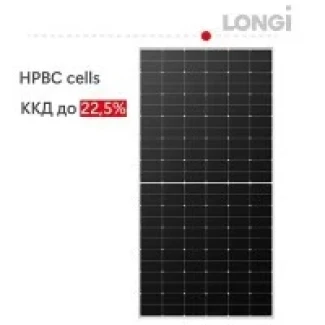

Solar battery 620W BIFACIAL HIMO7 V2R LR8-66HGD-620М cable 200/400mm LONGI, Kyiv

Solar battery 620W BIFACIAL HIMO7 V2R LR8-66HGD-620M is highly efficient two-sided (bifacial) module of the new generation, created on the basis of advanced HPDC (High Performance Dual-Cell) architecture.

This is a modern double-sided solar battery of increased power and efficiency, designed for long-term operation and high efficiency even in difficult operating conditions.

The main advantages of the solar battery 620W BIFACIAL HIMO7 V2R LR8-66HGD-620М

High power and efficiency
The nominal power of the panel reaches 620 W, and the efficiency is up to 23.0%, which provides more energy production per unit area.

Two-sided generation (bifacial)
Thanks to the transparent glass-glass design, the module is able to capture the reflected radiation from the back side, increasing the total generation up to 10–30% depending on the installation conditions.

Reliability and durability
Glass-glass construction 2 mm thick on both sides and anodized aluminum frame ensure high mechanical strength: maximum static load on the front side 5400 Pa, maximum static load on the back side 2400 Pa.

Long warranty
The manufacturer provides a 12-year warranty on the product and a 30-year warranty on power retention. After 30 years of operation, the panel retains at least 87.4% of its original performance.

Resistance to external conditions
The panel is certified according to international standards (IEC/UL), resistant to moisture, sandstorms, salt and ammonia, which makes it the optimal choice for different climatic zones.

Low temperature coefficient
With a power derating factor of -0.28%/°C, the module operates stably even in hot climates, providing more energy output compared to traditional panels.

Technical characteristics of the solar battery 620 W BIFACIAL HIMO7 V2R LR8-66HGD-620М

Size, mm 2382×1134×30
Power, W 620
Uxx,В 48.78
Ikz, A
16.05

Ur, B 40.91
Ip,A 15.16
Efficiency,% 23.0
Weight, kg
33.5

Rating of solar panel manufacturers by InfoLink Consulting:

Jinko, Longi, JA Solar and Trina continue to hold the top four positions with little change in the rankings. Since 2019, these vertically integrated companies have held the top four positions in the ranking, with the largest companies becoming larger in recent years, leaving behind the second-placed companies with a significant gap in supply volumes of more than 30%, with the top four accounting for 63% of the total volume of the top ten. The Longi company has stable indicators that allowed it to take second place. It has achieved deliveries of HPBC products on a scale of GW.

Rating of producers 2024(//tractor-service.com)

Place

Manufacturer

1

Jinko

2

LONGi / JA Solar

4

Trina
5

Tongwei

6

A stronergy

7

Canadian Solar

8

GCL

9

DAS Solar

10

Yingli

Source: https://www.infolink-group.com/energy-article/solar-topic-2024-global-module-shipment-ranking-significant-gaps-between-tiers
