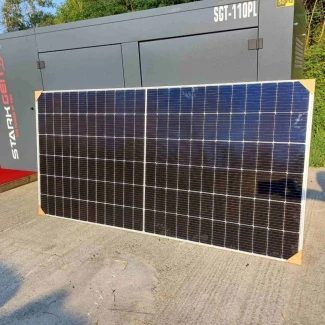

Solar panel MYM Solar Energy, Kyiv region.

Solar panel MYM Solar Energy model SM72M-540-HC-HV (cat. A) is the perfect choice for those looking for a reliable and efficient solution in the field of green energy. This photomodule demonstrates a high efficiency and significant power. By choosing solar panels manufactured by MYM, you are investing in the future, providing your home or business with clean and stable energy.
MYM solar panels are used both in industrial and private solar power plants throughout Ukraine.
It is designed to convert sunlight into electric current, which will be used to power electrical appliances or to sell its surplus at the "green tariff".
Such photo modules set the direction of development of the entire business - the power of the panels already exceeds 500 W and reaches 600 W. Therefore, the station owner will save on the total number of panels and the fastening system.
The set of solar panels can be supplemented with an inverter, controller and batteries.

Electrical characteristics
Maximum power (Pmax): 540W.
Permissible power deviation: 0+4.99 W
Open circuit voltage (Voc): 49.5
Maximum string voltage: 1500 V DC
Optimal working voltage (Vmp): 41.55V
Short-circuit current (Isc) : 13.81 A
Optimal operating current (Imp): 13.01A
Module efficiency: 20.9%(//tractor-service.com)
Maximum fuse current: 25A

Temperature characteristics
Nominal working temperature: -40~+85°C
Temperature coefficient Pmax: -0.34 %/°C
Temperature coefficient Voc: -0.25 %/°C
Temperature coefficient Isc: 0.04 %/°C

Mechanical characteristics
Panel size: 2,279*1,134*35 mm.
Weight: 27 kg.
Cell size: 182*91 mm.
Number of cells: 144 pcs. (12*12)
Degree of protection: IP68
Connector type: MC4
Output cables: 350-1,600 mm.
