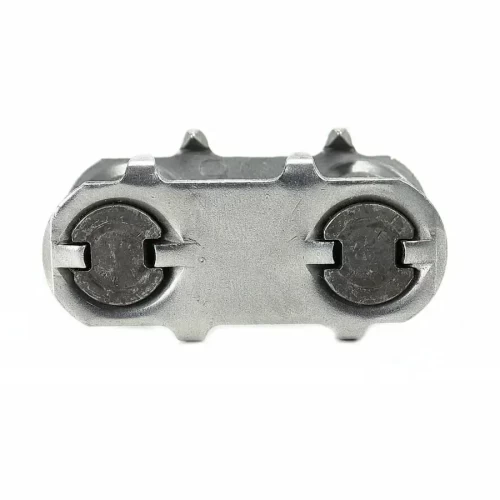

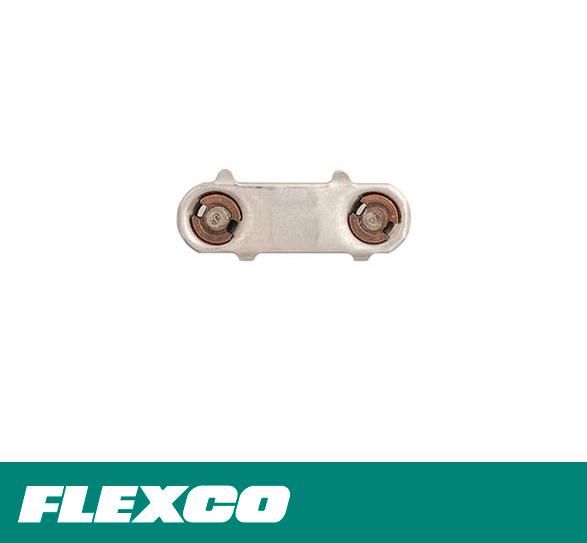

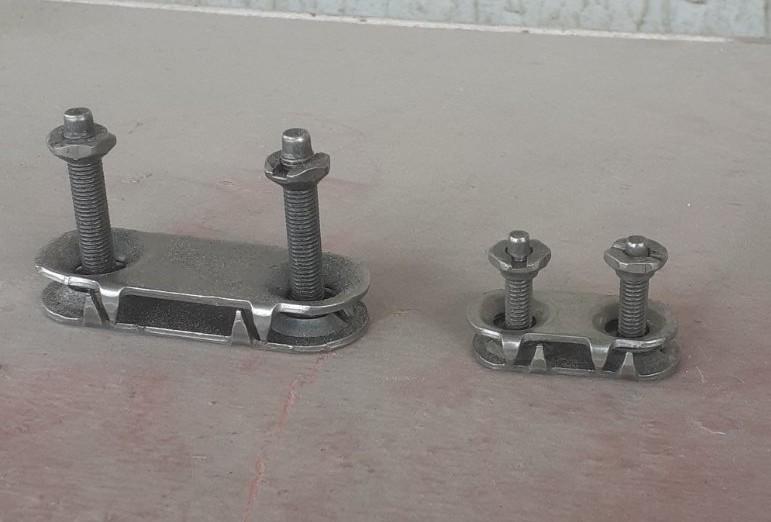

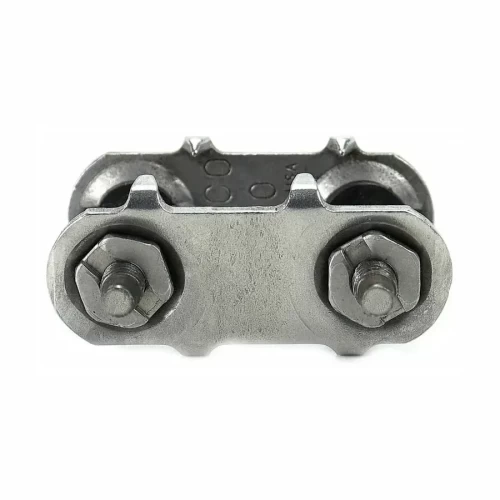

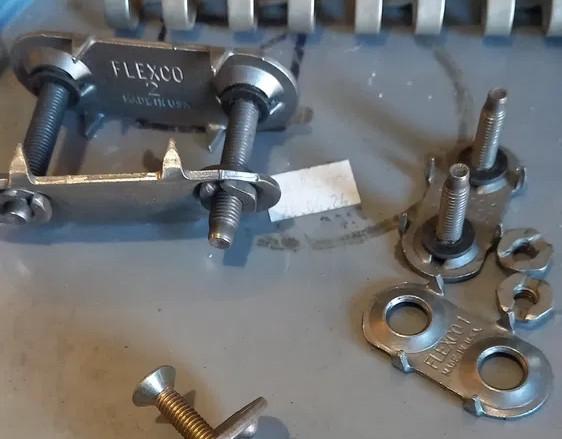

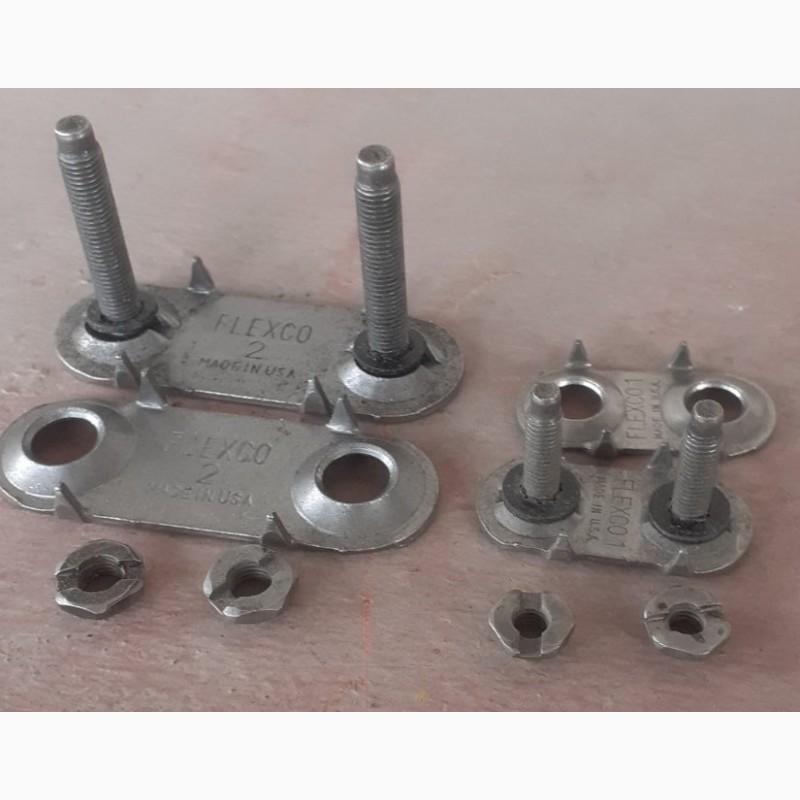

Mechanical connectors Flexco® Bolt Solid Plate 2

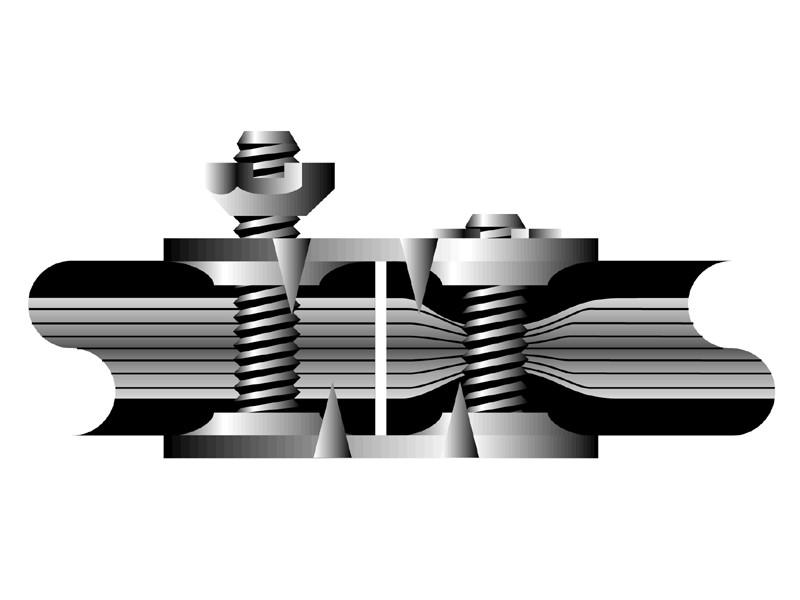

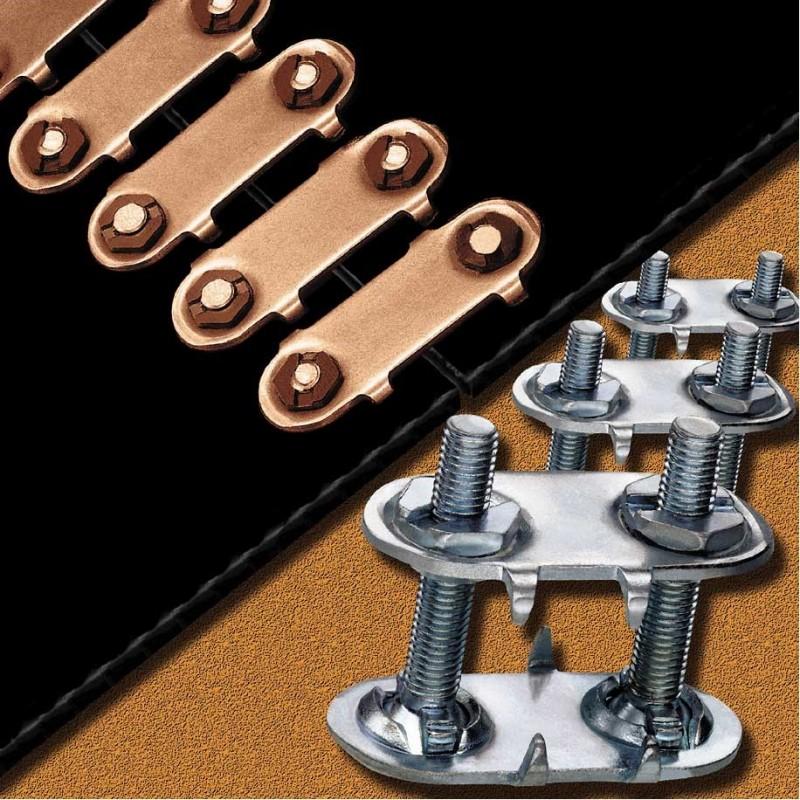

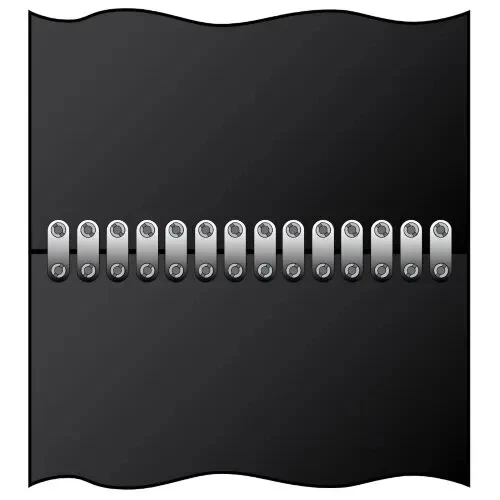

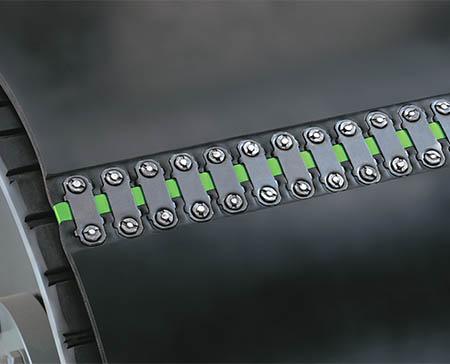

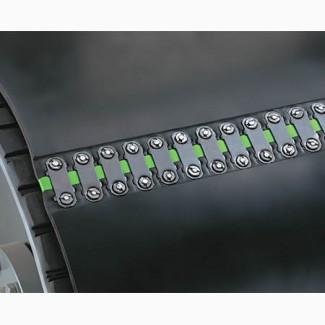

The Flexco® Bolt Solid Plate System conveyor belt connection system provides a reliable bolted non-detachable butt joint with excellent holding power.

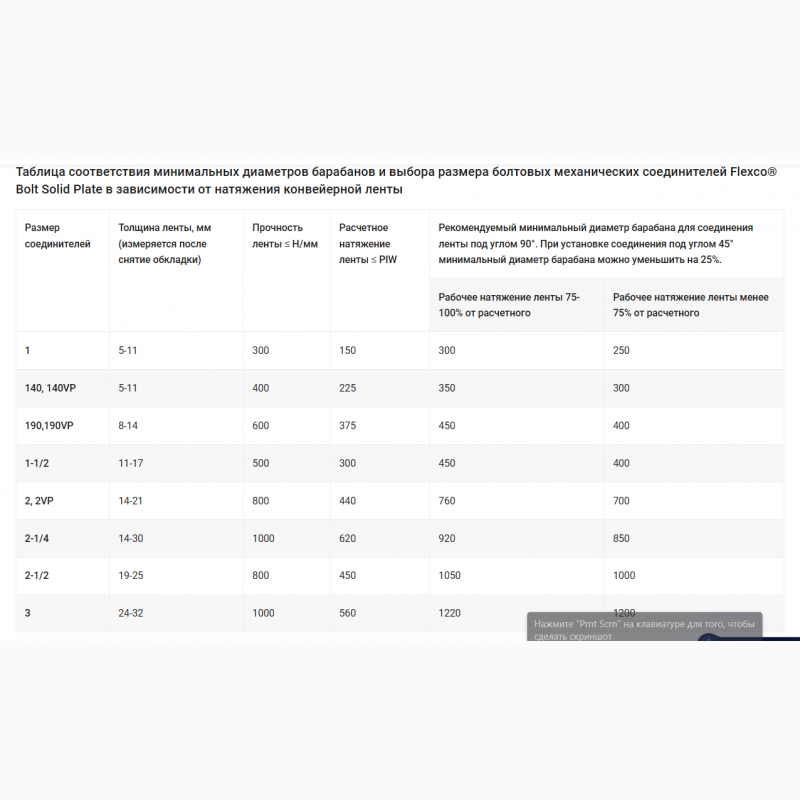

The standard size of Flexco® Bolt Solid Plate mechanical connectors is selected depending on the thickness of the tape, the strength of the tape and the diameter of the drive drum of the conveyor. Flexco® Bolt Solid Plate 2 connectors are available in steel, stainless steel, non-sparking Everdur® alloy, wear-resistant MegAlloy® alloy.

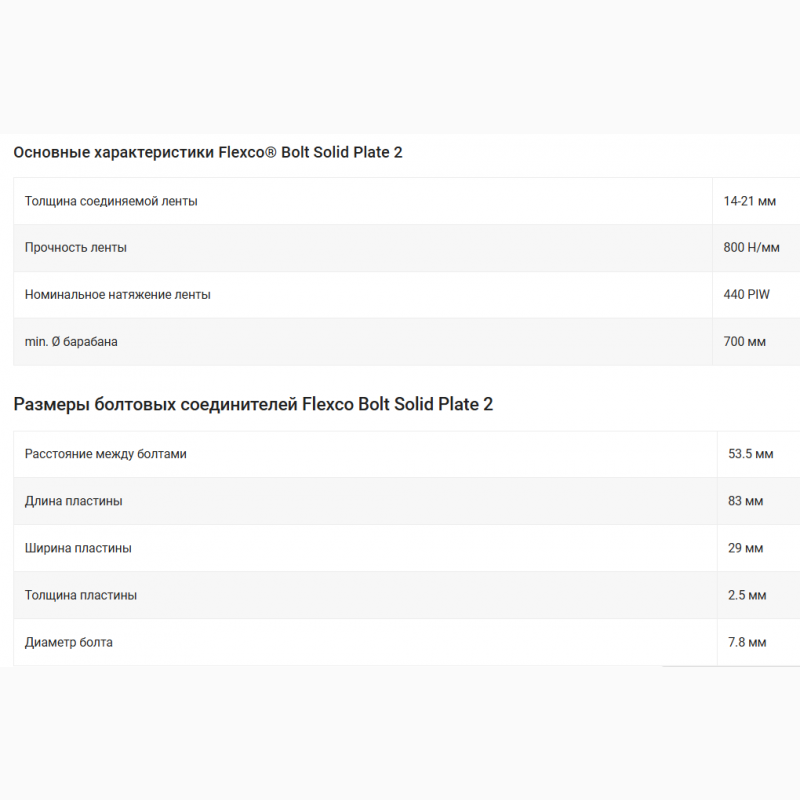

Main characteristics of Flexco® Bolt Solid Plate 2
The thickness of the connecting tape is 14-21 mm.
Tape strength 800 N/mm(//tractor-service.com)
Nominal tape tension 440 PIW
min. Ø drum 700 mm

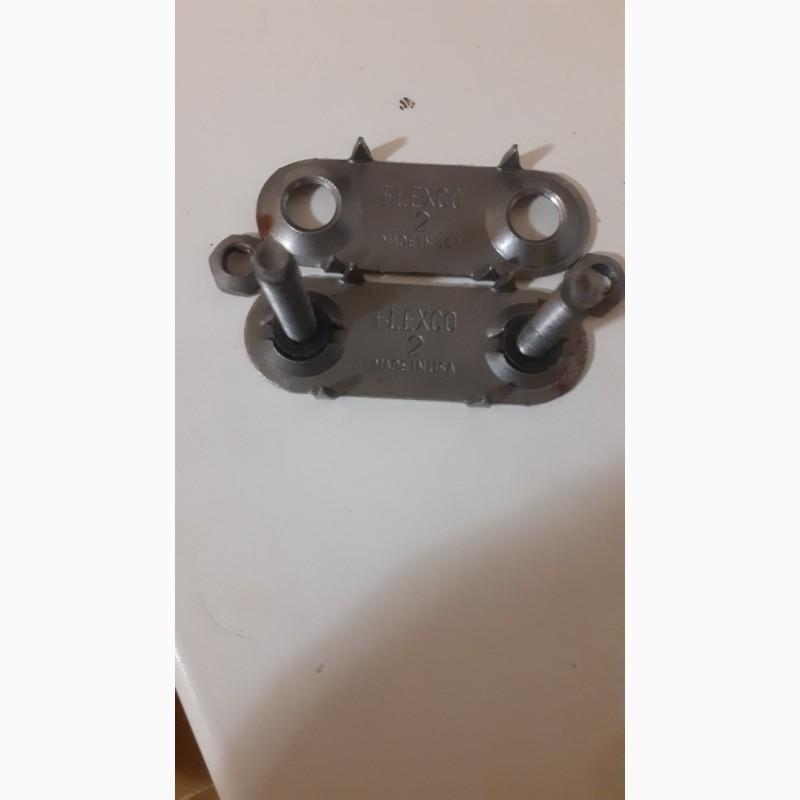

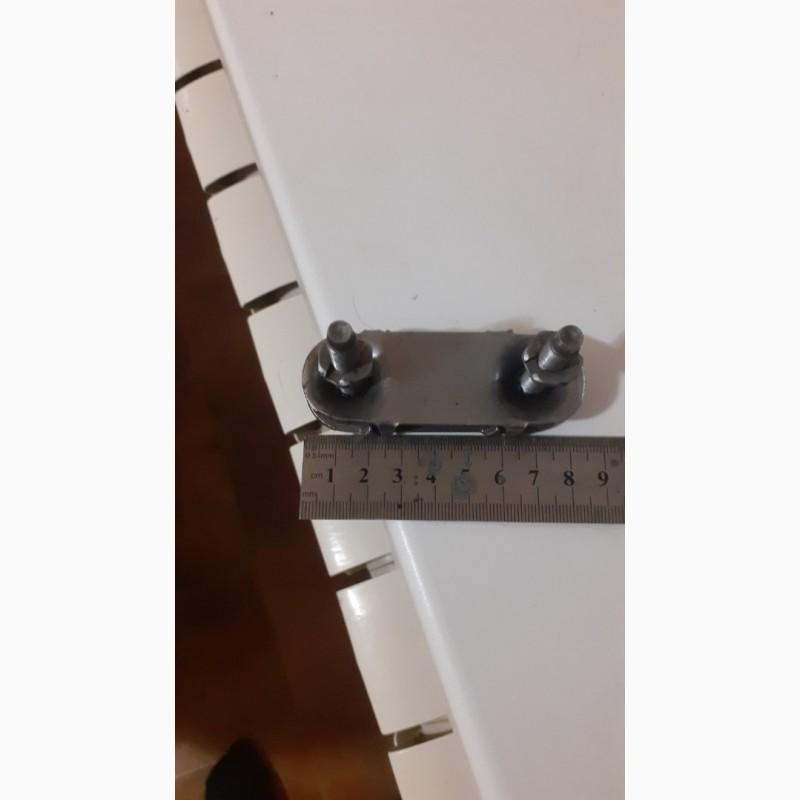

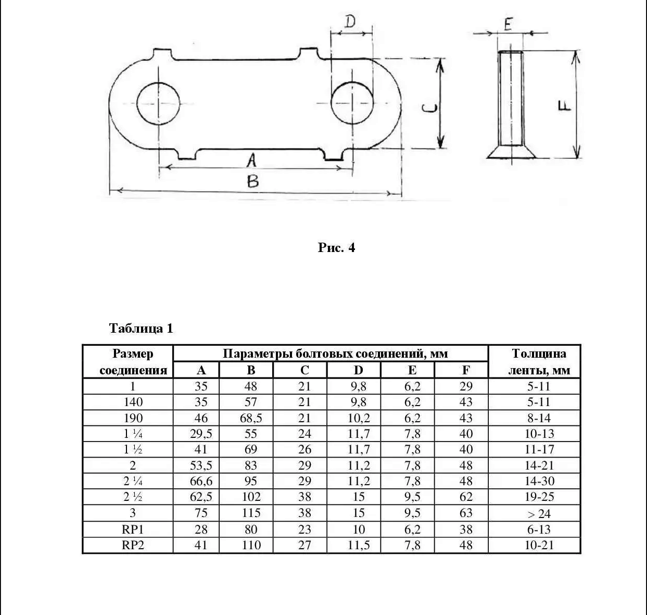

Dimensions of bolt connectors Flexco Bolt Solid Plate 2
The distance between the bolts is 53.5 mm.
The length of the plate is 83 mm.
The width of the plate is 29 mm.
The thickness of the plate is 2.5 mm.
Bolt diameter 7.8 mm
