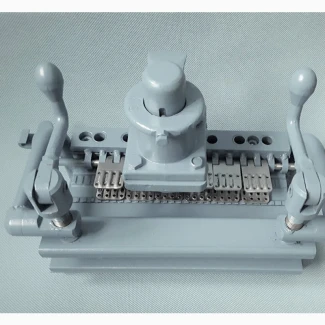

Device for pressing staples UM130
For mechanical connection of conveyor belts using universal detachable connectors UM1000.11, UM1400.13, UM1750.15 of all modifications.
The set includes a 1.5 kg hammer.
Belt planer (groove cutter SKL20), square with a groove for cutting the belt at a right angle L=1200, knife for the conveyor belt - ordered separately.
Universal device UM130 for pressing mechanical connectors UM1750.15
UM connectors are intended for joining conveyor belts with a strength of up to 1750 N/mm. Simple and quick installation using a hammer and a special hammering device UM130
Areas of application of detachable mechanical connectors UM1750.15:
transportation of coal, granite, ore, rock, etc.
concrete plants
careers
The type of conveyor belt connected by UM1750.15 connectors: multi-layered or monocorded rubber fabric
The maximum strength of the connecting tape: up to 1750 N/mm.
The minimum recommended diameter of the drive drum is 350 mm.
The following types of UM connectors are available:(//tractor-service.com)
UM1000.11 for tapes with strength up to 1000 N/mm
UM1400.13 for tapes with strength up to 1400 N/mm
UM1750.15 for tapes with strength up to 1750 N/mm
Detachable mechanical connectors UM1750.15 are pressed into the end of the conveyor belt with the help of a special hammering device UM130, after which both parts of the joint are connected according to the "zipper lock" principle, the UM connecting rod is inserted into the loops.
The UM connecting rod is a piece of rope of a special design, the length of which depends on the width of the connecting conveyor belt.
The length of the UM connecting rod, mm 785, 985, 1185, 1385, 1585.
Mechanical connectors UM1750.15 and their modifications are supplied in a set for the width of the connected conveyor belt of 1000 mm or in a plastic container for a joint of 3000 mm. When joining the tape, the detachable connectors UM1750.15 can be dialed to any greater or lesser width of the tape.
*complete sets of UM1750.15 connectors are available upon request for joining tape of a certain width.
Advantages of mechanical detachable connectors UM1750.15 and their modifications:
when preparing for joining the tape, the technology is simplified, the tape covers do not peel off, simple cutting of the tape at a right angle;
Conveyor belt economy - butt-to-butt connection
the flexibility of the resulting joint is almost the same as that of a solid tape, which does not create tension when the tape passes through the drums;
a tape of the same thickness throughout will not make it difficult to pass through cleaning devices;
disassembly and assembly of the tape cloth is simplified in any place;
the share of manual labor (mechanization of work) decreases due to the use of the tool.
