Visteon compressor electromagnet HS-15, HS-16, HS-17, Kyiv

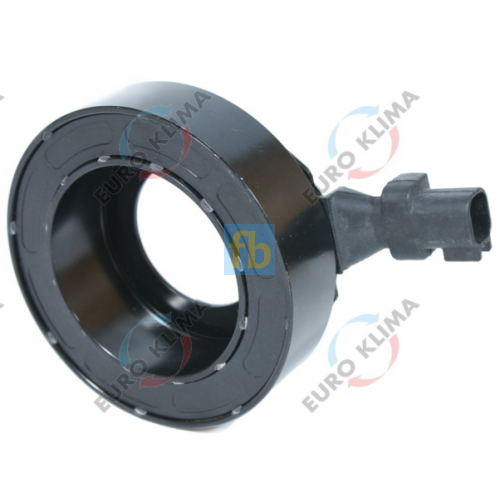

Visteon compressor electromagnet HS-15, HS-16, HS-17

Upgrade your car's A/C with our VISTEON HS-15, HS-16 & HS-17 Compressor Solenoid!

Want to enjoy the coolness of your car in any weather? Our VISTEON Compressor Solenoid is your best choice!

Features:

Inner diameter: 64mm
Outer diameter: 97mm
Height: 31mm
Seat: 45mm
Voltage: 12V

Application on compressors:

VISTEON: HS-15, HS-16, HS-17.
(//tractor-service.com)
Application in cars: Citroen, Fiat, Ford, Peugeot

Reasons for failure:

Overheating – caused by a worn pulley bearing, slippage of the pulley and pressure plate.

Incorrect installation by the master installer (for example, when mixing up the positive and negative connections).

How to determine that the electromagnet does not work?

An electromagnetic coil is a device that is activated when an electrical voltage is applied to it and attracts a pressure plate connected to the compressor shaft through a splined connection. Thus, the solenoid coil controls the engagement of the pulley with the compressor shaft as it starts the car's air conditioning system.

The electromagnet is often the cause of the breakdown of the air conditioner, so the correct diagnosis of its operation is extremely important when detecting malfunctions in the air conditioner.

How to check:

this can be done with a tester. The resistance at 12 V should be approximately 3-4 Ohms, and at 24 - much higher, about 6-12 Ohms. If the resistance does not correspond to these values ​​or is absent at all, then the electromagnetic coil does not work and needs to be replaced.

Don't miss the opportunity to improve your car's air conditioning with our reliable and efficient VISTEON HS-15, HS-16 and HS-17 Compressor Solenoid from Euroklima!
