Electromagnet of air conditioner compressor Denso 10PA, Kyiv

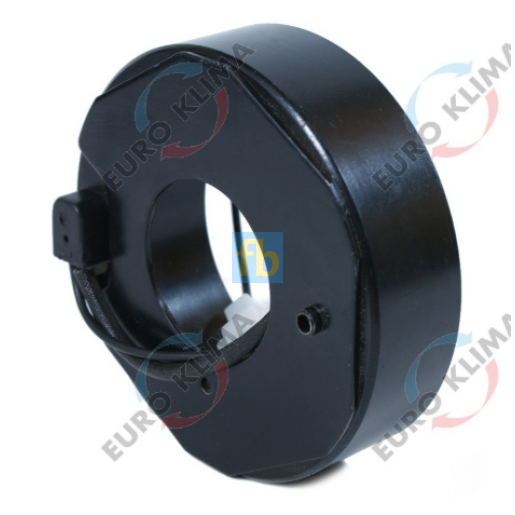

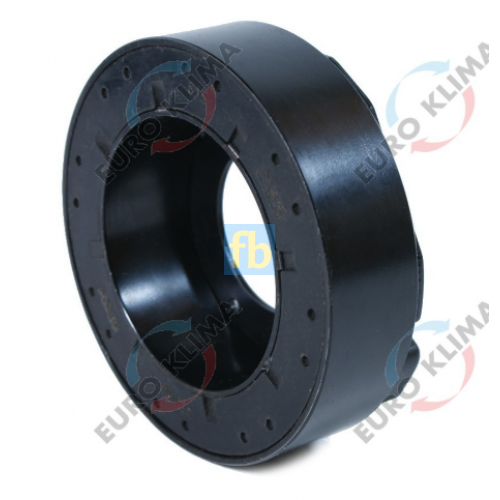

Electromagnet of Denso 10PA air conditioner compressor

Features:

Inner diameter: 62mm
Outer diameter: 97mm
Height: 28mm
Landing place: 40mm
Voltage: 12V

Application:

Electromagnet Denso 10PA is used on Denso compressors of the following models:

10PA, 10PA15, 10PA15A, 10PA15C, 10PA15E, 10PA15L, 10PA15LC, 10PA15SC,
10PA15VC, 10PA15VL, 10PA17, 10PA17A, 10PA17C, 10PA17E,

10PA17H, 10PA17J, 10PA17K, 10PA17SC, 10PA17SH, 10PA17VC, 10PA17VL, 10PA17VSC,
10PA20, 10PA20C, 10PA20H, 10PA20J, 10PA20SC, 10PA20SH, 10PA20VC,

1472001241, 210PA0, 4471003360, 4471007920, 4471007922, 4471007923, 4471007924, 4471007924, 4471007925, 170
4471009110, 4471009112, 4471009510, 4471009810, 4471009811, 4471705550, 4471706340, 4471706341,

4471706342, 4471706344, 4471706345, 4471706346, 4471706347, 4471708921, 4471709822, 4472009070,4 72009575, 4472009576, 4472009577,

4472009578, 4472009579, 4472009610, 4472009614, 4472009990,
44722009991, 4472203971, 4472205870, 4472205873, 4472208170, 4472208171, 4472208172, 4472208173,

4472208174, 4472208175, 4472208176, 4472208177, 4472208260, 4472208262, 4472208742, 4473001370, 4 6, DCP14005.

Used on cars:
(//tractor-service.com)
AUDI, BMW, CASE CONSTRUCTION, CASE AGRICULTURE, CHRYSLER, CLAAS, FIAT, FORD, NEW-HOLLAND, HONDA, HYUNDAI, IVECO, JAGUAR,

JEEP, JOHN DEERE, KIA, LANCIA, LEXUS, AGRICULTURE MACHINES, MERCEDES, MITSUBISHI, OPEL, RENAULT AGRI, ROVER, SAAB, SKODA, TOYOTA, VOLKSWAGEN.

Original manufacturer numbers:

Chrysler: 05005421AB, 05005421AC, 05005421AD.
Opel: 1854048, 1854084, 1854137, 1854149, 9196949, R1580013.
Cargo: 241108, 241164, F032241108, F032241164.
Saab: 4541207, 4869483, 5046891, 5048095.
Jeep: 55037467AA, 55037467AB, 55037467AC, 55037467AD.
General Motors: 90457635, 90564976.

EUROKLIMA: CA140, CA141, CA142, CA143, CA144, CA145, CA146, CA147, CA148, CA149, CA150, CA522, CA528, CA567,

CA572, CA577, CA578, CA58378, CA587, CA604, CA616, CA639, CA654, CA661, CA672, CA674,

CA68315, CA684, CA717, CA78348, CA78349, CA819, CA864.

Volkswagen: 4B0260805B, 4B3260805, 4B3260808, 4D0260805B, 4D0260805D, 4D0260808.

Reasons for failure:

Overheating – caused by a worn pulley bearing, slippage of the pulley and pressure plate.
Incorrect installation by the master installer (for example, when mixing up the positive and negative connections).

How to determine that the electromagnet does not work?

An electromagnetic coil is a device that is activated when an electrical voltage is applied to it and attracts a pressure plate connected to the compressor shaft through a splined connection. Thus, the solenoid coil controls the engagement of the pulley with the compressor shaft as it starts the car's air conditioning system.

The electromagnet is often the cause of the breakdown of the air conditioner, so the correct diagnosis of its operation is extremely important when detecting malfunctions in the air conditioner.

How to check: This can be done with a tester. The resistance at 12 V should be approximately 3-4 Ohms, and at 24 - much higher, about 6-12 Ohms. If the resistance does not correspond to these values ​​or is absent at all, then the electromagnetic coil does not work and needs to be replaced.
