Universal press for briquetting and granulation 600 kg/h. Vector, Poltava region.

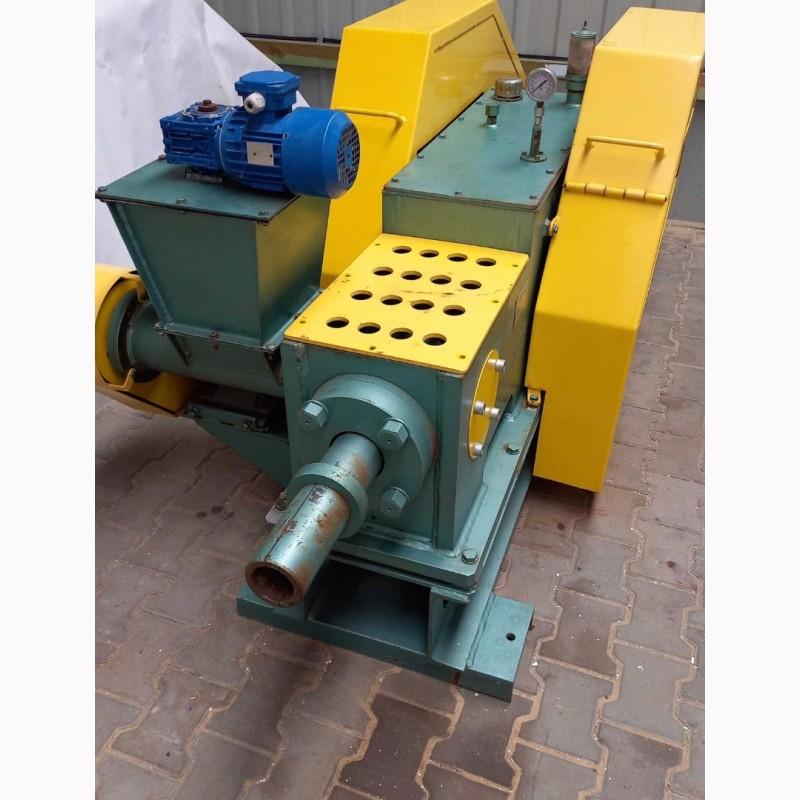

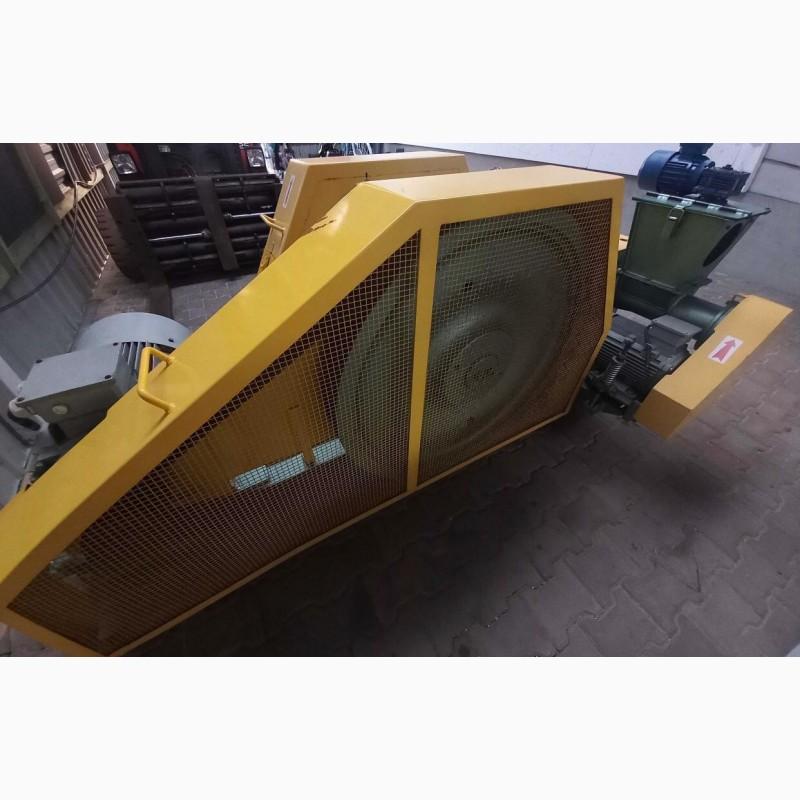

Vektor BT60 briquetting and granulation press: Innovations in the Production of Pellets and Briquettes.

The Vektor BT60 briquetting and granulation presses are highly efficient equipment for the production offuel briquettes (60-70 mm) and pellets (7-18 mm) using a shock-mechanical process. It is able to process a variety of raw materials, allowing you to use a wide range of natural materials.

Types of raw materials:

Wood sawdust: Soft and hard wood species are used to create environmentally friendly briquettes and pellets.
Straw briquettes and pellets are an effective solution for using agricultural residues.
Sunflower husks: A highly effective material for creating high-quality energy products.
Peat: Peat briquettes are an important source of energy and are used in various industries.
Crop waste: The use of crop processing waste adds economic value to production.
Waste processing of flax, buckwheat, sorghum and others: Expand the possibilities of using raw materials for a variety of products.
Features and benefits of Vector BT60:

Uniqueness: The combination of granulator and briquetting press functions makes the Vector BT60 unique in its class.
High strength: The use of special hardened steel guarantees a long service life and high quality of products.
Cost-effectiveness: Reduced production costs and affordable prices for replacement parts make the Vector BT60 a profitable choice for your business.
(//tractor-service.com)
Technical characteristics BT-60:
No. Parameter Unit. changes Indicators
1 Productivity - sawdust kg/h 500-700
2 Productivity - straw kg/h 300-400
3 Productivity - sunflower husk kg/h 300-400
4 Allowable humidity % 8-12
5 Density of briquettes g/cm3 0.8-1.2
6 Briquette diameter (standard execution) mm 70
7 Diameter of pellets (granules) mm 6-22
8 Briquette length (random, adjustable) mm 25-200
9 Main drive motor power kW 22
10 Engine power of the worm drive of the briquette press kW 5.5
11 Type of lubrication of bearings, main shaft, bushings, connecting rod, conductor. -Forced Lubrication
12 Oil type - M10G2K
13 Oil volume dm3 40
14 Oil pressure mPa 0.6
15 Type of oil pump - Gear
16 Lubrication of other elements - Plastic lubricant
17 Size - length x width x height mm 260x950x1100
