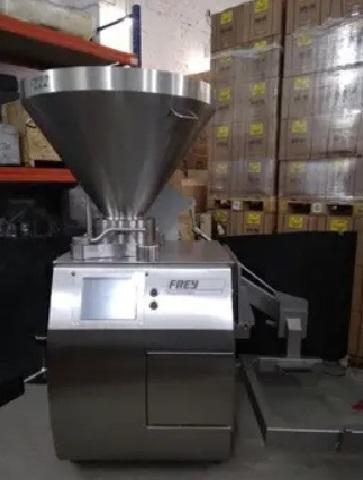

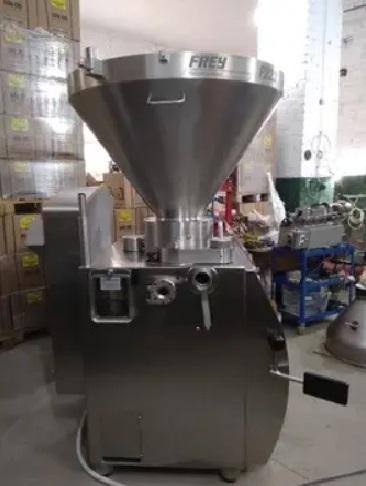

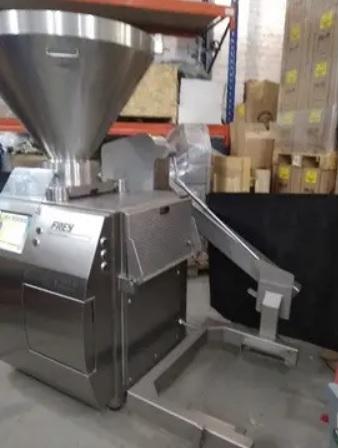

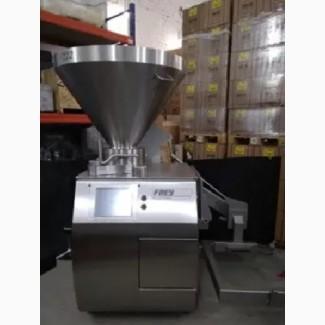

Frey F Line 222P rotary vacuum syringe with loader 2017, new condition, Kyiv

The machine is equipped with a separate drive of the auger.

Filling capacity up to approx. 6.200 kg/hour
Machine body (inner and outer) and loading hole made of stainless steel
Loading pit, approx. 300 liters
Optional: Loading pit, separable, approx. 40/300 liters
Filling pressure up to max. approx. 50 bar
built-in vacuum system and water separator
Electronic locking step
Total power consumption: max. 18.3 kW
Alternating current, 400 volts, 50 Hz
Including standard accessories

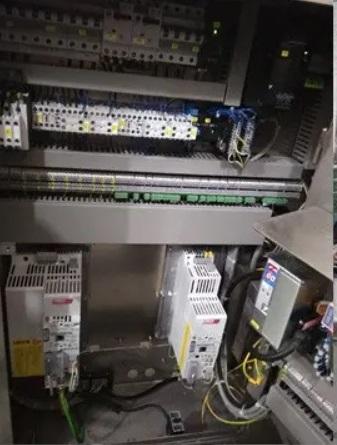

Sensor control system FREY TC733
Management taking into account the industrial computer
12-inch thin-film color display (800x600 pixels)(//tractor-service.com)
Intuitive control by touching the display (touch control)
CAN bus for high-speed data exchange with connected devices
Ethernet interface
USB interface
List and index of product names in the program
Portioning range: 5 - 100,000 g (5 - 999 g in 0.1 g increments)
The possibility of stepless selection of the tempo and duration of the pause.
Flow measurement, counter in pieces, shutdown by quantity in pieces
Retraction of the remaining mass andportion supplement for the 1st portion
Malfunction indicator
Memory device for 200 filling programs, including the program for cooked sausage
Electronic impulse control for clipper
With built-in vacuum system and water separator
Digitally controlled vacuum system
Vacuumpump, 21 m³
