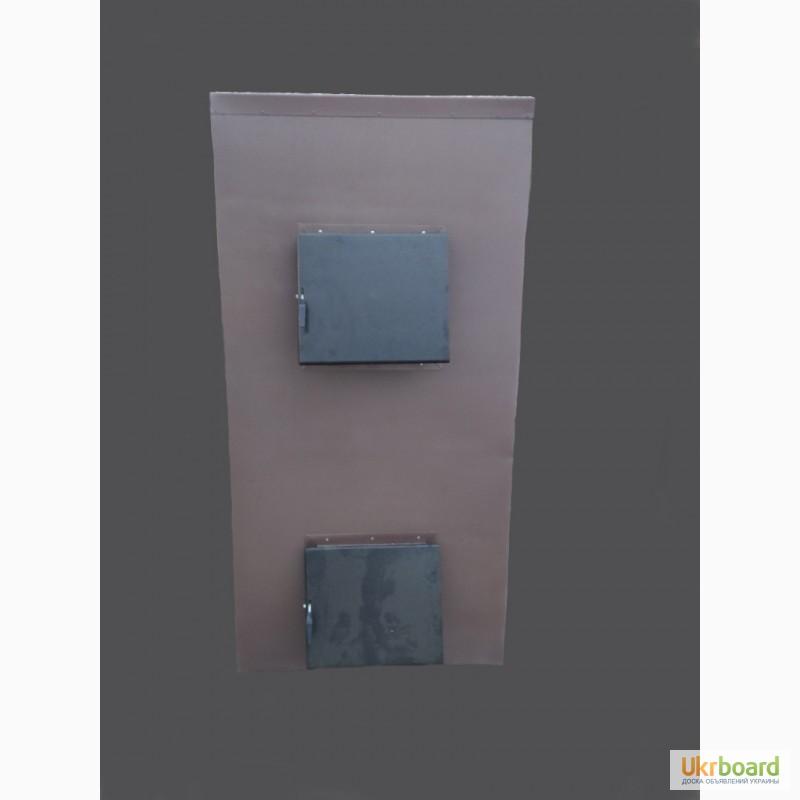

KFPV-200 pyrolysis air heating boiler from the manufacturer, Poltava region.

KFPV-200 air heating pyrolysis boiler from the manufacturer

The KFPV-200 pyrolysis air heating boiler is used for:
- air heating of premises up to 8000 m3, such as livestock complexes, pig complexes, farms, greenhouses, workshops, hangars, workshops, technical stations, etc.;
- drying of grain crops, raw materials for the production of pellets, medicinal plants, etc. as a heat generator.

One charge is calculated for 6 - 8 hours of burning, depending on the selected type of fuel. The bestfuel is considered large logs of any species with a moisture content of up to 20%.
Fuel for this boiler can be:
- wood waste from construction industry;
- furniture production waste (fiberboard, chipboard);
- bales of hay, straw;
- briquettes (buckwheat, sunflower, corn cobs, oats);
- pellets.

Characteristics of the KFPV-200 air heating pyrolysis boiler

Parameters Ed.izm. Значение
Heat capacity, kW, 200
Volume of loading chamber (gas formation), m3, 0.94
Working air temperature, 0C, 50-120
Efficiency at fuel humidity,%:
20% - 90
40% - 82
Nominal pressure behind the boiler (no more), Pa, 40
Temperature of outgoing gases (not less), 0С, 160
Power consumption, kW, 2.2(//tractor-service.com)
Power supply voltage, V, 220
Chimney diameter, mm, 250
The volume of the heated room, cubic meters, 8000
The maximum length of firewood, mm, 1000
Dimensions, mm
Depth - 2210
Width - 950
Height - 2250

Weight kg 1900
Used fuel, Firewood, briquettes

Made from boiler steel 5mm thick.
It is possible to make boilers according to the Customer's individual dimensions.
It is recommended to install the boiler in a separate standing room.
Be sure to ground the boiler and the centrifugal fan.

The warranty period is 12 months (with the exception of cases of thermal deformation of metal caused by overheating of the boiler).

Equipment delivery time: 14-20 days.
Each boiler can be equipped with a burner working on any solid fuel of small fraction (pellets, sawdust, sunflower husks, any agricultural waste with any ash content).
It is possible to install a burner that works onoils and any liquid fuel. Automatic ash removal is possible.

We are forming a dealer network. We invite trading and assembly organizations to cooperate.

Our site: http://www.kfk.com.ua
