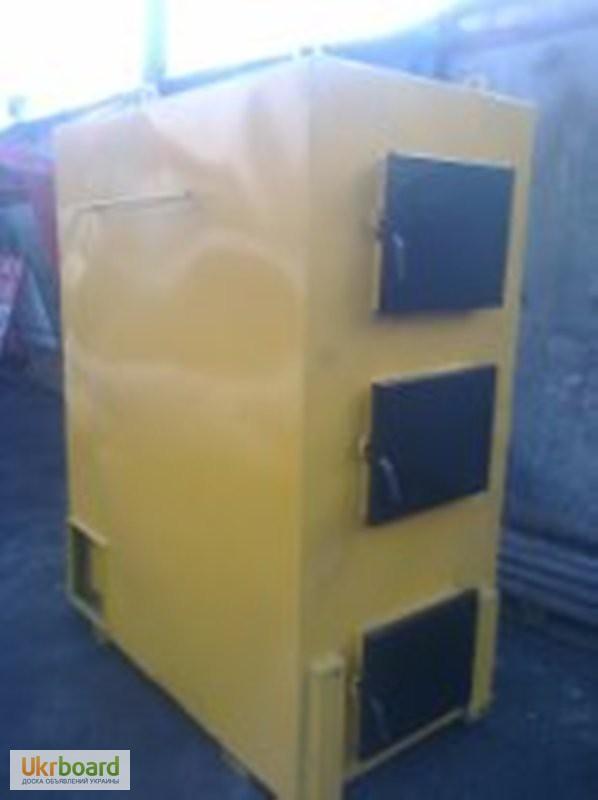

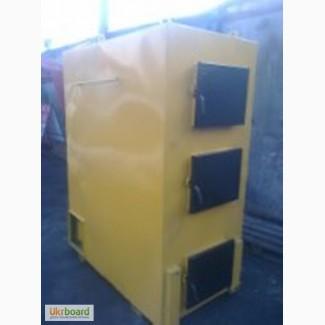

Solid fuel pyrolysis boiler of air heating KFPV-150 from the manufacturer, Poltavskaya region.

Solid fuel pyrolysis boiler of air heating KFPV-150 from the manufacturer

We offer to your attention solid-fuel pyrolysis boilers of air heating of the KFPV series, the principle of which is based on the burning of wood gasgas, which is released in the process of burning wood.
Due to the fact that combustion proceeds from top to bottom and the main heat exchanger is located in the lower part, maximum heat transfer and heating of the coolant occurs. Pyrolysis solid fuel boilers of long burning are several times more effective than ordinary ones!
Fuel for these boilers are: firewood, woodworking waste, fuel briquettes, straw, husks, corn cobs, etc. (except coal!)
These boilers heat rooms up to 6000 cubic meters!
Boilers of the KFPV type are intended for heat supply of individual dwellings, industrial premises, warehouses, car washes, gyms, livestock farms, poultry houses, greenhouses and other large premises, and are also used for drying wood, grain, mushrooms, berries, medicinal plants.
Technical characteristics of the KFPV-150 air heating pyrolysis boiler
Parameters Ed.izm. Значение
Heat capacity, kW, 150
Volume of loading chamber (gas formation), m3, 0.84
Working air temperature, 0C, 50-120
Efficiency at fuel humidity, %:
20% - 90
40% - 82
Nominal pressure behind the boiler (no more), Pa, 40
The temperature of the outgoing gases (not less), 0С, 150
Electric power consumption, kW, 1.2-1.6
Power supply voltage, V, 220
Chimney diameter, mm, 200
The volume of the heated room, cubic meters, 6000
The maximum length of firewood, mm, 1000
Overall dimensions. mm(//tractor-service.com)
Depth 1900
Width 950
Height 1930
Weight, kg, 1650
Used fuel, Firewood, briquettes
Basic equipment of pyrolysis boiler of air heating KFPV-150:
- firebox lined with fire-resistant brick SHA-5, size, mm: 1000x700x1200, volume - 0.84m³;
- heat exchanger pipes (thickness 3.5 mm);
- heat exchanger body (boiler steel, thickness 5 mm);
- boiler control automation (manufacturer - Poland).
Additional equipment (as agreed with the customer):
- heat-saving cover of the heat exchanger made of basalt wool;
- fan VC 4-75 No. 4, 3000 rpm, 4 kW/h.

Warranty maintenance of the boiler is 12 months, electrical and electronic components - 12 months.

Equipment delivery terms: 14-20 days.

Each boiler can be equipped with a burner that works on any solid fuel of small fraction (pellets, sawdust, sunflower husks, any agricultural waste with any ash content). It is possible to install a burner that works onoils and any liquid fuel. Possible installation of automatic ash removal.

We invite trading and assembly organizations to cooperate.
