Протравитель камерный стационарный ПКС-20 ПТ + разрешающая подача, Львовская обл.

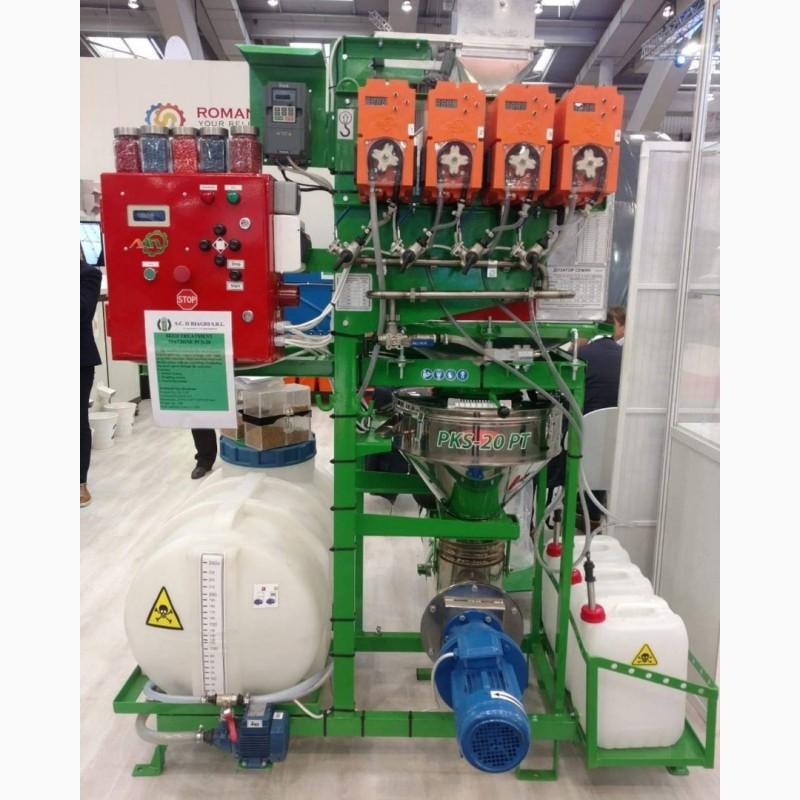

PKS-20 stain remover PT is intended for treating seeds of grain, leguminous and oil crops with aqueous solutions or suspensions of fungicides in seed preparation workshops or seed stations of agro-industrial complex enterprises.

Management of the work of the etchant and its mechanisms is carried out from the control panel. The pickling agent is installed in the technological line. The peculiarity of the etchant is that it can work with multi-component, more viscous working solutions, thanks to the peristalticpump-dispenser. It is equipped with a low-speed paddle auger with polyurethane pads for working with crops prone to injury. Easy cleaning of the etchant due to quick dismantling of the pickling chamber and blade auger. The main components of the pickling agent are made in a stainless version. The main advantages of the device are: high accuracy of dosing of the set rate when working with both ordinary and multi-component working solutions, easy change of operation using push-button switches with fixation of the result on a special display, absence of self-pouring of solution residues when the etching process is stopped, if necessary, the possibility of returning solution residues from the elements of the hydraulic line to the main tank. A timer is installed on the etchant, which allows you to change the revolutions of the screw.
The machine, working in automatic mode, controls the real-time weight of the seeds with a given time period of checking and, if necessary, changes the supply of the mordant solution.

Productivity, t / h 3-18
Capacity of 2 tanks, l 280
Dispenser feed, l / min 0.1-3.3(//tractor-service.com)
Power consumption, kW 3.0
Overall dimensions in transport position, mm 1610x1390x2400
Mass, kg 230

This system is designed to create a working solution according to the "agronomist's recipe" immediately before entering the etching chamber.
One dosing pump pumps clean water from the main tank, threepumps are intended for supplying various preparations from individual factory packages (canisters).
This machine can be equipped with tension sensors to determine the actual number of seeds that pass through the machine and make adjustments if necessary to supply the working fluid to meet the specified ratio.

Upon ordering the etchant, software is additionally installed for the possibility of operation in the mode of automatic regulation of the supply of working fluid (САРР).
