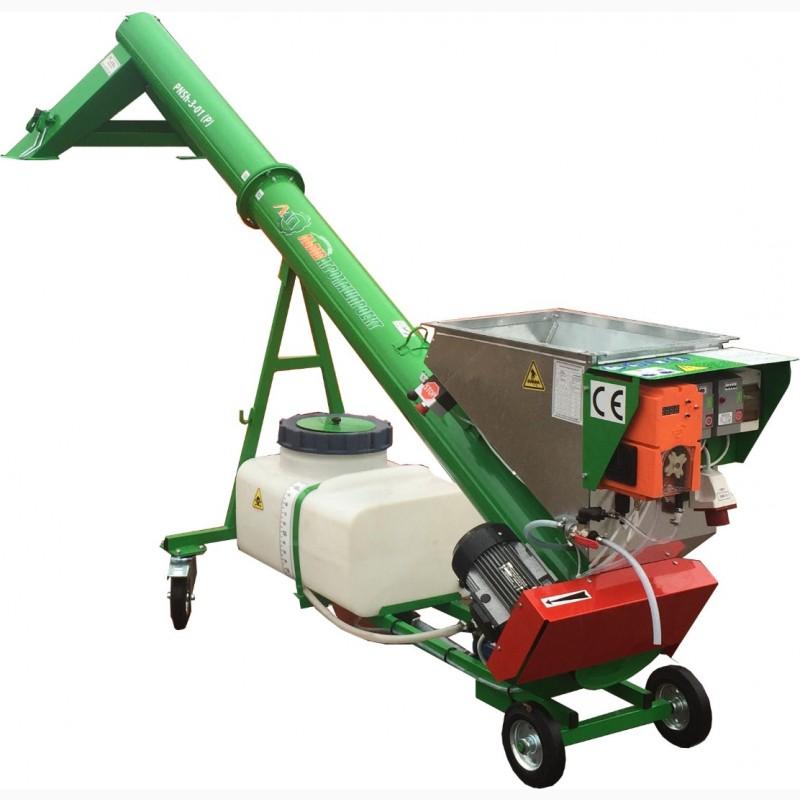

Auger treater PNSh-3-01 "Farmer" for big bags, Lviv region.

Updated version of the PNSh-3 "Farmer" screw picker for unloading pickled seeds into "big-bag" bags.
The mordant is intended for the mortification of cereal seeds with aqueous solutions or mordant suspensions according to the "List of pesticides and agrochemicals permitted for use in Ukraine".

The mordant is a mobile, on fourwheels, unit, which consists of a tank with a hydraulic mixer,a pump a working fluid dispenser, a seed hopper, a seed dispenser, a rubberized auger for working with crops prone to injury with discharge ports and a working fluid dispenser.

Characteristics of PNSh-3-01

Propulsion type

Productivity in 1 hour of the main time (on wheat seeds), t / h ot 1.5 to 3.0

Dry weight (structural), no more, kg 165

Capacity of the working fluid tank, no more, dm3 50
(//tractor-service.com)
Delivery of working fluid by a dispenser, dm3 / min 0.1 - 0.5

Power supply is from an alternating current electrical network, voltage, V 380

Power consumption, kW 1.1

The height of loading seeds into the hopper, no more, mm 1000

The volume of the seed hopper, not less, dm3 60

The height of hanging big-begs to the neck, mm 1400

Overall dimensions, no more, mm 3515 x 205 x 1980

Срок службы, не меженно 5 лет
