Ступиця ріжучого вузла PL-185-M30-R+M30x1.5 FKL, 5554502 Lemken, 55510014 Lemken, Днепропетровская обл.

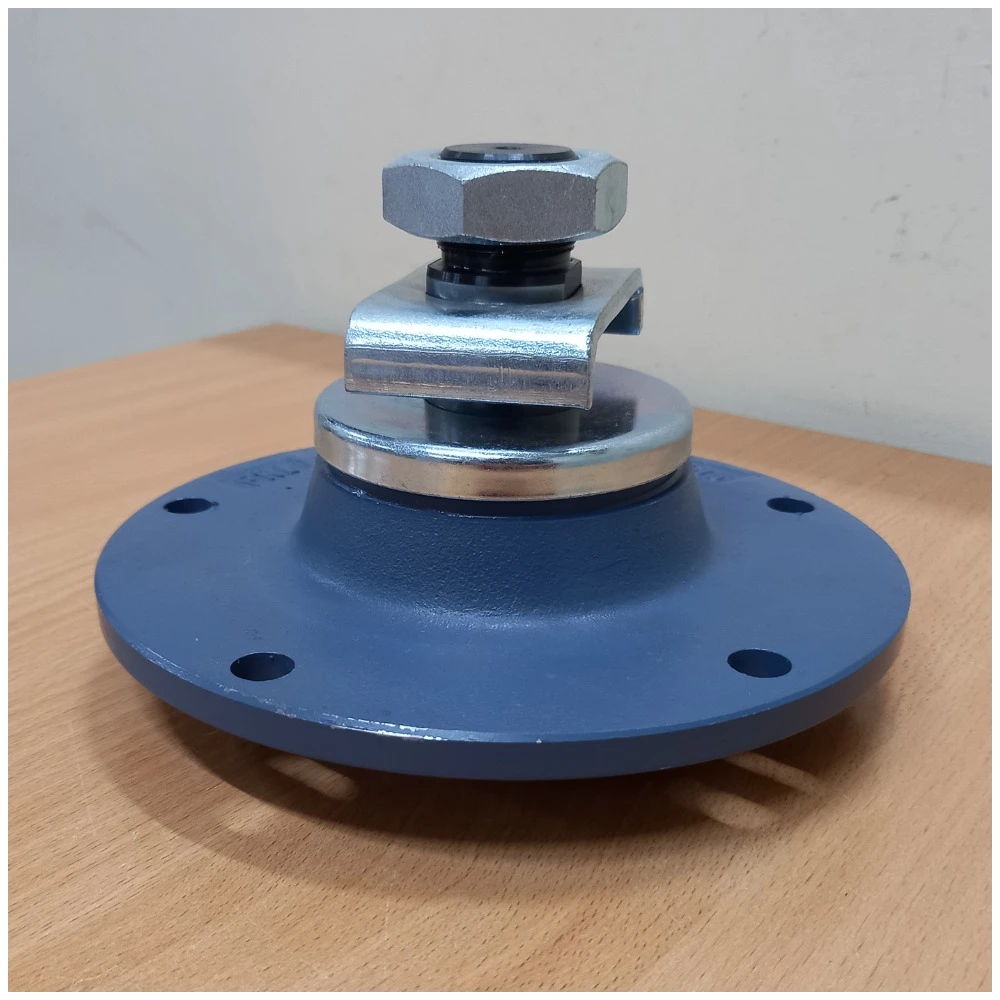

We offer the hub of the cutting unit (right) PL-185-M30-R+M30x1.5 FKL (Serbia).

Field of application - discharrows Lemken Rubin.
OEM: 5554502 Lemken, 55510014 Lemken.
(//tractor-service.com)
Bearing inner diameter - 35, outer diameter - 185, total length - 113, total flange length - 61.6, hole center distance - 160, thread length - 23, weight - 4, dynamic load - 47.4, static load - 38.3.

The PL-185-M30-R+M30x1.5 FKL hub has a unique sealing system, which plays the most important role for operation in extreme environments.
This hub is a complete analogue of the original Lemken hub and has the high quality characteristic of all bearing products of the FKL plant.
As in the original version, the base of the design uses a double-row ball bearing 35/72, which is well known to everyone under the designation 357234А FKL. The bearing is protected by a special cassette seal ST16 45x70x14/17 NAK, which reliably protects it from the external aggressive environment and finely disperseddust.
Operating conditions and recommendations: recommended ambient temperature from -25 C to +55 C,tractor speed 5-15 km/h, disk diameter - 300-800mm, maximum number of disk revolutions - up to 400 revolutions/min, rack thickness at the place of installation of the hub at least 18mm, grease applied for the entire term services.
