Cutting unit hub PL-185-M30-L+M30x1.5-LH FKL. 5554503 Lemken, 55510015 Lemken, Dnepropetrovsk region.

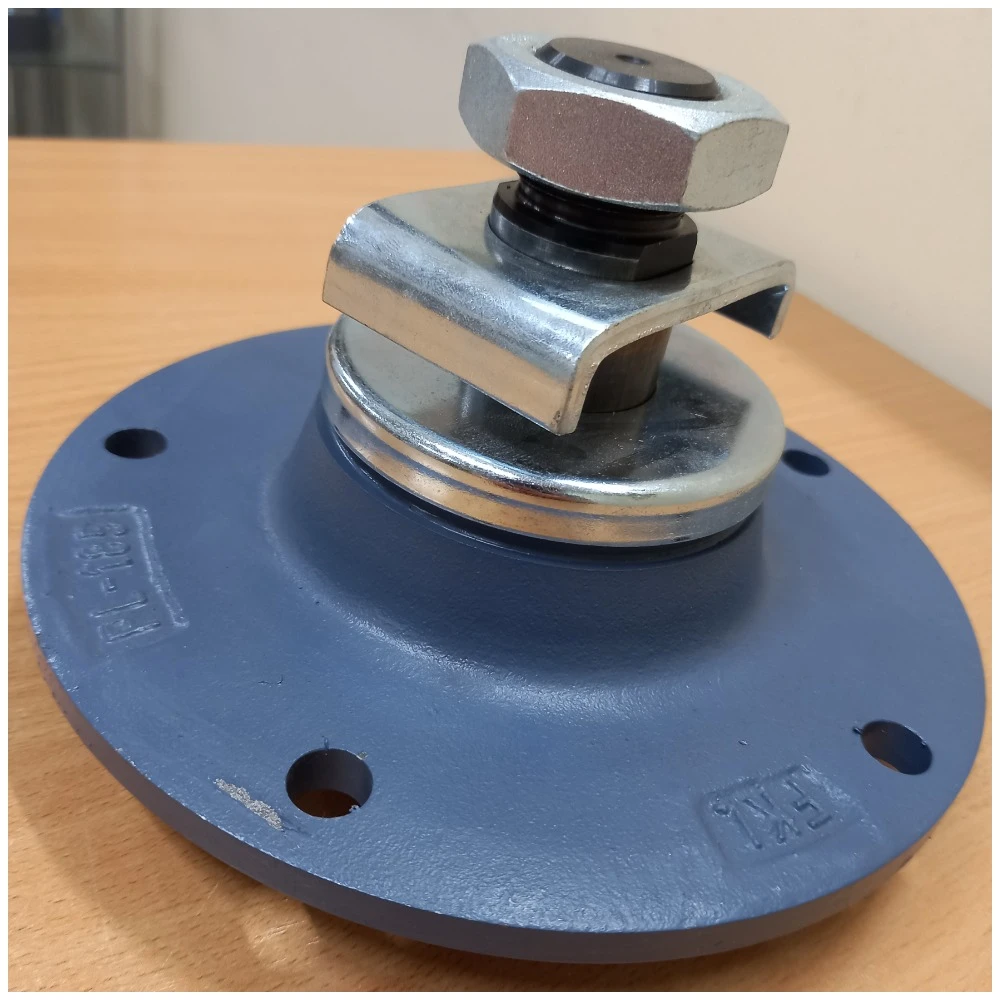

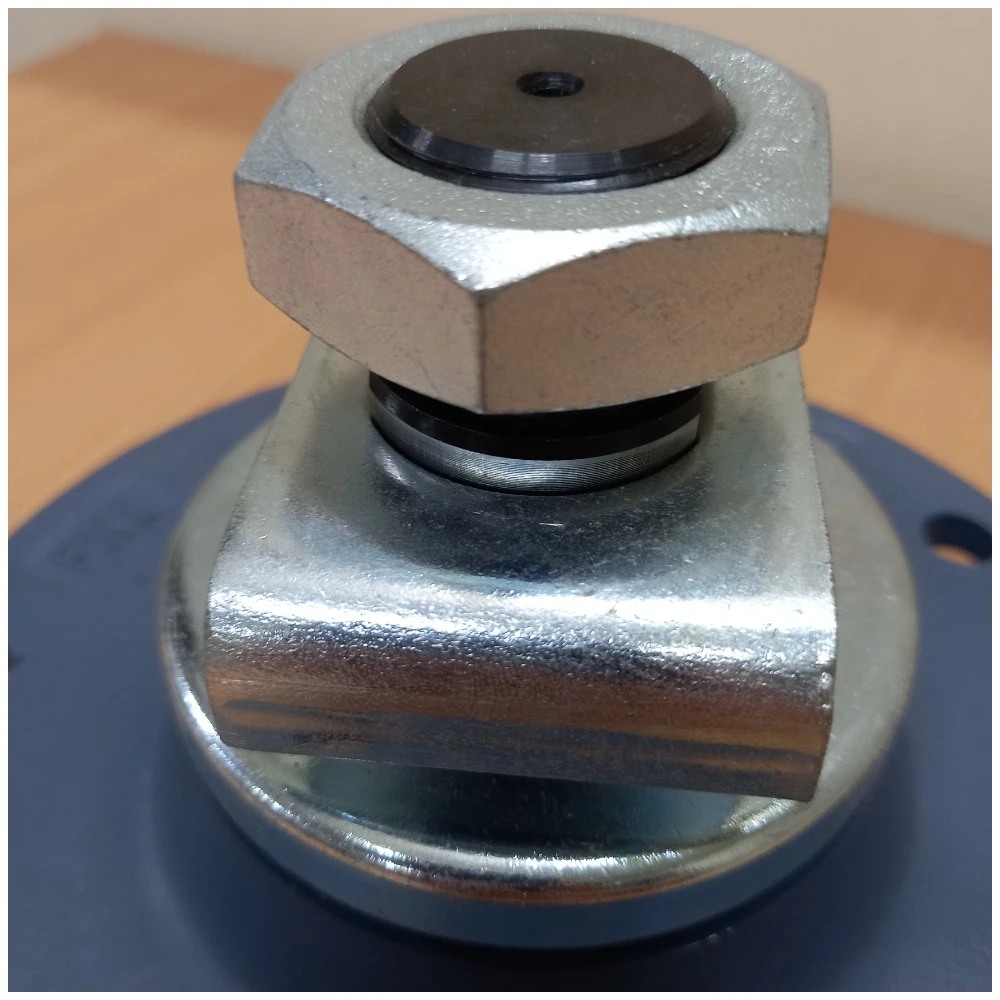

We offer for delivery the hub of the cutting unit (left) PL-185-M30-L+M30х1.5-LH FKL (Serbia).

Field of application: diskLemken harrows Rubin.
OEM: 5554503 Lemken, 55510015 Lemken.
(//tractor-service.com)

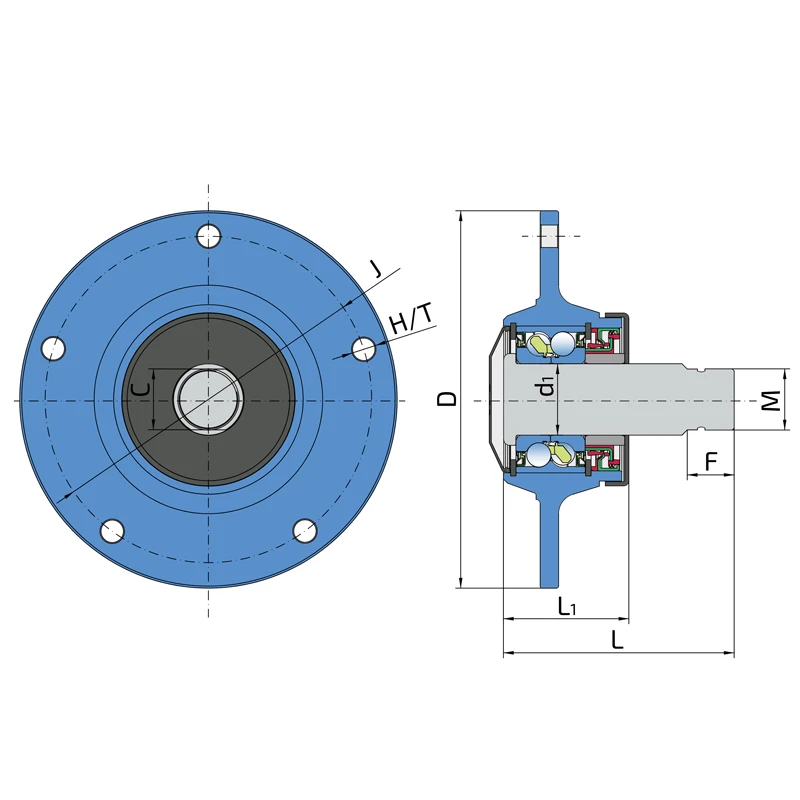

Bearing inner diameter - 35, outer diameter - 185, total length - 113, total flange length - 61.6, hole center distance - 160, thread length - 23, weight - 4, dynamic load - 47.4, static load - 38.3.

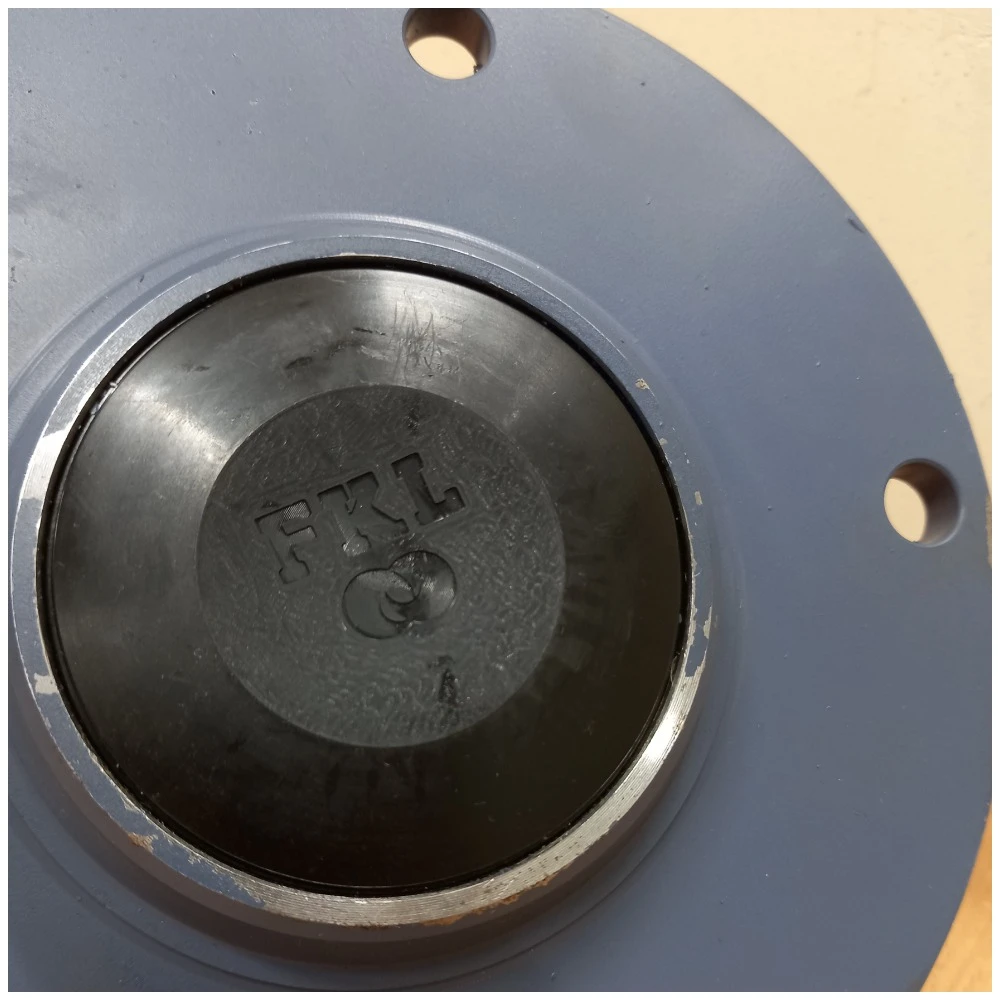

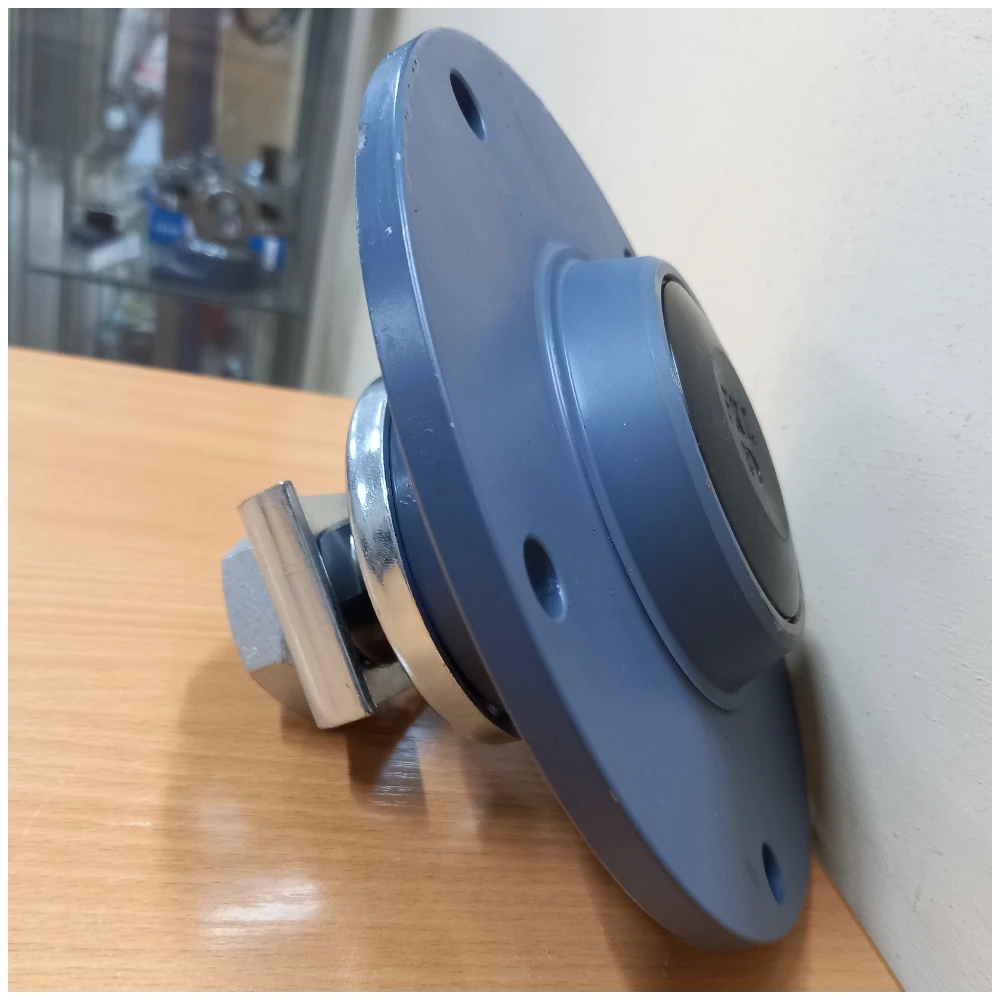

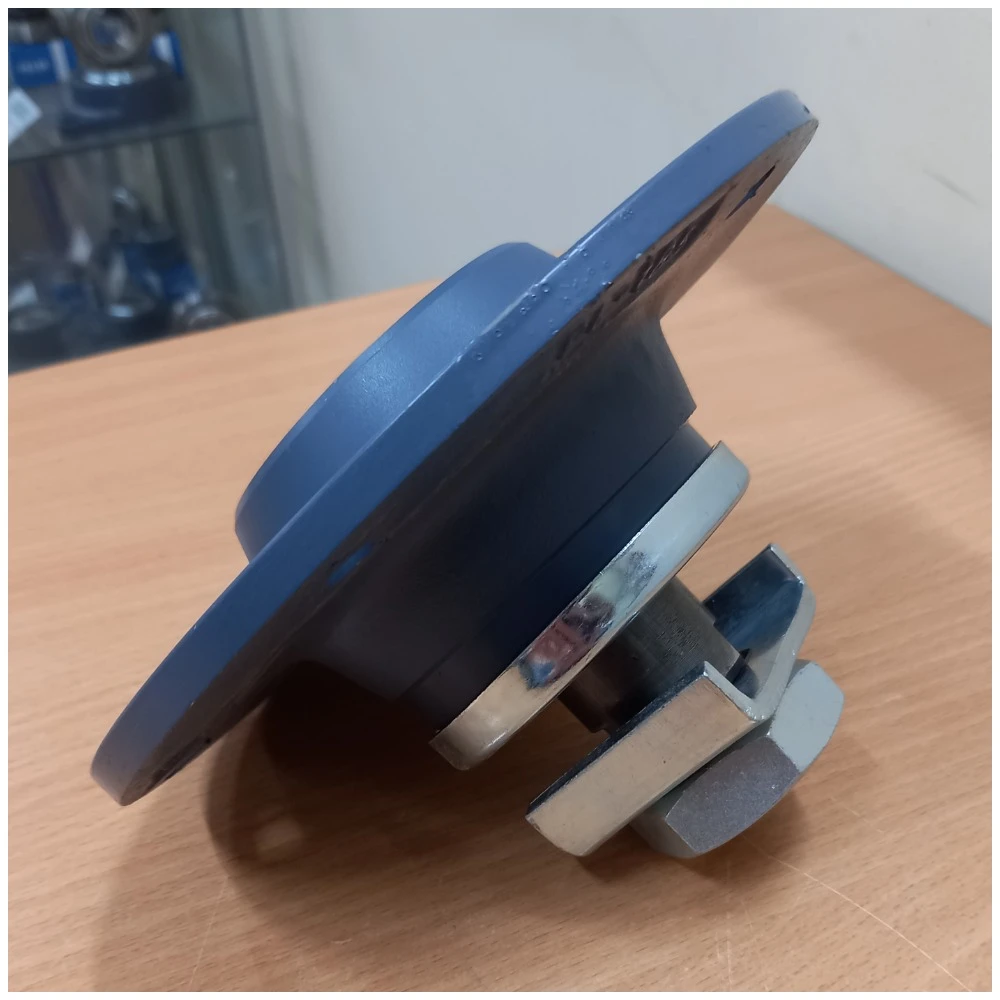

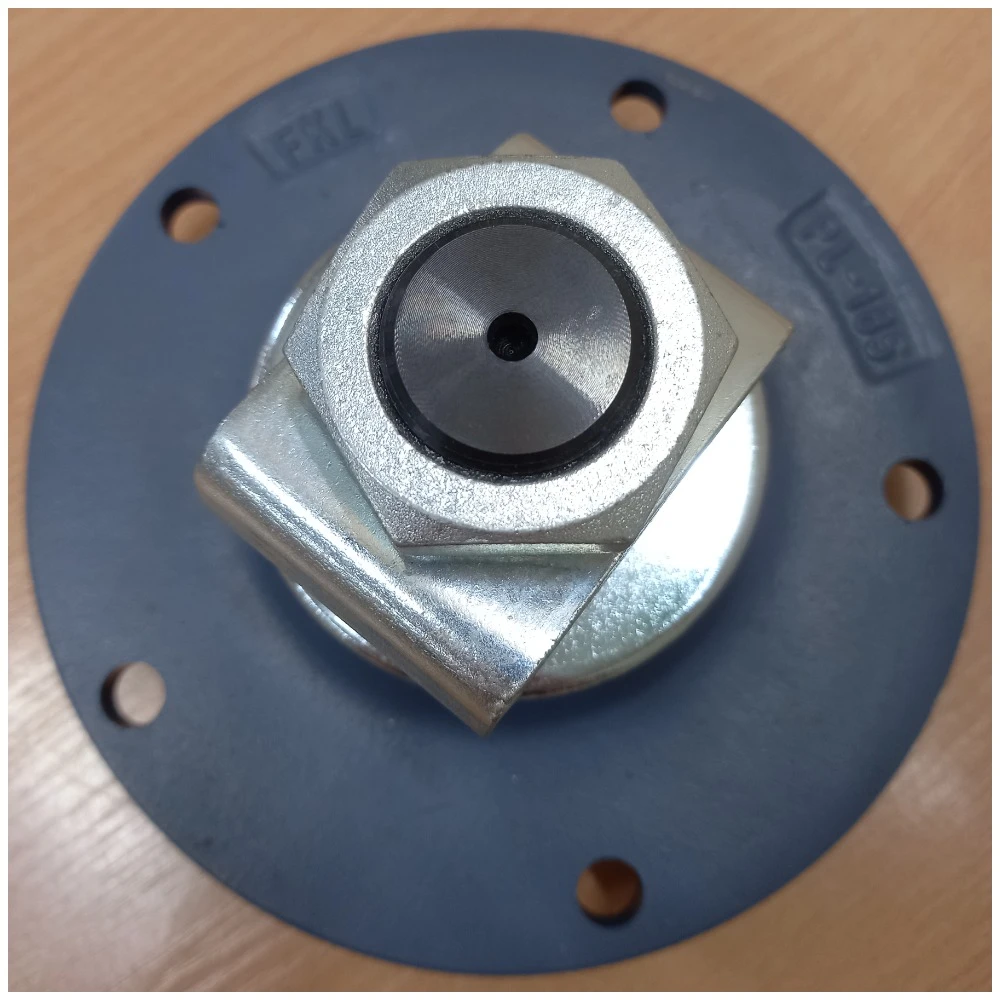

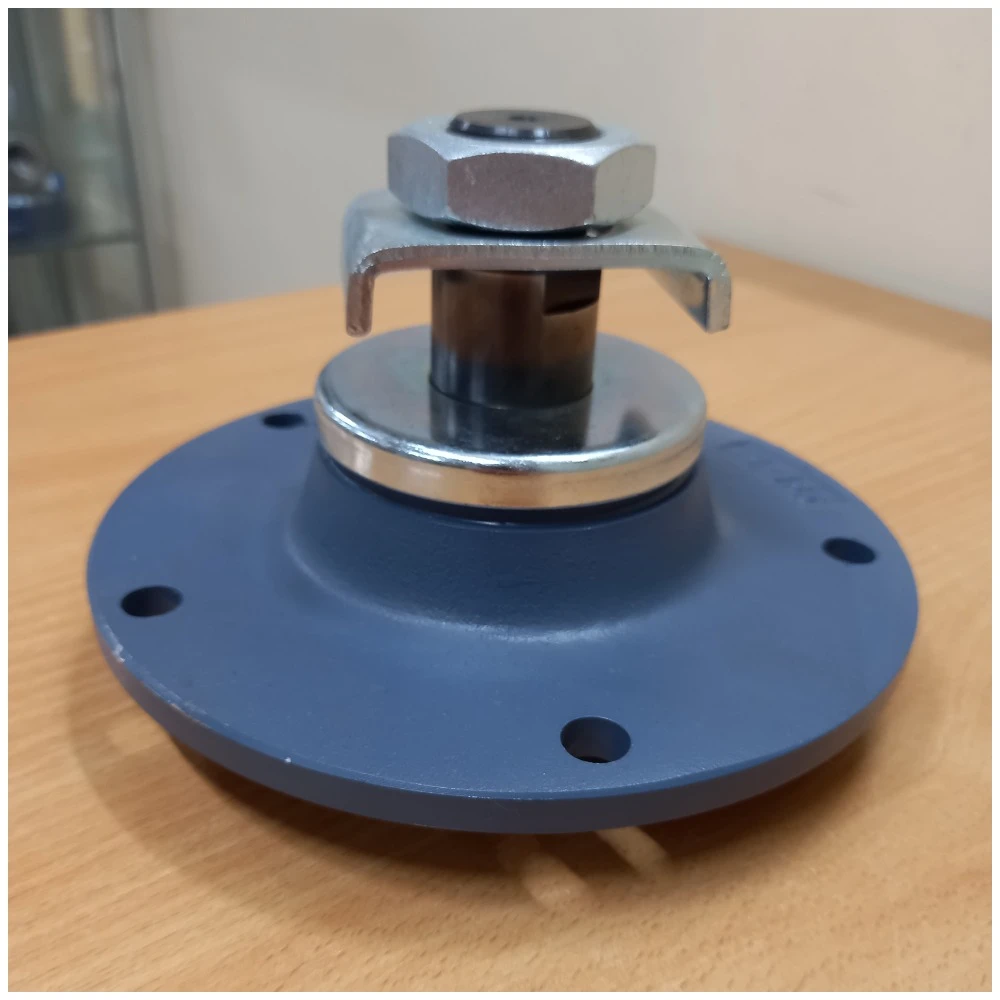

The hub of the cutting unit PL-185-M30-L+M30x1.5-LH FKL is a complete analogue of the original Lemken hub and has the high quality characteristic of all bearing products of the FKL factory.

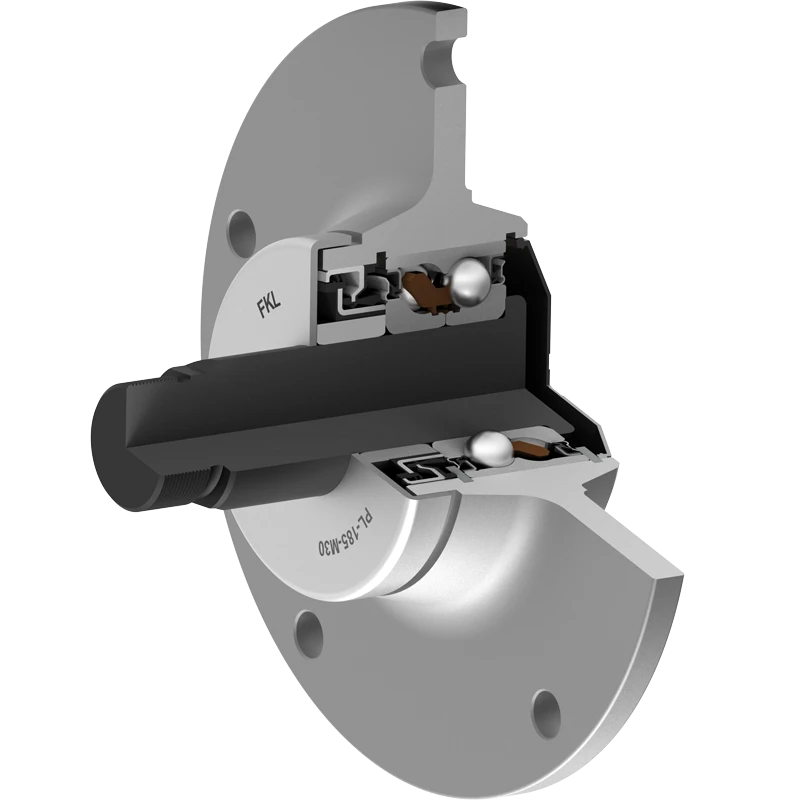

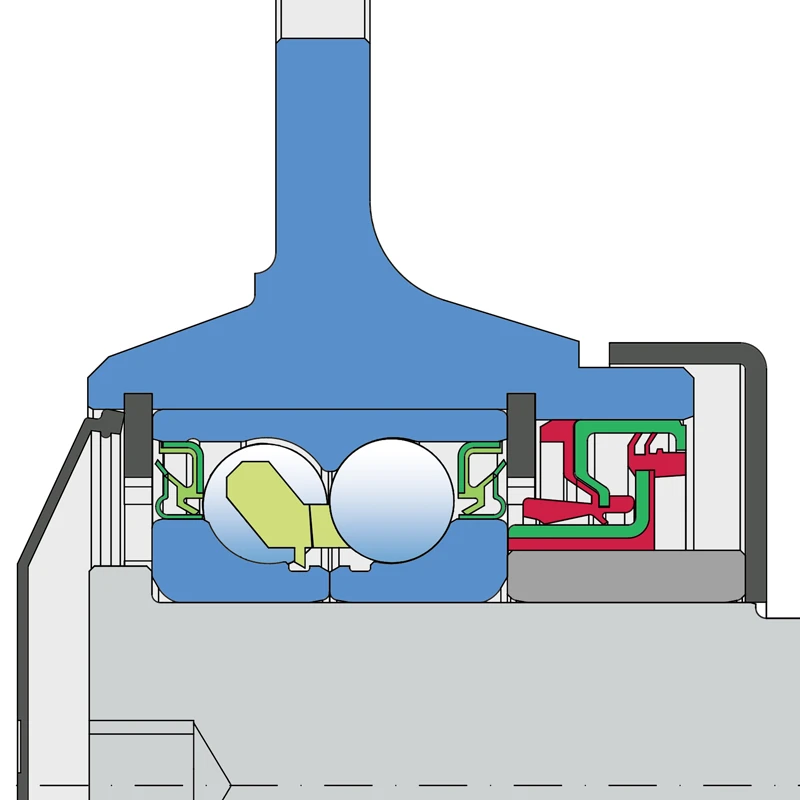

As in the original version, the base of the design uses a double-row ball bearing 35/72, which is well known to everyone under the designation 357234А FKL. The bearing is protected by a special cassette seal ST16 45x70x14/17 NAK, which reliably protects it from an external aggressive environment and finely disperseddust.
Operating conditions and recommendations: recommended ambient temperature from -25 C to +55 C,tractor speed 5-15 km/h, disk diameter - 300-800mm, maximum number of disk revolutions - up to 400 revolutions/min, rack thickness at the place of installation of the hub at least 18mm, grease applied for the entire term services.
