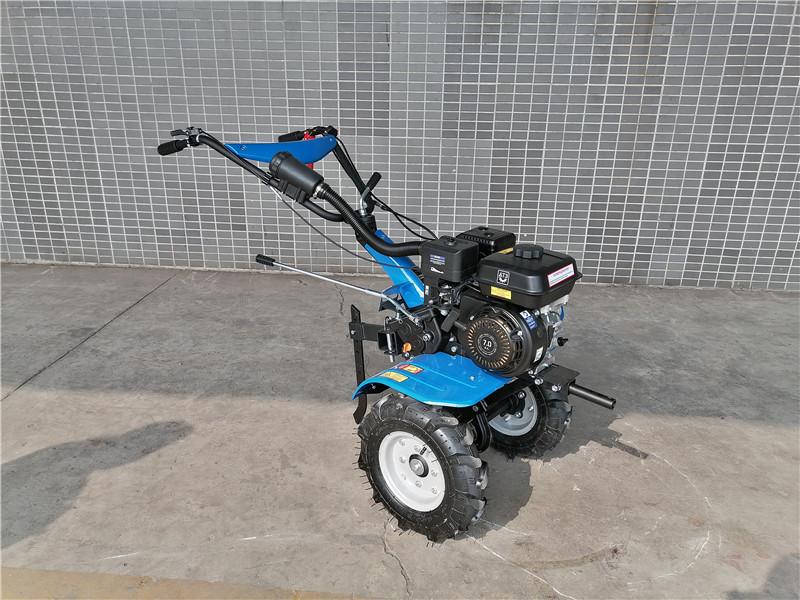

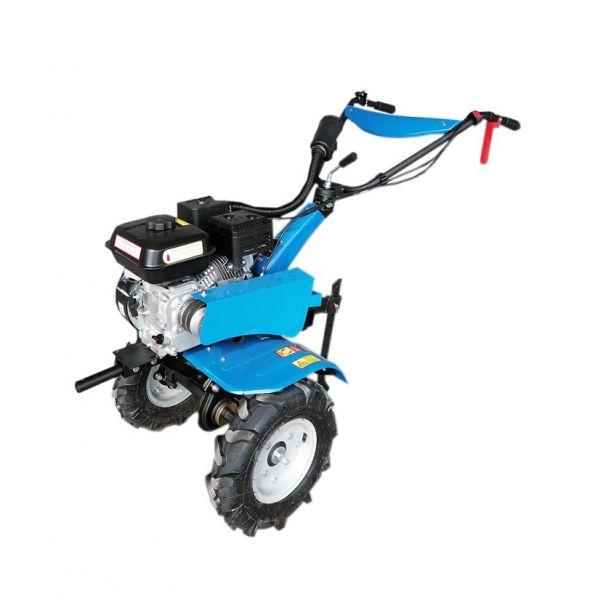

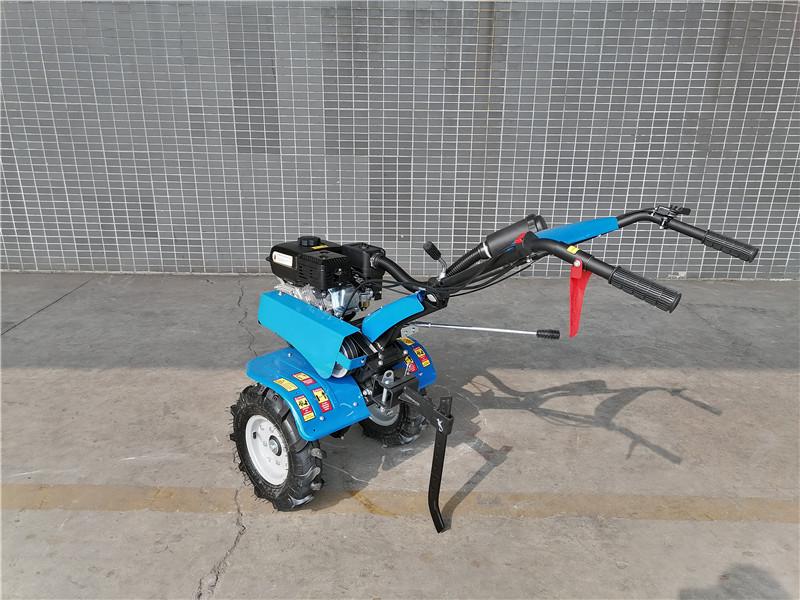

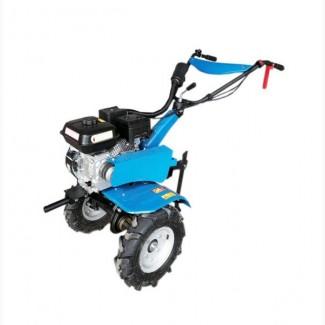

Motoblock DTZ 470BN (gasoline, 7 hp, gears 3/1, wheels 4.00-8)

The 470 BN model is a new product of 2020. It is an analogue of the popular motoblockCentaur MB 40-2.

MAIN DIFFERENCES FROM THE BASE MODEL OF PREVIOUS YEARS:

filter with an air intake placed on the steering wheel (increased engine life)

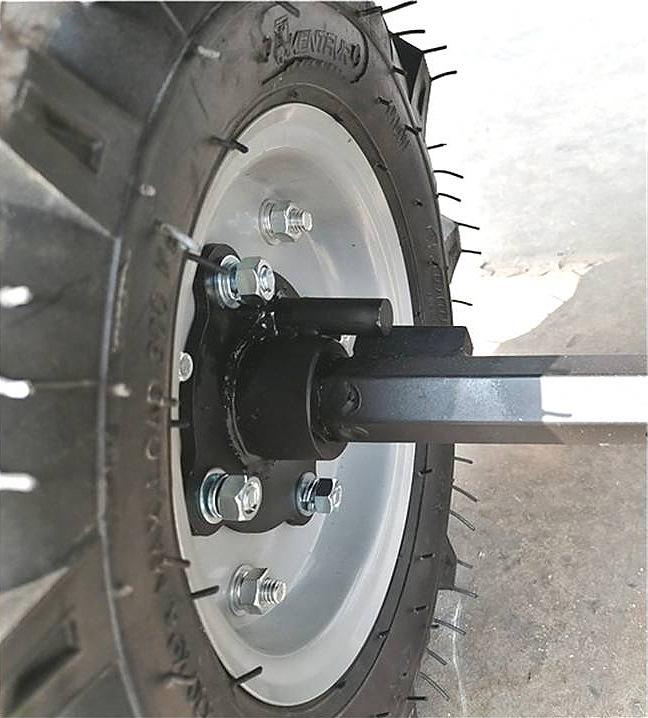

There are wheel unlockers (allows turning on the spot)
3 forward gears / 1 reverse gear

2 YEARS WARRANTY!

The model is equipped with a 4-stroke gasoline engine with a capacity of 7.0 hp, a powerful gearbox with spur gears and a side PTO shaft. It is an analogue of the Centaur MB 40-2 model. A contact-oil type air filter with an oil bath is installed on the engine, which protects the engine even better.

Motoblock DTZ 470BN is a universal agricultural machine for processing territories up to 1.5 ha. With its help, you can do cultivation, plowing, hilling of soil, digging root crops, as well as many other works using the appropriate attached equipment.

Included in the package are:

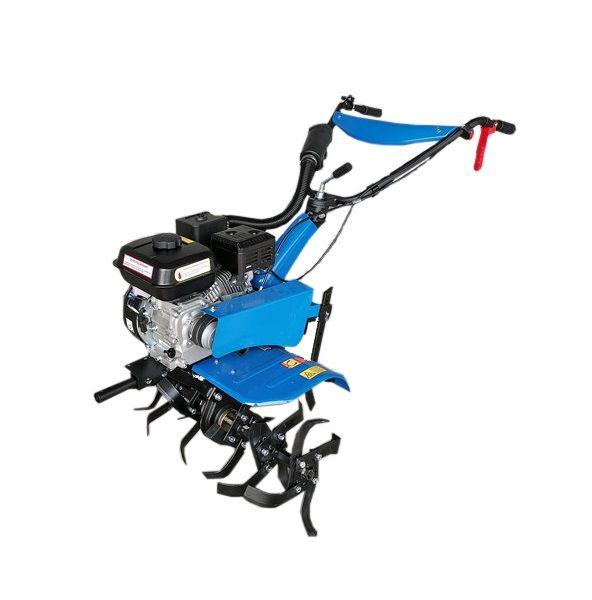

One-piece milling cutter, 3 rows of knives on the right + 3 rows on the left. The thickness of the cutter blades at the base is 6 mm.
Drive wheels 4.00-8
PTO parameters:

Power selection can be carried out through the idle stream of the drive pulley of the engine.
Side PTO: diameter 15 mm; shaft length 75 mm; the length of the slotted part is 30 mm; number of slots 19
Control elements on the steering wheel are made of metal.

At the moment, the DTZ 470BN motoblock is one of the best in the model range of air-cooled gasoline motoblocks.

Characteristics

Engine brand

DB 170F

Engine type

Single-cylinder 4-stroke with air cooling

Fuel type

Gasoline

Maximum power, hp (kW)

7.0 (5.2)

Cylinder diameter / Piston stroke, mm.

70 / 54

Engine volume, cm3.

207

Starting system

Manual starter

Lubrication system

Spraying

Clutch

V-belt transmission with controlled pressure roller

Steering control

Height adjustable

Fuel tank volume, l.

3.6

Number of gears: forward

back

3

1

The volume of oil in the engine crankcase, l.

0.6

The volume of oil in the gear case, l.

1,2

Track, mm.

380

The drive shaft of the reducer on the milling machine.

Hexagon 23 mm.

Milling width, mm.

810

Depth of tillage, mm.

150...300

Cutter rotor diameter, mm.

360

Packaged dimensions LxWxH, mm.

750 x 380 x 860

Assembled dimensions LxWxH, mm.

1550 x 550 x 870

Gross weight, kg.

73.5
(//tractor-service.com)
Weight as a whole (without fuel in the tank), kg.

86

Motoblock DTZ 470BN

New design and paint scheme. Steering wheel turning mechanism.Transport wheels 4.00-8 in a set.

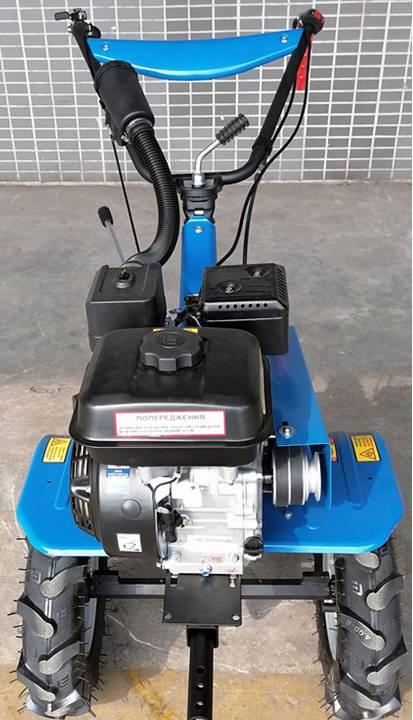

Air filter with an air intake placed on the steering wheel. 2 drive belts covered with a metal casing

Free drive pulley stream and front bracket for connecting active towing equipment. Protective casing on the muffler.

3-speed gear transmission with a chain drive of the cutter. A 3.7-liter fuel tank with inlet and outlet screens and a maximum fuel level indicator.

Tiller (1+2)+(2+1) processing width 570, 810 mm, Reinforced fastening of knives. Rigid brackets of protective wings. Protection of bearings from dust

The new safety arc is painted in the color of the tractor. New clutch lever of bright color and ergonomic shape. Gas lever with locking ram. Comfortable and soft handles on the steering wheel

Overtaking unlockers on wheel hubs

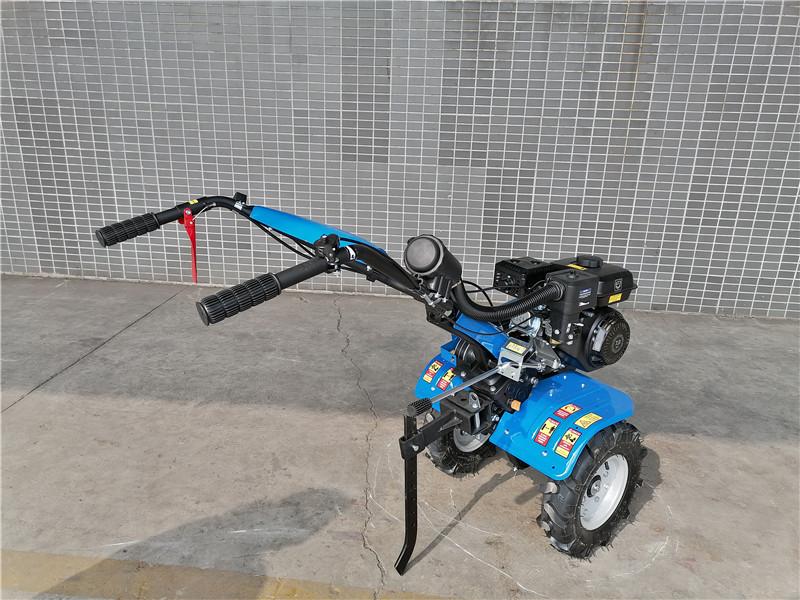

Monobloc type trailing device with processing depth limiter.

General features of TM "DTZ" walk-behind tractors

"DTZ" motoblocks are included in the premium segment of agricultural machines of this class in terms of manufacturing quality, reliability, equipment and equipment and are significantly superior to motoblocks of other brands. Confirmation of reliability is the manufacturer's extended 2-year warranty for all models of walk-behind tractors of this line. These walk-behind tractors are the most convenient and safest for the operator, distinguished by well-thought-out ergonomics of controls, ease of operation and maintenance. Aesthetics have not been forgotten either - the new shape of the wings, the elegant curve of the steering wheel handles, the smooth lines of the steering column cover and the protective cover in combination with the strong, bright-colored paintwork are frankly pleasing to the eye.

All DTZ walk-behind tractors have a 3-speed gearbox, not a 2-speed one, as on walk-behind tractors of other brands. An additional reduced gear provides ideal movement speed for planting and harvesting with precision and accuracy unattainable for other walk-behind tractors. In addition, the reduced speed provides additional comfort to the operator: in the process of work, you can calmly walk at a leisurely pace, and not run after the walk-behind tractor across the field.

Another important difference is the presence of overtaking unlockers on the transport wheels, which greatly facilitate the turning and turning of the walk-behind tractor, giving the opportunitywheels to rotate at different speeds when turning, i.e. acting as a differential.

Description and brief characteristics

The DTZ 470BN model is equipped with a 4-stroke gasoline engine with a power of 7 hp, a powerful gearbox and a chain drive of the cutter. The engine is equipped with an intake air filtration system with a remote air intake on the steering wheel, which improves the protection of the engine from abrasive particles in the air.

The delivery set includes:

Collapsible cutter: (2+1) rows of knives on the right + (2+1) rows on the left. The thickness of the cutter knives at the base is 6 mm.
Transport wheels 4.00-8

Connecting an active pendant :

With the help of the idle stream on the drive pulley of the engine.

The DTZ 470BN motoblock is one of the most high-quality and convenient models of motoblocks in this class.

Characteristics of DTZ 470BN motoblock

Type

Gasoline with air cooling

Engine

Single-cylinder four-stroke

Maximum power, hp/kW

7.0/5.2

Engine starting system

Manual starter

Number of forward/backward gears

3/1

Drive from the engine to the transmission

V-belt transmission, two passes

Clutch

Belt tension

Fuel tank volume, l

3.7

Nominal fuel consumption, g/kW*h

374

Cutter reducer

Geared with chain transmission

The number of cutter sections

6=(1+2)+(2+1)

Cutter grip width, mm

570, 810

Cutter rotor diameter, mm

350

Cultivation depth, mm

to 200

The maximum frequency of rotation of the cutter, rev/min.

40; 80; 107

Transport wheels

Pneumatic, 4.00-8 "herringbone"

Estimated maximum speed on wheels, km/h

Forward 2.9; 5.7; 7.8 / back 5.1

Overall dimensions (LxWxH), mm

1500x650x760

Equipped weight on wheels/ on the cutter, kg

66 / 71
