ZSW carrot soaking bunker (bubble washer), Kyiv

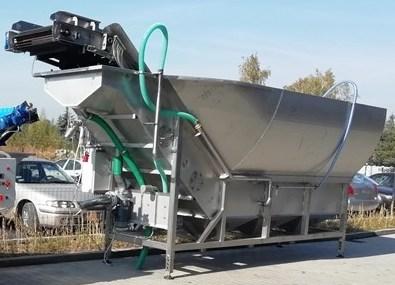

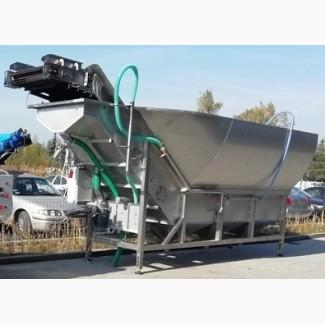

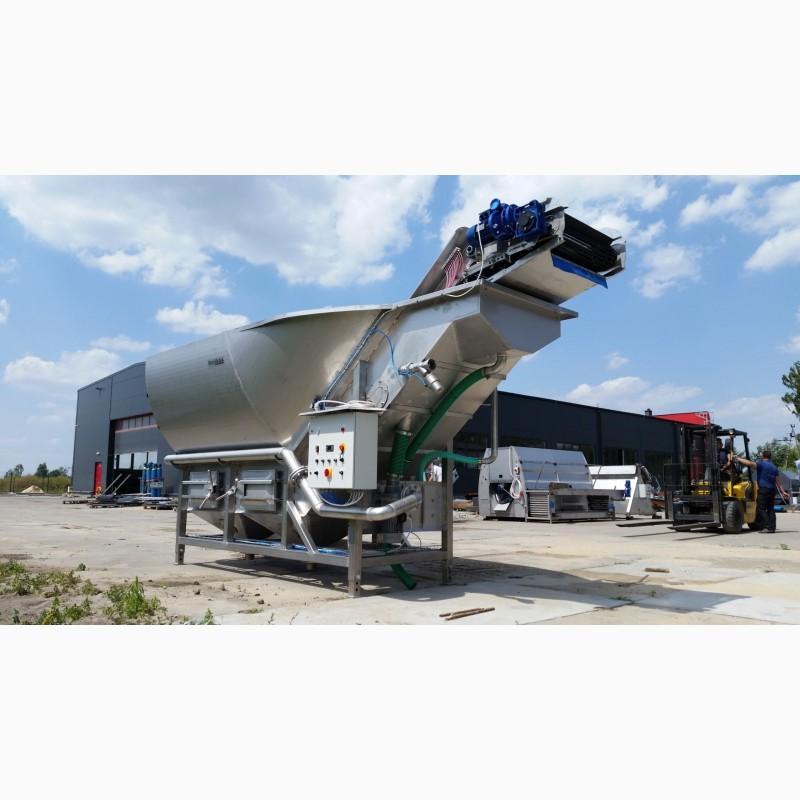

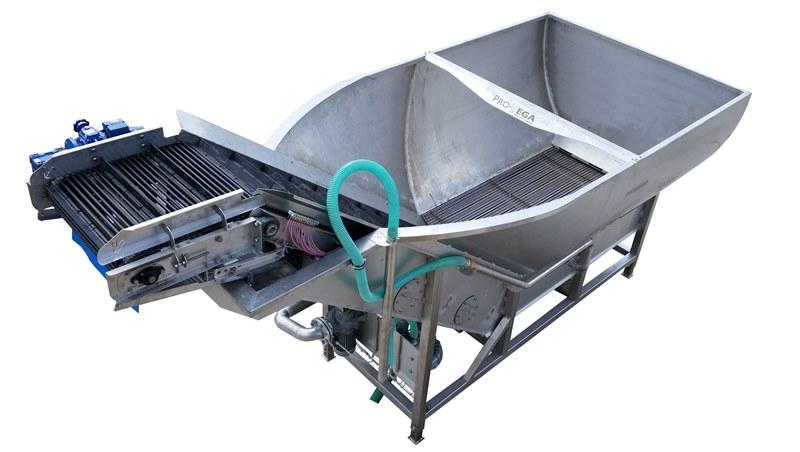

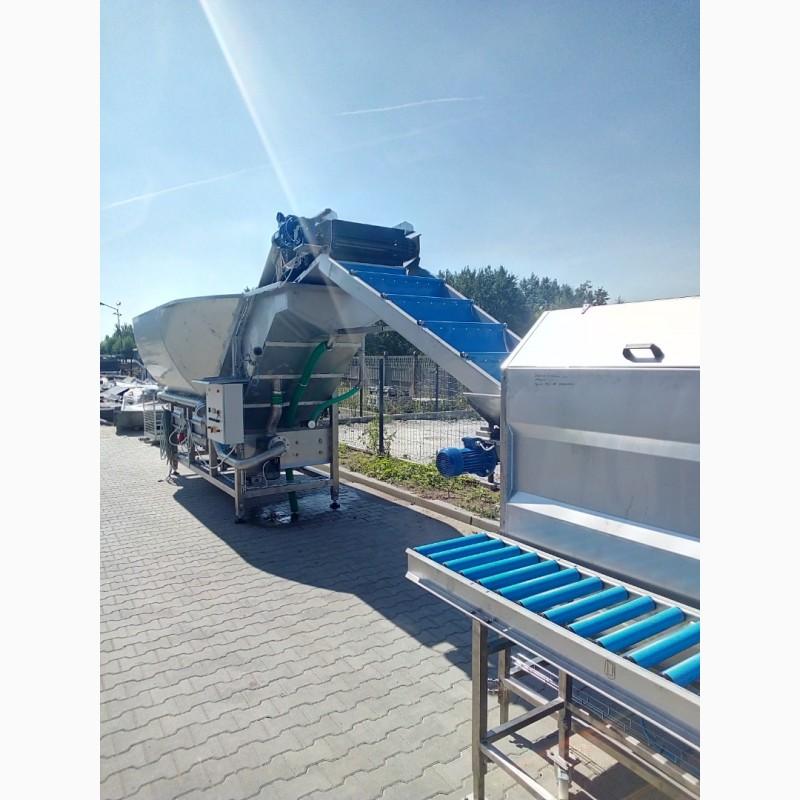

The ZSW soaking hopper is designed for preliminary washing of root crops such as carrots,parsley,celery, beets andpotatoes.

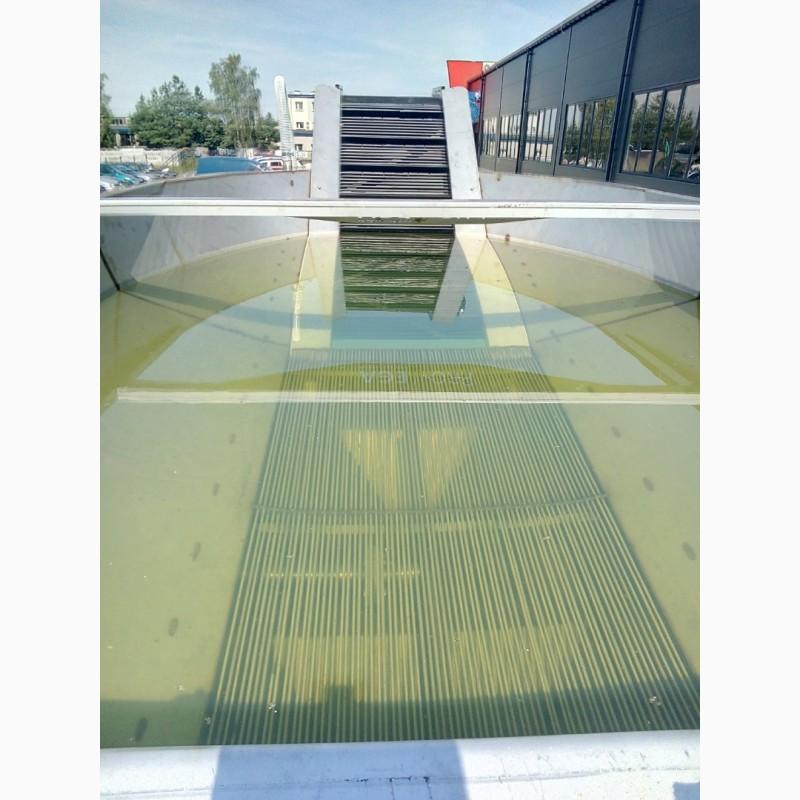

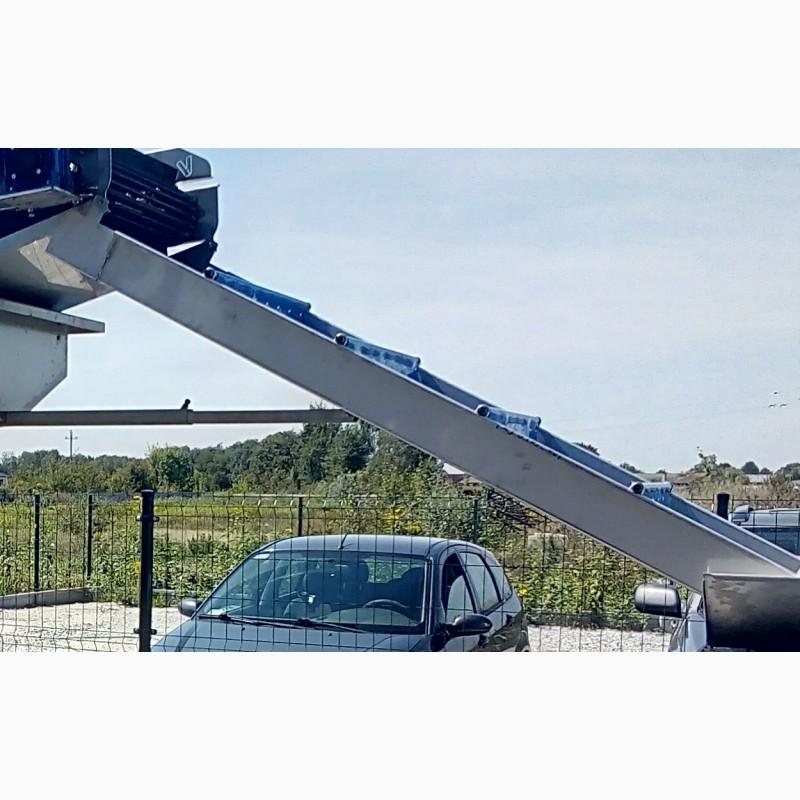

The design of the device allows for continuous washing, as well as in the system of cyclic loading. Directly dropping fruits into a tank filled with water reduces the risk of fruit damage. A strong flow of air is fed directly into the tank, causing "bubble" and friction of vegetables, which ensures high efficiency of soaking very dirty root crops. Inside the tank there is a conveyor with a core belt for transportation to the subsequent equipment.

Type ZSW-2230
The capacity of the washing chamber, m3 9.5
Width of the washing chamber [mm] 2200(//tractor-service.com)
The length of the washing chamber [mm] 3000
Number of downspouts [pieces] 3
Loading height (min.) [mm] 2500
Unloading height (min.) [mm] 2900
Height adjustment range [mm] +250
Installed power [kW] 8.1
Compressed air is required + +
