MTZ tractor air conditioner set 1221.1, 1523, 2022 with D-260 engine, Kharkiv region.

Air conditioner kittractor MTZ 1221.1, 1523, 2022.

This air conditioner is intended for creating comfortable climatic conditions in the cabin of tractors of the Minsk Tractor Plant 1221, 1523, 2022 with the D-260 engine (and its modifications).

The air conditioner is designed taking into account all the design features of MTZ technology, which greatly simplifies its installation. The air conditioner kit includes all consumables necessary for installation.

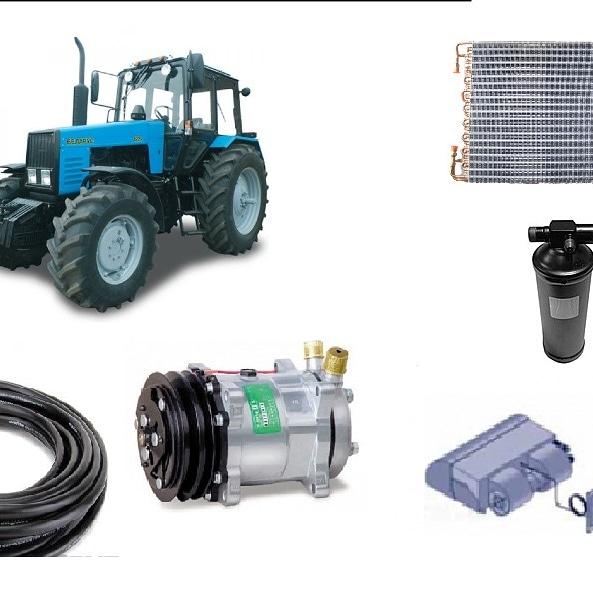

Completeness of our air conditioner kit:

Compressor SD5S14; "Sanden" Singapore;
Type - piston, with vertical fittings outlet-3/4-16UNF(O-ring) inlet-7/8-14UNF(O-ring); Number of cylinders - 5 pcs.; The power supply voltage of the electromagnetic clutch is 12V; Drive pulley - 132mm. A2; Belt type - wedge. The length of the belt is 1700 mm; section A. The drive of the compressor is carried out from the pulley of the crankshaft of the engine, on which there is a free stream under the V-belt.

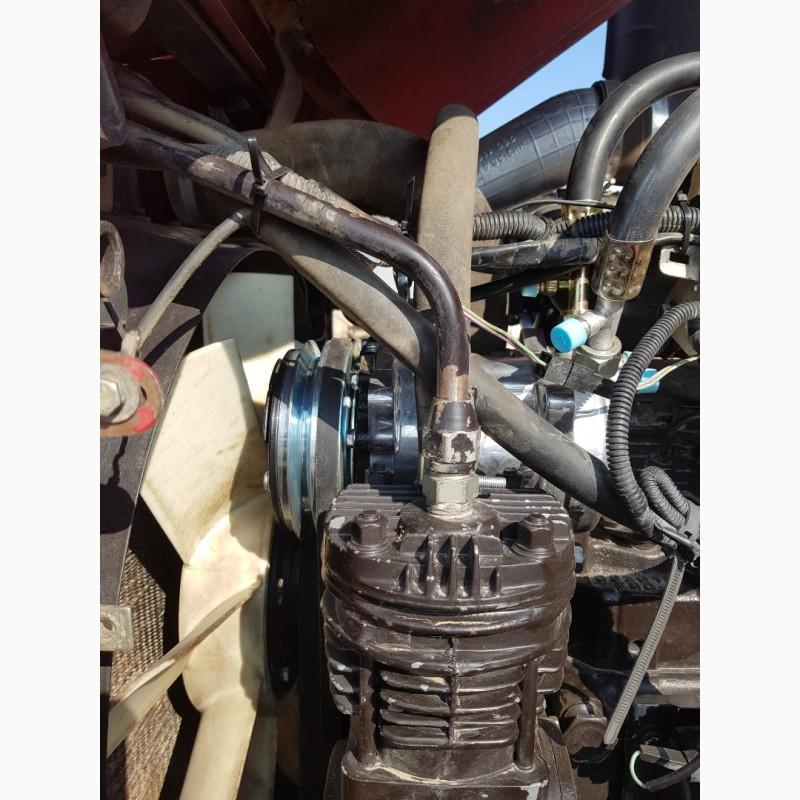

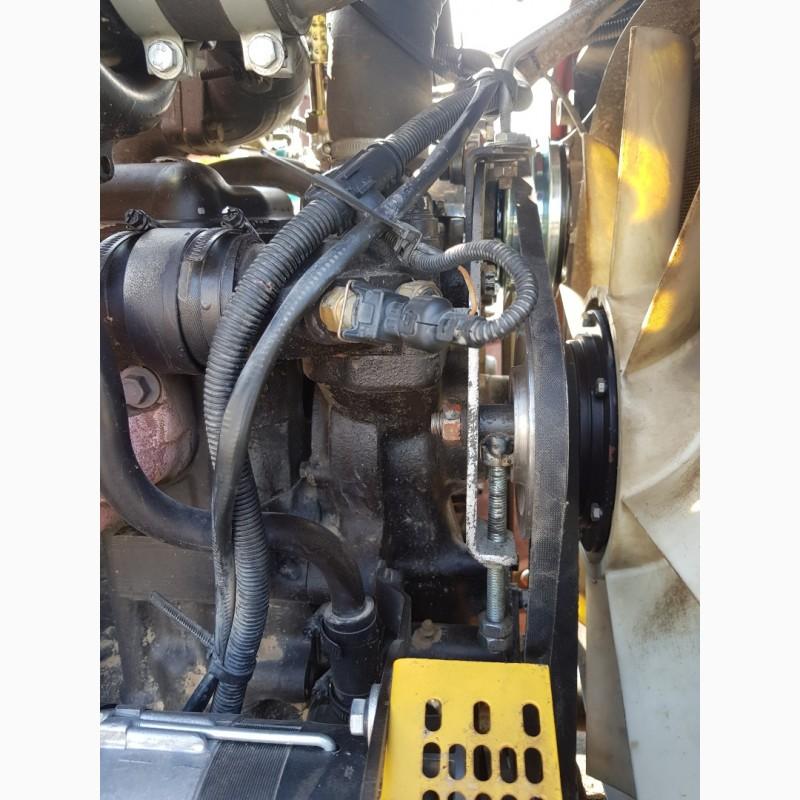

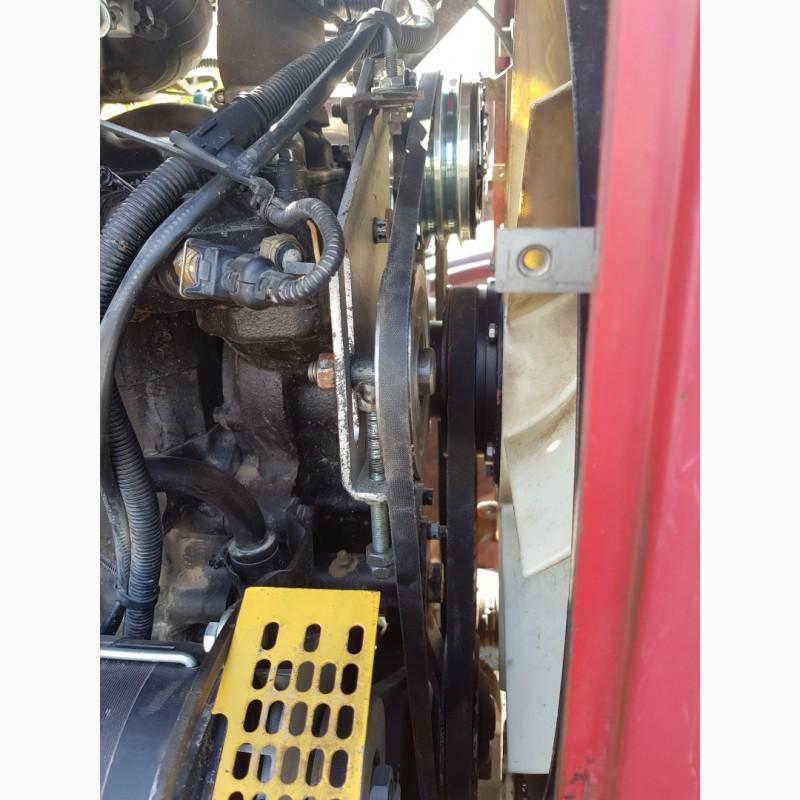

The compressor is installed on the running engine of the tractor on the left in the direction of movement of the tractor and is driven by a V-belt. The compressor bracket is specially designed for the Mmz D-260 engine.

Evaporative heating block of increased power Formula King.(//tractor-service.com)
With decorative "bread box" panel, 12V fan, thermostat, TRV, fan speed switch (3 speeds), input 5/8-18 UNF (O-ring), output 7/8-14 UNF(O-ring); Overall dimensions (WxDxH) - 450x320x150 mm;
Cooling capacity - 5.5 kW; Power supply - 12V.

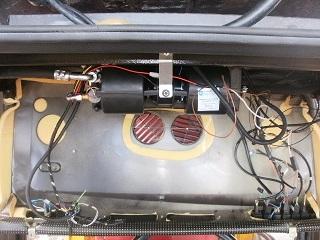

The evaporative heating unit is installed under the ceiling panel, instead of the standard heater. Air conditioner controls are placed on the ceiling panel in a separate control unit.
Capacitor:

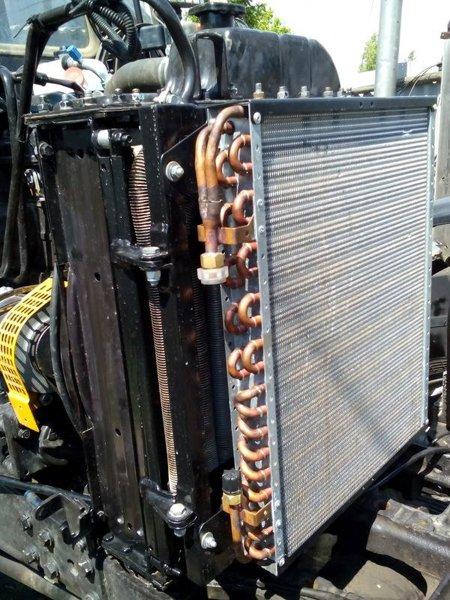

Copper is installed in front of the main radiator of the engine. It has thick tubes, which allows you to easily service the radiator by "blowing with compressed air". Does not create engine overheating!
Filter-drier
With pressure sensor assembly:
incl. compressor -> 2 kg/cm2; Off compressor -> 32 kg/cm2;
A set of cooling wires (4hose);
Wiring kit for aftermarket installation;
Compressor mounting bracket

Options for installation and equipment of the air conditioner can be changed at the request of the customer. В наличии подкапотные и на крышные комплекты.
