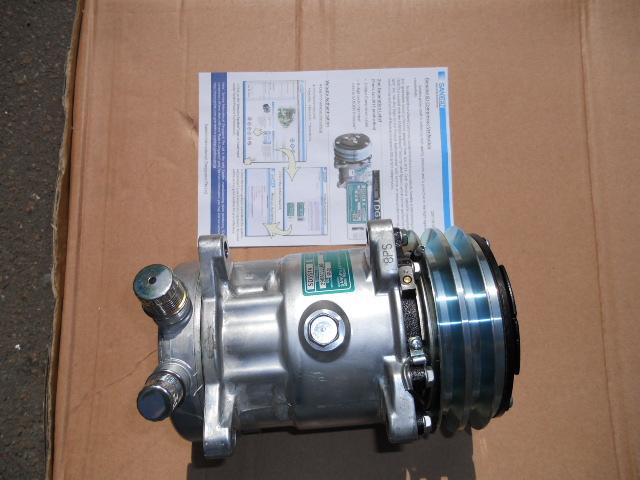

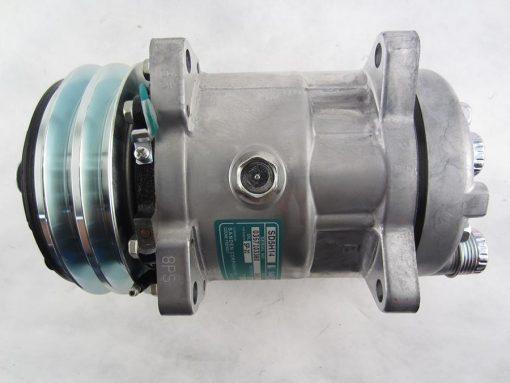

Compressor SD5S14 24 V. pulley A2 for tractor, harvester, Kharkiv region.

Compressor SD5S14, 24B, A2, K - vertical outputs Original Singapore.

Auto-conditioners are used.

Interchangeable with all analogues and original Sanden SD5H14 6634, Dyne 5H14, Terra Frigo TF5H14, Motorcool RC-U0826 5H14, Yug Frost YF5H14 and Valeo TM13 compressors.

Model SD5S14.

Power supply voltage of electromagnetic coupling 24B.
5-piston. Productivity 138 cm³/rev
Material of piston compression rings: steel
The diameter of the pulley is 132 mm. Pulley A2 (for 1 or 2 V-belts AX13).
Refrigerant type R134a.(//tractor-service.com)
Oil PAG SP-20 (or similar), volume not less than 180 cm³ (depending on the type of refrigeration unit).
The maximum permissible speed of rotation of the compressor shaft, rpm 6000
The maximum continuous speed of rotation of the compressor shaft, rpm 4000
The distance between the fastening "ears" of the SD5S14 compressor is 83.3 mm.
The back cover of the compressor:

Type K - vertical outlets for fittings with O'Ring: high pressure (discharge) HP - nut 3/4', fitting #8 1/2' (10mm), low pressure (suction) LP - nut 7/8', fitting #10 5/8' (13mm).
Without gas stations.
Attention! This type of compressor requires a mandatory oil change before installation. It is supplied filled with transport oilPAG PAG, which must be replaced with compressor oil PAG SP-20 (or similar) and in the amount required for this refrigeration unit, but not less than 180 ml. Also, when replacing the compressor, it is necessary to replace the filter-drier, oil separator and wash the TRV network. In case of destruction (gray metallic oil) or overheating (black oil) of the old compressor, a full flushing of the refrigeration unit is mandatory before installing a new compressor.

Package sizes, mm 285x210x205
Weight, net, kg 7.2
Country of manufacture: Singapure SD5S14
