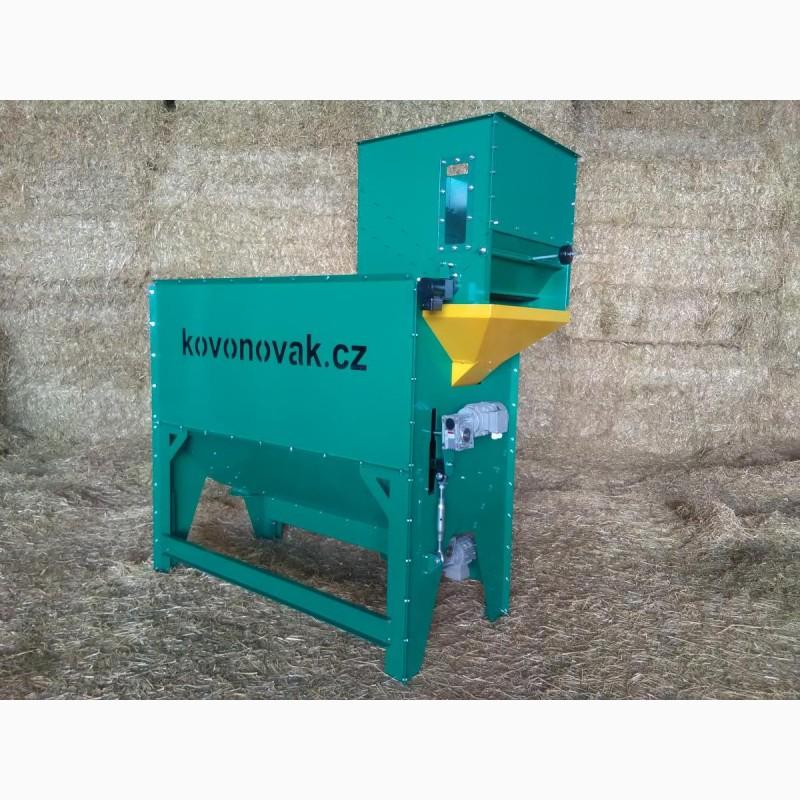

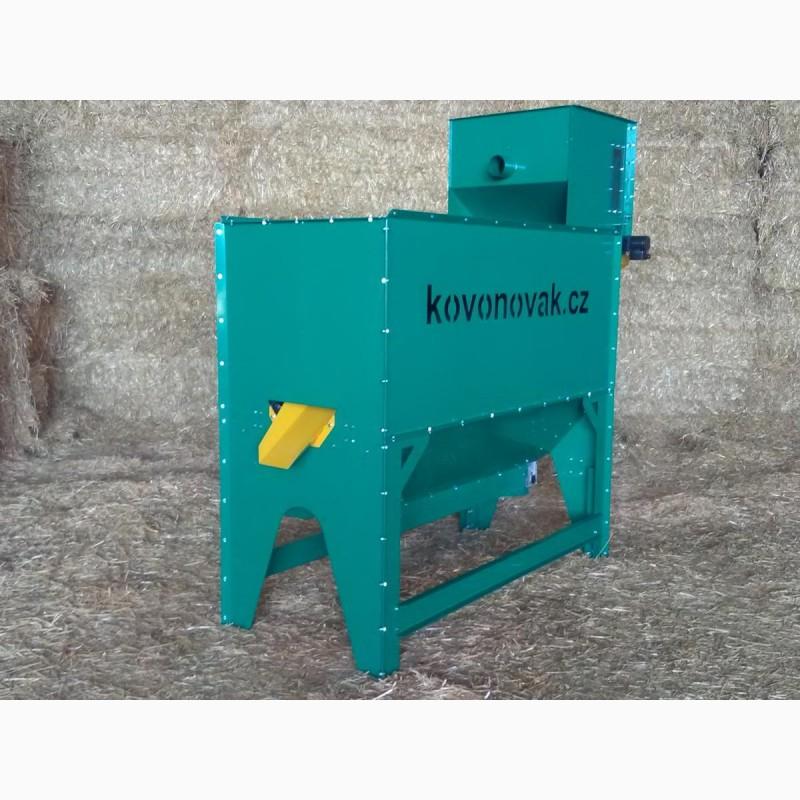

TNO 20 grain cleaner
It reliably and quickly pre-cleans wheat, barley, rye, oats,
corn, peas, beans, etc.
The main advantages of the plant are:
- there are no vibrating parts that reduce the service life of the structure and the service life of the machine, such as sieves, table cleaners or plates.
- the machine can be used as a cleaning plant (calibration, sorting) with a capacity of up to 3 tons/hour and as a preliminary cleaning plant with a capacity of up to 20 tons/hour.
- excellent four-phase cleaning - where dust, husks and small debris are removed before entering the cleaning screens (at the first stage).
- thanks to the light construction (the installation weighs only 385 kg) and a very small installation area (only 950 x 2400 mm), the installation is easy to move and install
- stepless supply of material through the scrubber, tilt of the sieve and stepless adjustment of the speed of the sieve, so that everything is perfectly adapted to your requirements and the characteristics of the cleaned material.
- low energy consumption, only 0.9 kW / hour.
- ease of use and quick setup.
- 100% active cleaning of the screen over the entire area so that it is not blocked and the cleaning efficiency decreases.
- the cleaner has its own accumulative hopper with precise, smoothly adjustable dosing of the cleaned material into the cleaning sieves !!!!
Technical characteristics
Productivity of preliminary cleaning: 15-20 t/h.
(//tractor-service.com)
Throughput for gentle cleaning: 2-3 t/h.
Weight: 385 kg.
Width: 2400mm.
Height: 950 mm.
Length: 2400 mm.
Hopper height: 2320 mm.
The sieves supplied as standard are for
wheat, barley, rye, oats: 2.5x20, Ø 12.
Sieve diameter: 600mm.
Screen speed, rpm: smoothly adjustable.
Power consumption: 0.9 kW.
Electrical connection: 3P+PE+N 50Hz 400V / TN-S.
Supply of material to the hopper - as necessary: 100 - 220 mm.
Price on EXW terms
warehouse Kharkiv (Ukraine): 8950 EUR
Price on conditions FCA warehouse Znojmo (Czech Republic): 6300 EUR
