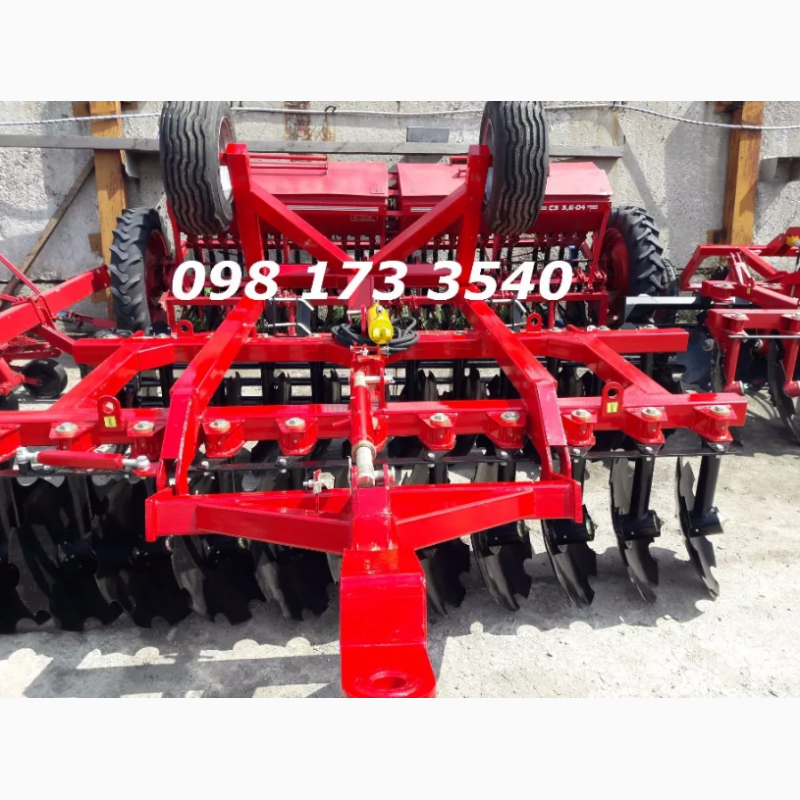

Trailed disc harrow BPD 3200 (560 mm discs), Dnipropetrovsk region.

New trailer for saledisc harrow harrowBPD 3200 (560 mm discs), trailed disc two-row disc harrowBPD harrow-3.2×2 is ideal for fast, surface processing of stubble with intensive mixing, works smoothly even with a large amount of straw. Cultivation of corn fields with a large amount of straw and stubble / Trailed two-row disc harrow BPD-3.2x2 The diameter of the working bodies is 560 mm. as well as grinding, leveling and compaction of the soil.
The trailed two-row disc harrow BPD-3.2×2 is ideal for fast, surface processing of stubble with intensive mixing, works smoothly even with a large amount of straw. Processing of corn fields with a large amount of straw and stubble.

It can be used in all agro-climatic zones, on all types of soil, except rocky and weedy ones.

They are intended for the following works:
- Loosening of the upper soil layer;
- Leveling of the field surface after plowing;
- Destruction of weeds;
- Planting of seeds and fertilized;
- Cutting meadows and pastures before plowing; 150
- Лущения стерни;

Compact sizes in transport position;
High quality painting of the product.

Technical characteristics.
Productivity for 1 hour of the main time (ha/h) up to 3.84
Working speed (km/h) up to 12
Gripping width, m 3.2±0.12(//tractor-service.com)
Constructive mass of the machine, kg 1900
Processing depth, cm up to 15
Overall dimensions (in working position), mm
Length 5265±160
Width 3366±100
Height 1150±35
Disc diameter, mm 560
Number of working bodies, pcs. 24
skating rink 1
Angle of attack of discs, degrees. 0° — 30°
Distance, mm
between disks in a row 250
between rows of disks 950
Service life, years 18
Test results
Indicators of the quality of soil treatment BPD 3200
The ridge of the soil surface, no more (see) 3
Crumbling soil, not less (the size of lumps not more than 25 mm.) (%) 90
Grinding of harvest residues (%) 101
Plant and harvest residue closure (%) 101
Aggregation 90 hp:
