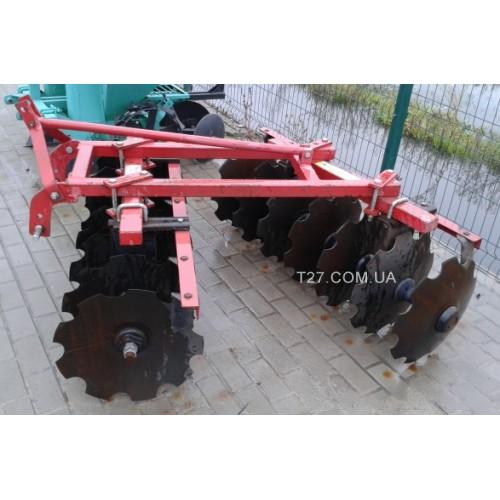

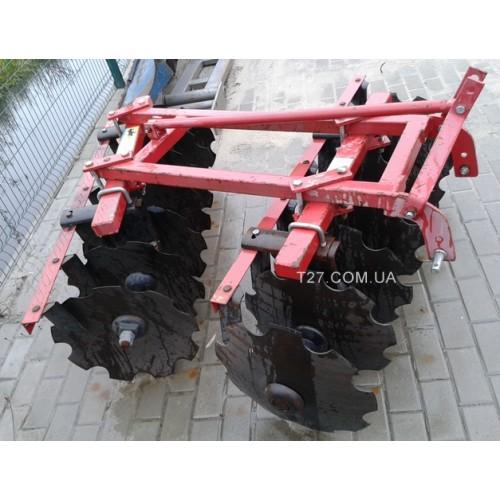

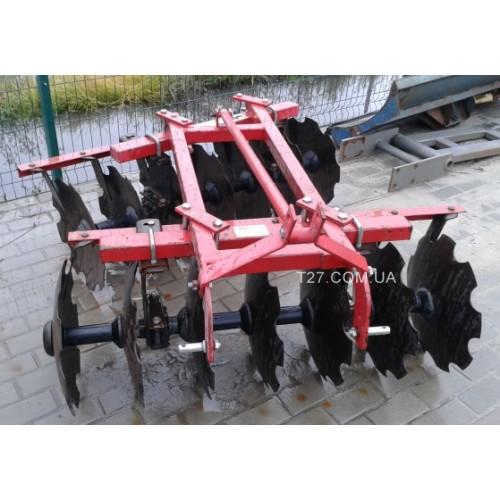

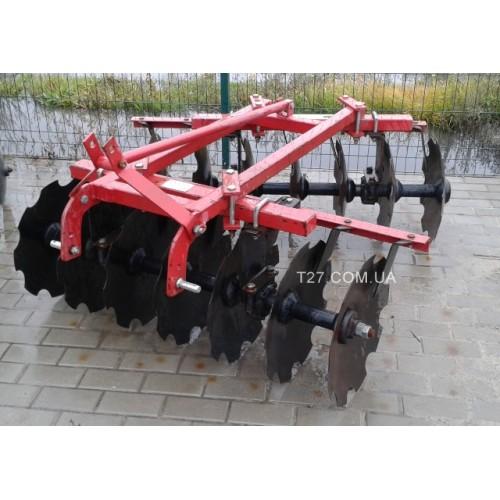

Harrow 14-disc two-section 1.3 m (China), Kyiv region.

Harrow 14-tydisc mounted two-section 1.3 m is intended for processing agricultural land, cutting grass layers after plowing virgin soils, processing meadows and pastures, applying fertilizers and harvest residues. The tool allows you to carry out field work using low-power equipment (aggregated with mini-tractors with a capacity of 18-22 hp).

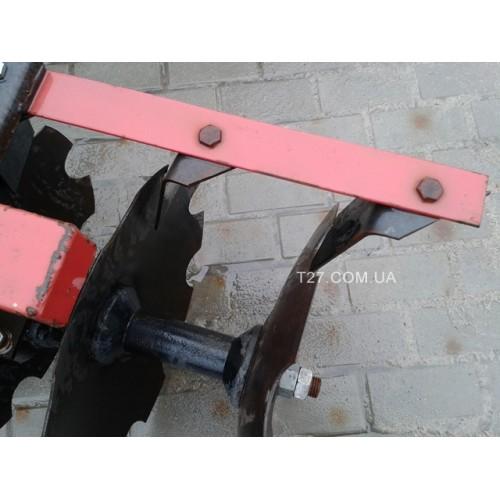

Two rows of jagged harrow disks enter the soil layers at an angle, which allows to reduce the traction force and improve the stability of the unit. Easily plunging and rotating, the cutting elements produce surface loosening, partial turning of the soil, and trimming of weeds. The ability to adjust the angle of attack of the discs from 0 to 23○ ensures effective work regardless of the conditions and type of soil. The sharp edge of the cutting elements of the harrow contributes to the high-quality grinding of soil layers, and the characteristic cutouts on thedisks prevent the accumulation of plant residues. For better shredding скопление растительных остатков. Для лучшего крошения soil disks of the rear battery are offset relative to the front disks.(//tractor-service.com)

The necessary processing depth is set by changing the angle of attack, repositioning the fingers of the hitch and adjusting the pressure of the disks on the soil (due to the weight of the ballast).

The small weight of the tool predetermines minimal energy costs and resistance when contacting the soil.
