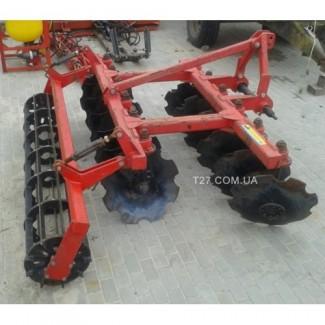

Disk plow PD-2, 2 with roller (Veles Agro), Kyiv region.

Disk plow PD-2,2 skatkom (produced by Ukraine) according to technical characteristics and price/quality ratio corresponds to the best world samples. It has a unique principle of soil treatment for sowing grain and industrial crops, which consists in breaking up the soil, shifting layers and mixing the treated soil horizon to a given depth. It can be used for peeling stubble, mixing mineral fertilizers and lime with the ground. In one pass, the plow produces crushing and leveling of the field surface, crushing and compacting plant residues and organic fertilizers.

The unit consists of a suspended 2-section disc harrow and a string roller. Constructive elements - frame, working bodies, hitch, screw screed, rolling roller.

Disk plow, performing rotational movements, when interacting with scrapers guarantees the intensity and uniformity of land plot processing. The ability to change the angle of attack (rotation) of the discs from 16° to 24° allows you to achieve proper quality of work regardless of weather conditions and type of soil. The optimal distance between the discs and the roller creates the necessary conditions for the settlement of the soil. The support roller, the position of which is regulated by screw devices, provides the necessary processing depth and crushing of lumps in the upper layers, additional leveling and rolling of the soil.

Characteristics:

Spring unit type

Width of capture (m) 2.2

Productivity (ha/h) 1.8 ‒ 2.2

Working speed (km/h) 8 ‒ 10

Processing depth (cm) 8 ‒ 18

Angle of attack of disks (degrees) 16...20...24(//tractor-service.com)

Number of working bodies (pieces) 12

Diameter of the disk of the working body (mm) 640

Transport speed, no more (km/h) 20

Dimensions see below.

Length (mm) 2,200

Width (mm) 2 430

Height (mm) 1,300

Unit weight (kg) 1,050

Required power of the tractor (hp) 80 ‒ 90

Traction class of the tractor 1.4 ‒ 2.0
