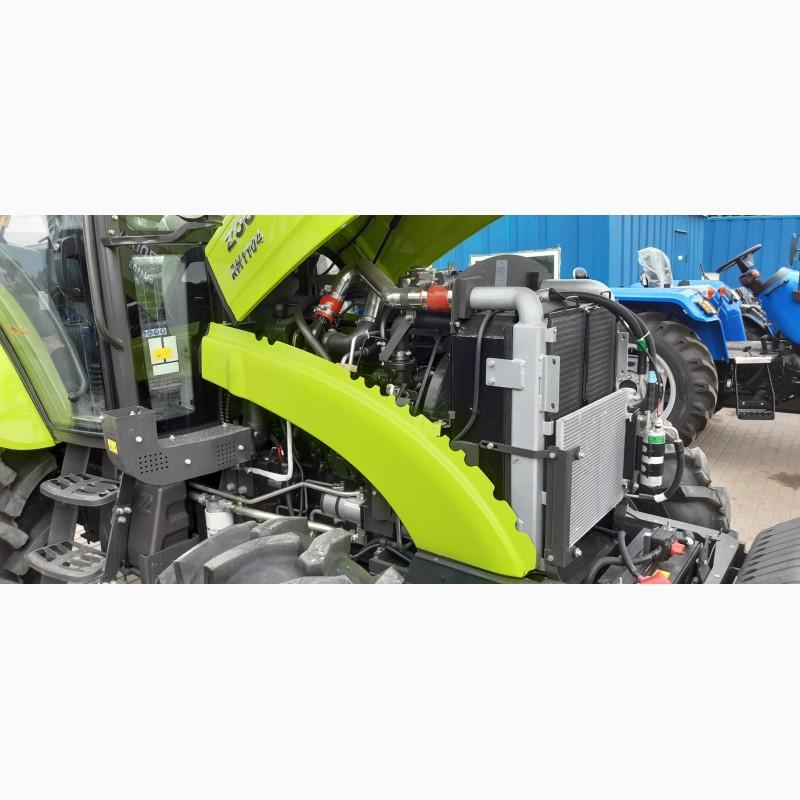

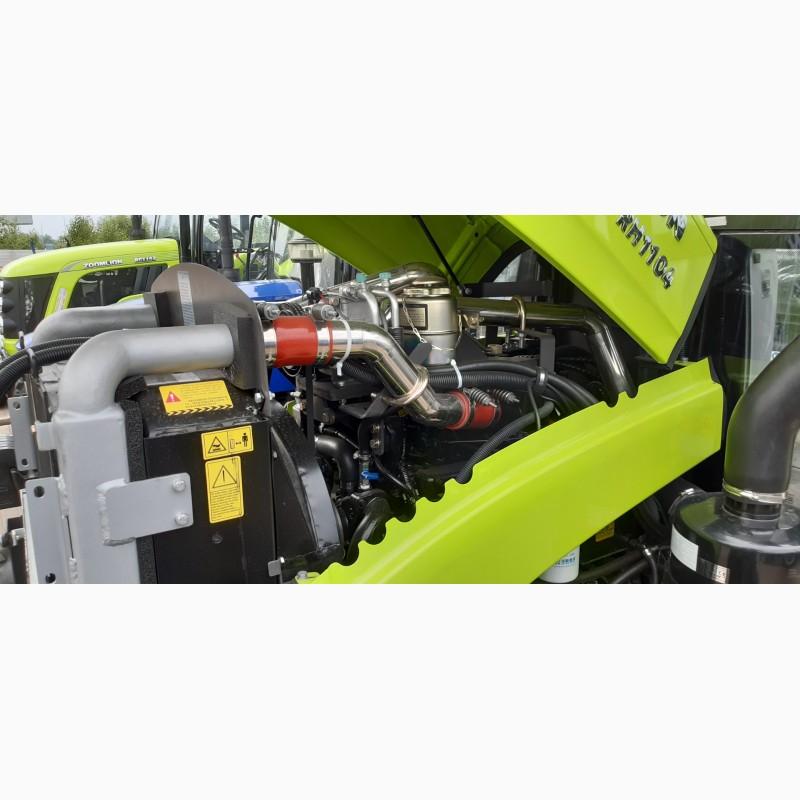

ENGINE
Working volume (cm3): 4750
Engine power (kW / hp): 81/110
Nominal rotation frequency (rpm): 2200
Engine type: Diesel
Number of cylinders: 4
Specific fuel consumption (g / kW · h): ≤242
TRANSMISSION
Gearbox type: 16-forward; 4-back
Type of clutch: 2-disc 12-inch, dry, spring, with independent control, the main control of the clutch is carried out by a pedal, manual switching is provided.
GENERAL TECHNICAL PARAMETERS
Weight, kg: 4250
Wheel formula: 4 x 4
Front counterweights: 360
Rear counterweights: 360
Length, including rear hinge (mm): 4700
Width (mm): 2000
Height (mm): 2900
Wheelbase (mm): 2352
Track
front wheels (mm): 1650
Rear wheel track (mm): 1670
Agricultural clearance (mm): 430
(//tractor-service.com)
RUNNING SYSTEM
Rear differential: Differential device with 4 planetary gears

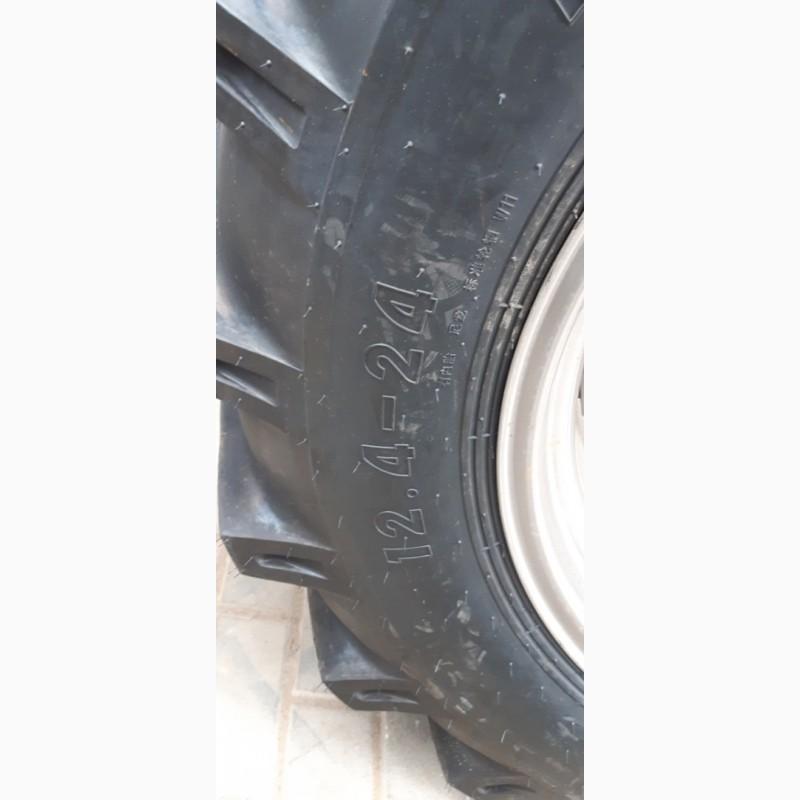

The size of the front
tires: 12.4-24

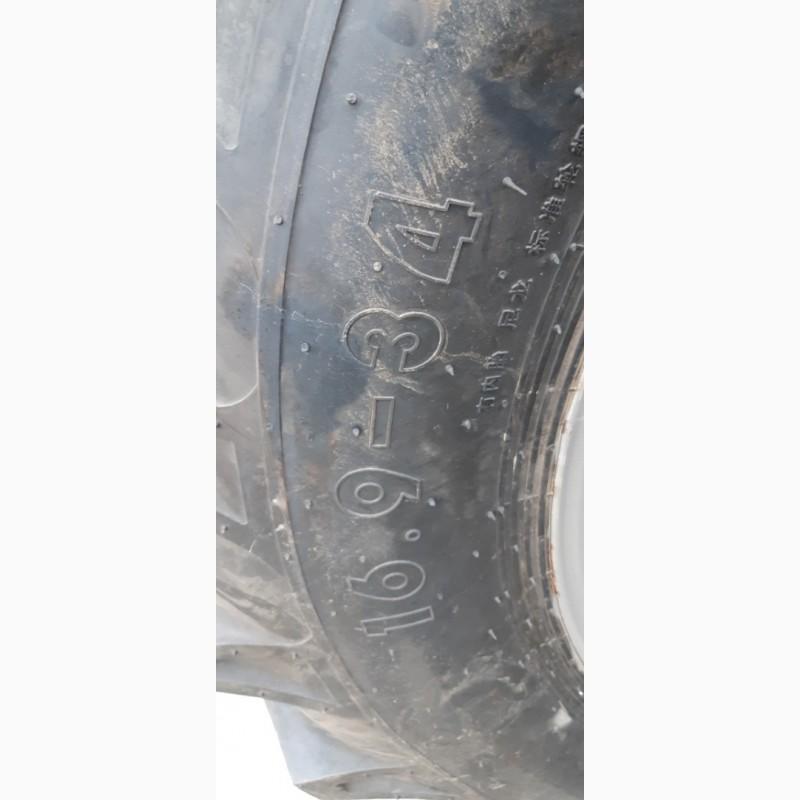

Rear tire size: 16.9-34
HYDRAULIC SYSTEM
The maximum load capacity of the hinged mechanism, kg: 4500
Number of hydraulic pumps: 2
Number of hydraulic valves: 2 pairs
Additional distributor: 2-way

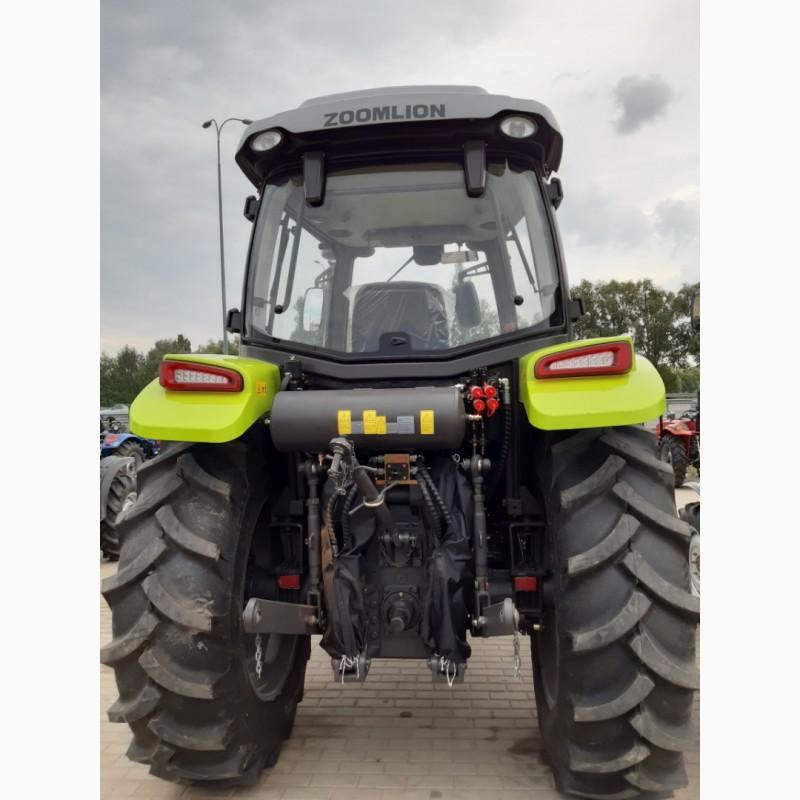

REAR PTO SHAFT
Rotational frequency, (rpm): 540 / 1000
REFUELING VOLUMES
Power steering (l): Yes
KIT
Headlights: Yes

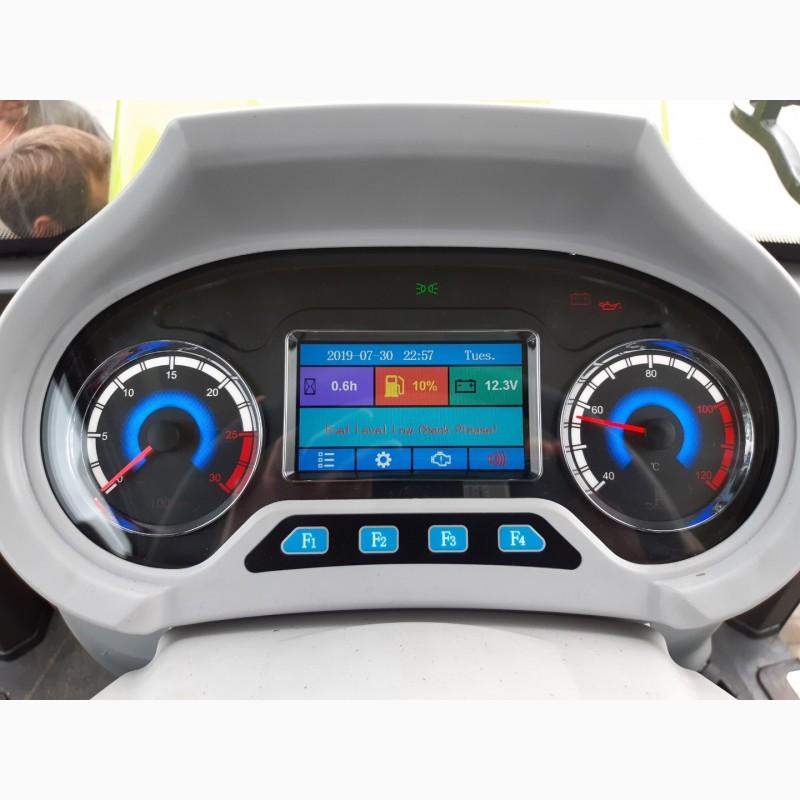

Hour counter: Yes
Compressor: Yes
Rear-view mirrors: Yes
Socket for
trailer: Yes

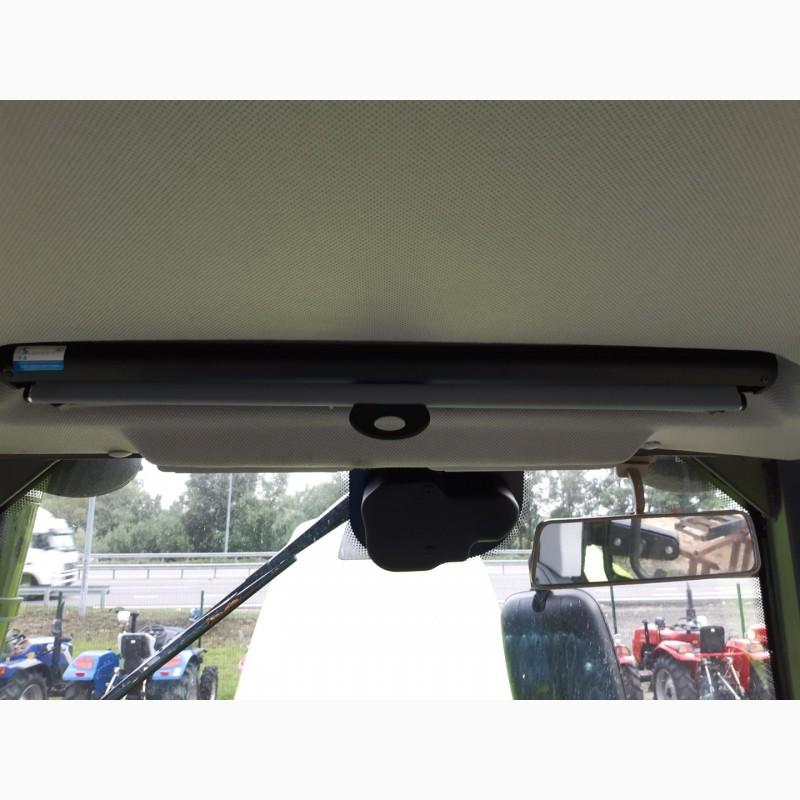

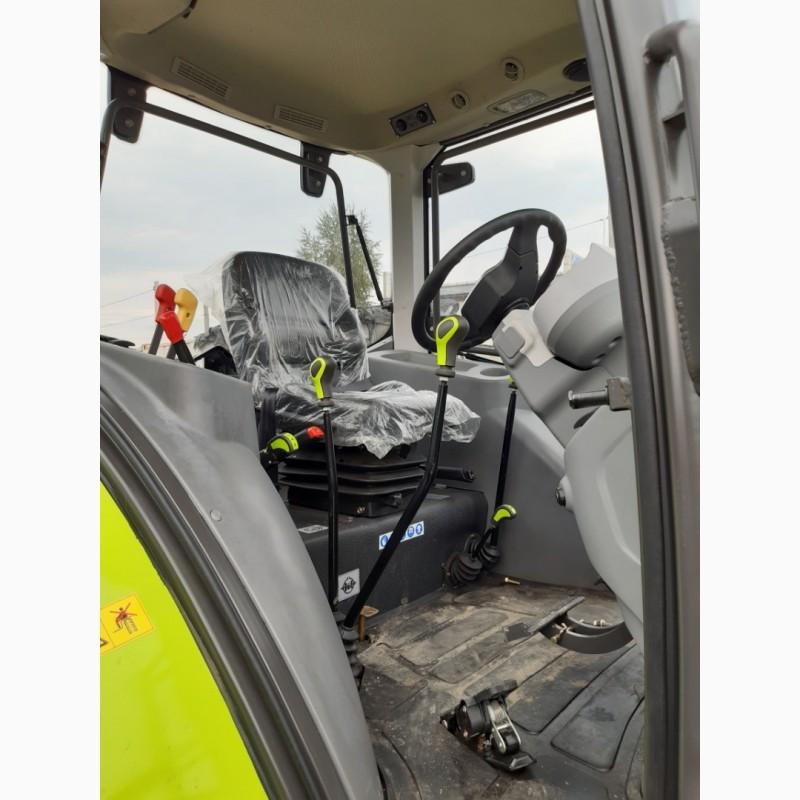

Cabin: Yes
Stereo: Yes

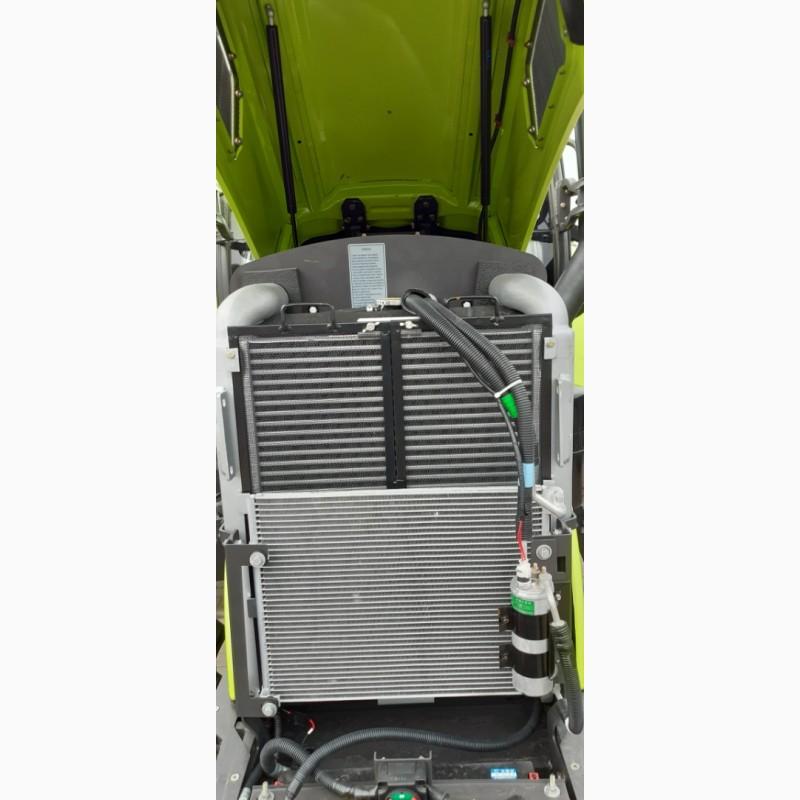

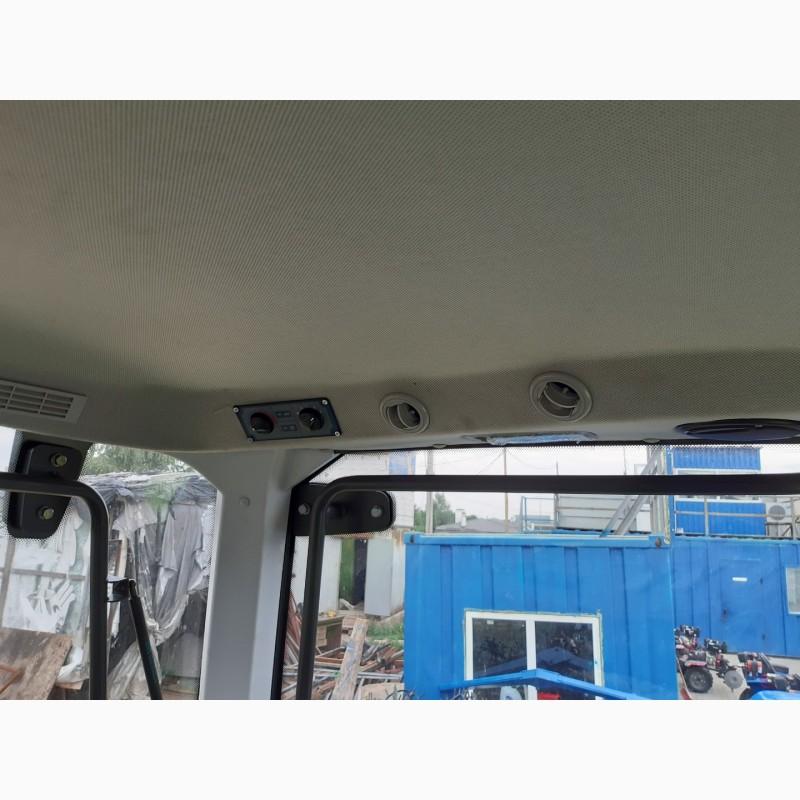

Air conditioner: Yes
