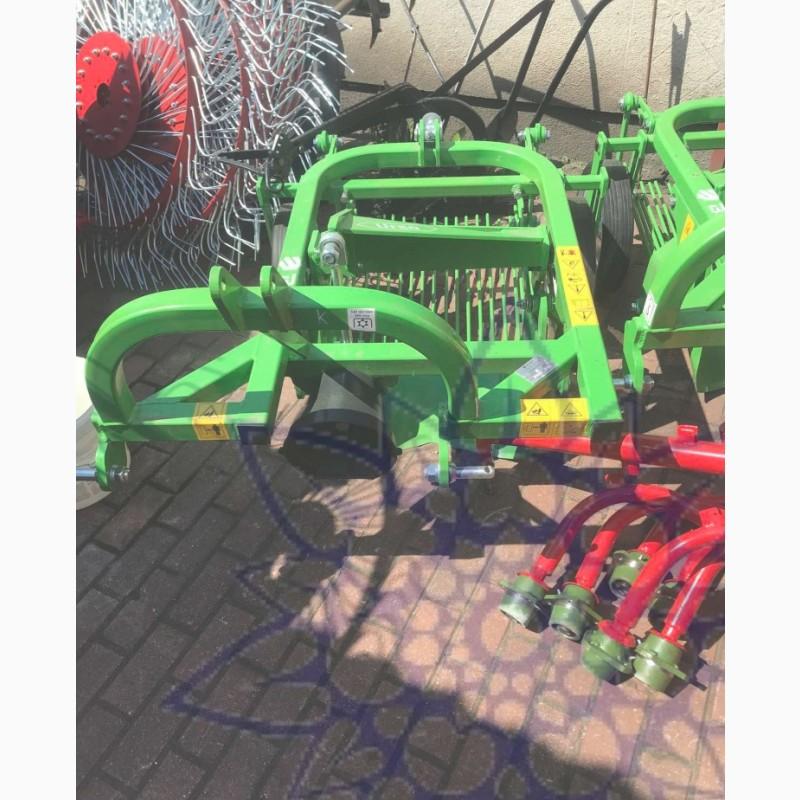

Vibrating potato digger with backward ejection of tubers.
Aggregated with small tractors from 10 l. p.
The machine consists of a vibrating blade with adjustable digging depth, which moves the tubers with soil into a vibrating basket. In the basket, with the help of vibration, the potatoes are "sifted", being cleaned from the ground, and placed on the surface of the soil. The digging depth is controlled by the rear
support wheels. The intensity of sieving can be increased by adjusting the slope of the basket.
All vibrating elements are actuated by a crank-and-rod mechanism operating from the tractor's power take-off shaft.
Axes, blades and basket are equipped with rubber bushings that ensure the stability of the machine during operation. Reduced dimensions allow the machine to be used on small, both flat and hilly areas of land.
- The width of the ridges is 450 mm.,
- The maximum working depth is 200 mm.,
- The weight of the shoe is 135 kg.,
- Power 7.5 kW.
(//tractor-service.com)
The power take-off shaft is not included in the basic equipment.
We offer a reliable, splined, cardan shaft (additionally, at the Customer's request).
The development of Bomet will satisfy the most demanding owners and will become a reliable tool for harvesting.
The warehouse of finished products is located in the Zhytomyr region.
We send goods by delivery services to all regions of Ukraine.
We reserve the right to change the value, both up and down, in connection with the form of calculation and balances for
composition.
We will notify you of the exact terms of delivery by phone on the day of your request.
