KTP-2 tractor-mounted mower, 1m, Zaporizhzhia region.

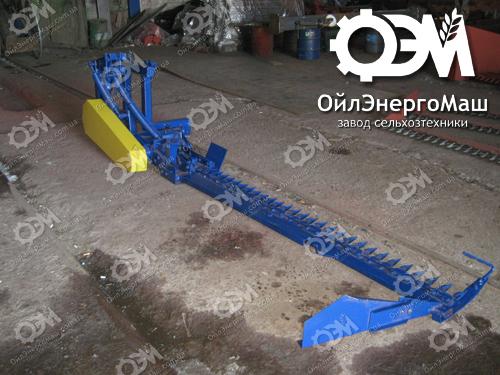

KTP-2,1 segment mower
Purpose of the mower:
The KTP-2.1 finger tractor mower is intended for mowing sown and natural grasses with the laying of the mowed mass in the spread.
The KTP-2.1 mower is used in all soil and climatic zones.
The mower is aggregated with MTZ-80/82 tractors; YuMZ-6L/6M; T-25; T-40 and is hung directly on the hitching device of the tractor.
Technical characteristics:
The name of the indicator Norma
Structural weight (dry) 120 kg
Construction width of capture 2.1–0.2 m
Productivity in 1 hour of the main time 1.25–2.5 ha/h
The working speed of movement in the main operations is 6–12 km/h.
Transport speed:
when the mower is raised and fixed for long-distance travel, no more than 20 km/h
when the mower is raised for short-distance travel across the field, no more than 12 km/h
Ground clearance, not less than 300 mm.
Overall dimensions: 146
в рабочем положении:
length 1160 mm
width 3660 mm
height 875 mm
in the transport position (when traveling on public roads with atractor MTZ-80)
length 4600 mm
width 1910 mm
height 3300 mm
The minimum cutting height is 50 mm(//tractor-service.com)
Cutting device:
segmental-digital type
knife drive crank-crank
knife stroke 76 mm
maintenance staff 1 mechanic

Mower composition:
The main component parts of the mower are:
• hint;
• bearing beam;
• cutting apparatus;
• hydraulic system for lifting the cutting device;
• outer (right) divider;
• protective fence;
• transport traction;
• Cardan transmission.
Device and operation of the mower:
The mower is driven by cardan transmission from the power take-off shaft (PTO) of the tractor to the power take-off shaft 8 (PTO) of the mower. The two-arm drive pulley 3, rigidly connected to the VPM, transmits rotation to the shaft of the driven pulley through V-belts. An eccentric rigidly attached to the shaft of the driven pulley converts the rotary motion of the shaft into a reciprocating motion of the knife of the cutting apparatus through the connecting rod.
The technological process of mowing proceeds as follows: when a tractor with a mountedmower moves across the field, the grass, falling between the segments of the moving knife and the counter-cutting edges of the finger inserts, is cut. The cut plants are rolled through the cutting apparatus and placed on the surface of the field. At the same time, the stem diverter on the inner ski diverts the cut grass from the knife head slightly to the right, and the stem diverter installed on the outer divider diverts the cut grass to the left, providing free passage for the inner ski on the next run.
Also, the bar is equipped with the best device in terms of the quality of the cut by inertial forces, power consumption for cutting and the total load on the blades of the segments, as well as operational reliability is a cutting device with a stamp-welded finger, with four inserts, while the knife segments alternate with a notch up and down. This cutting device does not require daily adjustment of the gaps between clamps and segments. The segment is not wiped with a clamp. The high-quality cut of both upright stems and reclining stems, as the process of cutting inclined stems is facilitated if the stems are cut with a knife with the sharpening edge of the blade at the bottom, that is, an inverted segment. At the same time, clogging of the cutting apparatus is reduced. The costs of repairing die-welded fingers are reduced by equipping them with replaceable anti-cutting plates H 006.56.
DESCRIPTION FINGER GRASS MOWER KTP-1,3; KTP-1,4; KTP - 1.5; KTP – 1.8; KTP - 2.1
The mower bar is equipped with the best device in terms of cut quality, inertial forces, power consumption for cutting and the total load on the blades of the segments, as well as operational reliability is a cutting device with a riveted finger. This cutting device does not require daily adjustment of the gaps between clamps and segments. The segment is not wiped with a clamp. The high-quality cut of both upright and receding stems, as the process of cutting inclined stems is made easier, if the stems are cut with a knife with the sharpening edge of the blade at the bottom, that is, an inverted segment. At the same time, clogging of the cutting apparatus is reduced.
