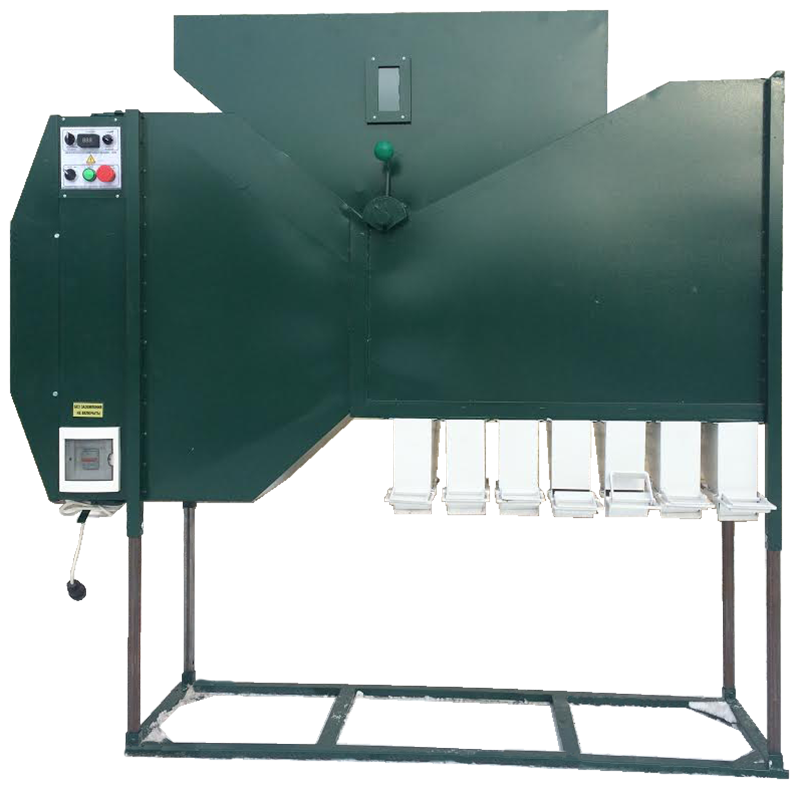

Grain separator ISM-10 (cleaning 10t/h, calibration 5t/h), different seed cleaning machine, Kharkiv region.
Region:All Ukraine,
Kharkiv region.
- ISM-10 (cleaning 10t/h, calibrations up to 5t / h, 0.2-0.75kW, 220V, 50Hz, 150kg., Dimensions d.2420 / w.460 / h.1880mm.), price 72000 UAH.;
- ISM-10 (cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 380V, 50Hz, 150kg., Dimensions d.2420 / w.460 / h.1880mm.), c. 75,000 UAH.;
- ISM-10 TsOK (cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 220V, 50Hz, 200 kg., Dimensions d.3400 / w.1000 / h.2000mm.), c. UAH 97,000.;
- ISM-10 TsOK (cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 380V, 50Hz, 200 kg., Dimensions d.3400 / w.1000 / h.2000mm.), c. UAH 100,000.
Prices for November 2022, later - check by phone.
ISM — Impeller Separating Machine, sieveless impeller separator for cleaning andcalibrating grain and seeds.
TsOK — Cyclone-Sediment Complex of a closed cycle.
The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on the mass, size and shape.
The aerodynamic separator can work in 4 modes:
- preliminary cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. 600 hryvnias(//tractor-service.com)
- setwheels for ISM-5, ISM-10, c. UAH 700.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. UAH 750.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. UAH 850.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960.
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260.
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. UAH 6480.
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm. and more) c. UAH 13,500.
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. UAH 2000.
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
- APO-5 (pr-st 5-10t/h.) c. UAH 80,800.
The warranty period is 24 months.
Direct link to the company's official website: https://ton.biz.ua/ism-impelerna-separuyucha-mashina/
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unit of preliminarygrain cleaning APO:
https://youtu.be/vdA2w1B1PcY
- ISM-10 (cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 380V, 50Hz, 150kg., Dimensions d.2420 / w.460 / h.1880mm.), c. 75,000 UAH.;
- ISM-10 TsOK (cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 220V, 50Hz, 200 kg., Dimensions d.3400 / w.1000 / h.2000mm.), c. UAH 97,000.;
- ISM-10 TsOK (cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 380V, 50Hz, 200 kg., Dimensions d.3400 / w.1000 / h.2000mm.), c. UAH 100,000.
Prices for November 2022, later - check by phone.
ISM — Impeller Separating Machine, sieveless impeller separator for cleaning andcalibrating grain and seeds.
TsOK — Cyclone-Sediment Complex of a closed cycle.
The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on the mass, size and shape.
The aerodynamic separator can work in 4 modes:
- preliminary cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. 600 hryvnias(//tractor-service.com)
- setwheels for ISM-5, ISM-10, c. UAH 700.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. UAH 750.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. UAH 850.
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. UAH 960.
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260.
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. UAH 6480.
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm. and more) c. UAH 13,500.
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. UAH 2000.
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
- APO-5 (pr-st 5-10t/h.) c. UAH 80,800.
The warranty period is 24 months.
Direct link to the company's official website: https://ton.biz.ua/ism-impelerna-separuyucha-mashina/
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unit of preliminarygrain cleaning APO:
https://youtu.be/vdA2w1B1PcY
