Four-row cultivator KPS-4 KPPO-4 (spring and roller, Kirovohrad region.

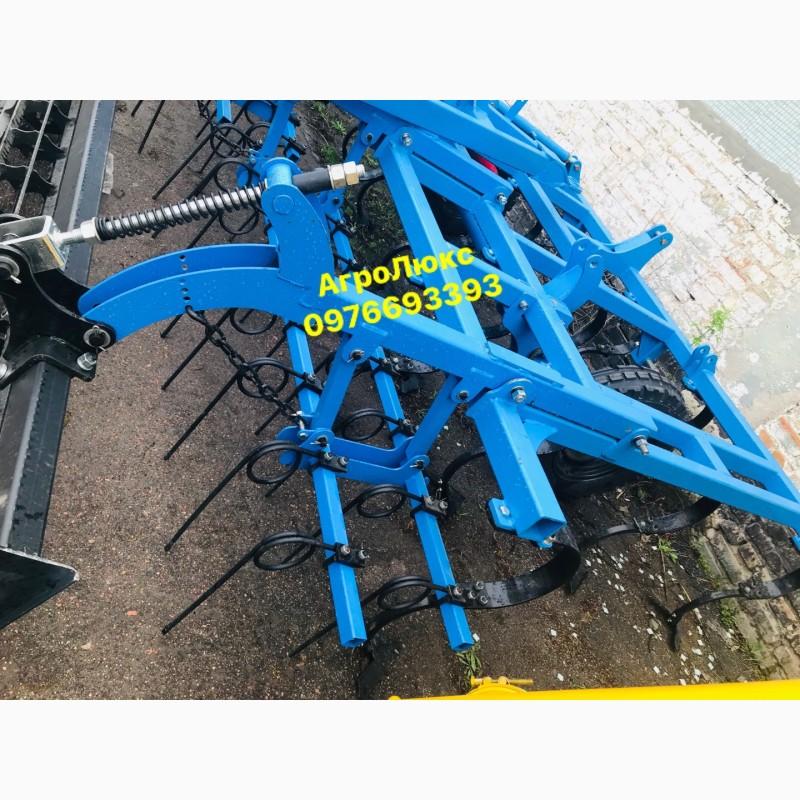

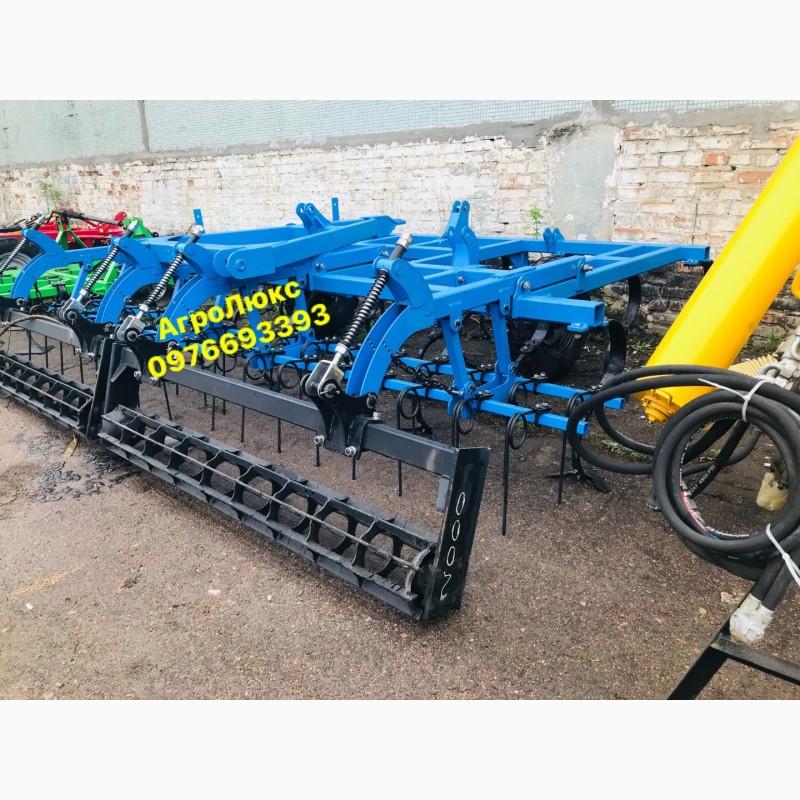

Four-row trailed KPS-4 factory cultivator with spring harrow and roller - everything is as in the photo and the price is real (everything is available)

Cultivator KPS-4 KPPO-4trailer cultivator with spring harrow and reinforced roller, the price is correct

The main purpose of the pre-sowing tillage cultivator is the main and pre-sowing cultivation of the soil with a moderate amount of plant residues.

One pass of the cultivator provides:

grinding and mixing plant residues with soil
100% destruction of weeds
continuous cultivation to a strictly specified depth.
leveling the soil, breaking up lumps and combing out the cut weeds with spring teeth
crushing, leveling and compaction of soil with ribbed rollers;
The above operations allow you to get optimal conditions for subsequent sowing.
cultivator KPPO-4 type 1 KPPO - 4
4-meter trailed cultivator
pre-sowing cultivator
Type of Machine Semi-trailer
The construction width is 4 m.
Working speed 8 - 12 km/h.(//tractor-service.com)
Productivity 3.2 Ha./h.
Processing depth 5-14 cm.
Number of simultaneous agrotechnical operations 3
Aggregation with tractors of traction class 1.4 KN (not less)
The required power is 80 hp.
The volume of the hydraulic system of the unit is 5±0.5 l.

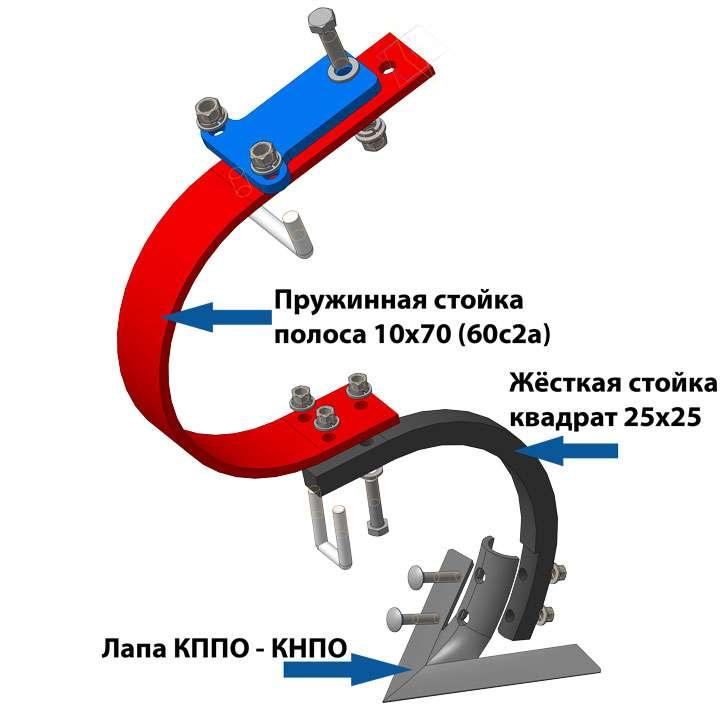

The type of the working body of the gearbox pawl
The width of one paw is 270 mm.
Overlap of working bodies 60 mm.
The minimum distance between adjacent working bodies on the frame is 210 mm.
Number of working bodies - Lap 19
Number of working organs - spring tooth 36
The clearance under the KPPO frame is 710 mm. (from the soles of the paws)
Transport clearance 300 mm. (no less)
The length in the working position is 4.5 m.
Height in working position 1.1 m.
Standard equipment 3-row harrow with spring teeth
Optionally equipped plastic skating rink with a pitch of ~100 mm.
with a diameter of 255 mm.
Weight 1150 kg.
