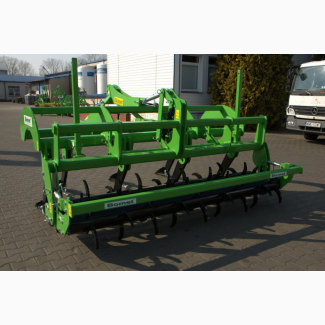

Bomet 5- and 7-tooth deep harrow with roller, Zaporizhzhia region.

The deep harrow is a machine intended for deep processing soil, which does not disturb its upper layer. Deep cultivators of the U486 series loosen and aerate the soil to a depth of about 65 cm. Deep loosening breaks the plow sole, thus restoring the normal water-air proportions in the soil. With such soil treatment, there is no mixing of the surface and deep layers of the soil. This procedure is best carried out immediately after harvesting, when the soil has already dried. On a field treated withdeep soil conditioners, the following soil treatment procedures should not be started too early in order to avoid re-compaction of the soil. The deep tiller can also be used to prepare the soil before planting fruit trees, berry bushes and deep-rooted plants.
The technical parameters of the design meet European norms and standards in the field of safety and ergonomics, and the high efficiency of the equipment is obtained thanks to the most modern design and construction methods using computer technology.
The deep-grower is produced in versions with 5 and 7 teeth with a tooth pitch of 45 cm. All deep rippers have a strong frame on which a shaft is installed with depth adjustment using a parallelogram. The teeth of the deep ripper are protected from damage by a shear bolt. In addition, the teeth are equipped with replaceable coulters and a "mole", which performs additional loosening in the deep layers of the soil.
The effective working depth of the U486 series reamer is 65 cm, and in order to maintain the appropriate quality and efficiency of the reamer, the power consumption per tooth is about 30 kW.

Name - U-486/1 U-486/2(//tractor-service.com)
Number of racks pcs. 5 7
Shaft diameter mm 550 550
Processing depth m to 0.65 to 0.65
The weight of the deep conditioner kg 980 1230
The mass of the deep-roller withwith a roller kg 1605 2010
Required power kW/hp 110/150 185/250
