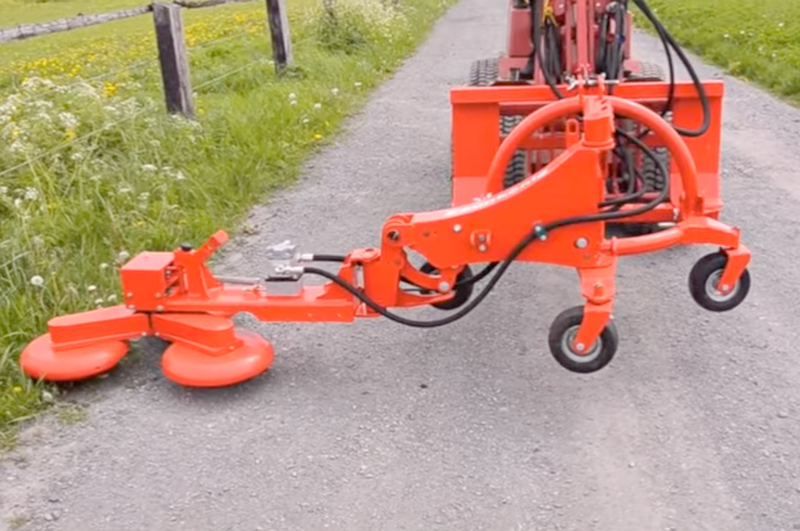

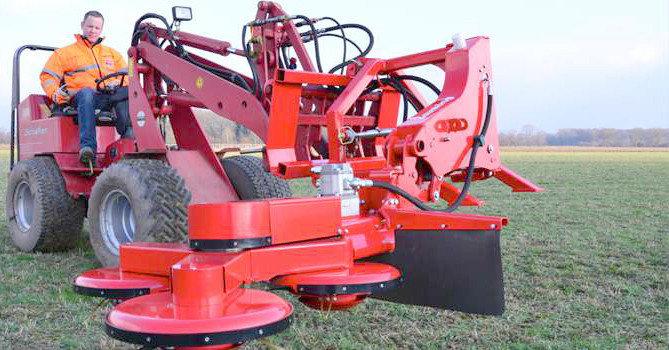

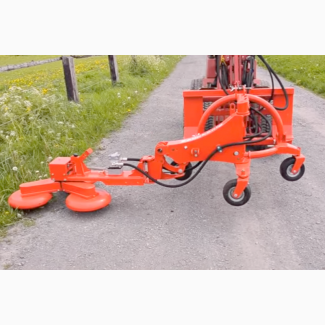

Kneilmann retractable road mower, Kirovohrad region.

The road mower is used to remove grass and bushes from various hard-to-reach places. The unique design, which was patented, allows non-stop and effective mowing of vegetation where other mowers with three heads - trimmers on the boom - cannot handle. It is aggregated for all commontractors (both front and rear), front loaders and other machines.
Scope of application

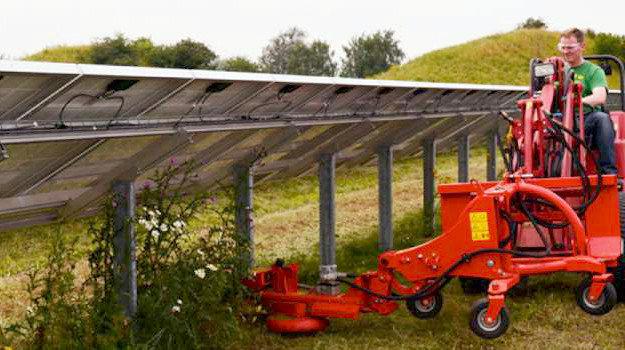

• Removal of shrubs and other vegetation under curved beams and other natural or artificial obstacles (rows of trees, fence posts, road signs, etc.)
• Work on slopes, slopes, banks, etc.
Principle of operation
The pull-out mower for road posts has two modes: transport mode and work mode. In working mode, the mower boom can be extended to its full length by hydraulics and work in hard-to-reach places. In transport mode, the boom compactly folds hydraulically for transportation. The tilt of the boom is also regulated by hydraulics.

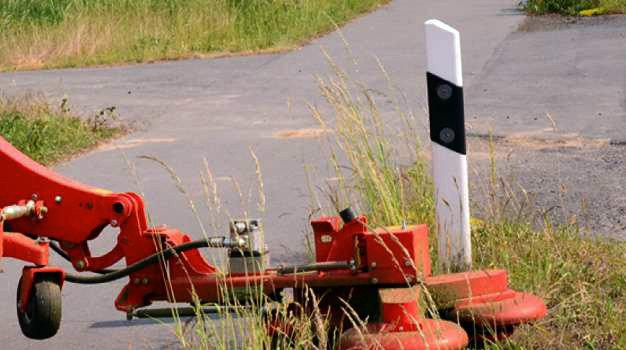

The mower for bumpers can work with a slope of up to 45 degrees up, mowing slopes and up to 30 degrees down, mowing slopes, trenches, etc. The design of the working body at the end of the boom consists of three heads of trimmers arranged in a circle. They rotate freely and easily scroll around obstacles.
While scrolling, the head-trimmer does not stop working, and the next one in the circle takes its place. Thanks to this, mowing does not stop andtractor does not need to be stopped. Depending on the diameter of the vegetation that needs to be removed, the trimmer heads can shred the vegetation with knives or nylon fishing line.
Mower components for a roadside strip

1. Protective covers on working elements
2. Star frame(//tractor-service.com)
3. Working disk of the mower with a protective cover.
4. Hydraulic motor on the console
5. Hinged mechanism
6. Hydraulic lift drive
7. A counterweight that reduces the load on the ground
8. 3-point fastening, rotary
9. The choice is steel knives or fishing line for the head.
10. Sliding heads
11. Protective plate covers
12. Console
13. Protective apron
14. Protective mechanism when hitting an obstacle
15. Trolley support rollers
