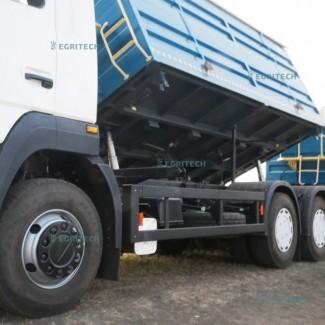

Grain truck ASPS-1422, Kherson region.

Reliable agricultural transport for crop transportation.

The car-dump truck is designed by the Gartech Group engineering company.

The suspension has increased wear resistance and is designed for stable operation under high loads. In the production of the road train, high-quality steel is used, with an anti-corrosion wear-resistant multi-layer coating. Steel grade 09G2S of increased strength is used for the manufacture of the subframe and supporting elements. St3ps steel is used for the manufacture of the body. The welding of the frame and body is carried out in welding stations by semi-automatic welding in an environment of shielding gases. The train is equipped with folding sides. The body is covered with a waterproof awning. A removable handle is installed on the awning to allow it to be rolled up and unrolled from the platform.

Gross weight kg 34,000
Curb weight kg 12,500
Load capacity kg 21,500
Capacity of the bunker body m³ 22
Overall dimensions: 166
Длинна мм 8 740 (//tractor-service.com)
Width mm 2 589
Height mm 3 224
Interior dimensions of the body
Length mm 5 030
Width mm 2 350
Height mm 1860
Hydraulic body lift system, two hydraulic cylinders, telescopic, one-sided.
Body lift angle degree degree 40
Automobile chassis FORD 3542D
Wheel formula 6x4
The maximum speed of movement km/h 89
Nominal power of the engine kW 306
