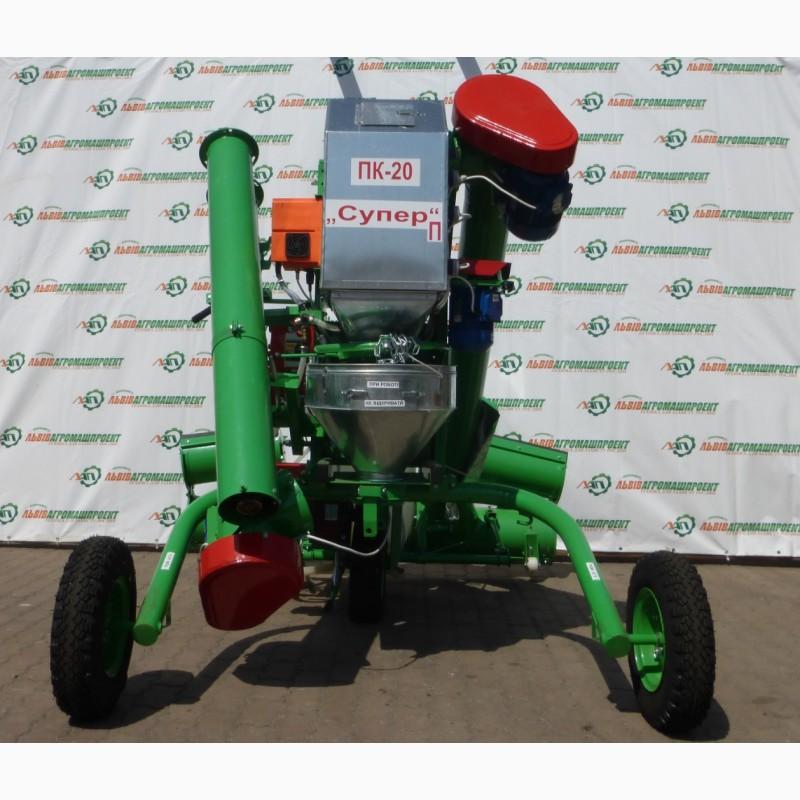

Chamber mordant PC-20 "Super" P, chamber mordant PK-20, Lviv region.

Chamber stainers are used for pre-sowing seed treatment of grain crops with aqueous solutions or suspensions of pesticides. A modern self-propelled machine with an electric drive, equipped with elements for regulating the flow of seeds and a peristaltic pump-dispenser for the supply of working fluid NP-02. Productivity is regulated using buttons located on the frontpart of the pump and is displayed on the display. The pump body is made of polypropylene resistant to chemical reagents. The working part of the pump (rollers and elastic tube) is protected by a transparent polycarbonate cover. Material of the elastic tube: Norprene® - black neoprenerubber (Tygon Tubing, Italy)

The new dosing pump is based on the developed peristaltic pump.Pumps of this principle are used in various fields, including in medicine, and have several advantages that are absent in pumps of another operating principle:

High accuracy of dosing.
Quick setting of the required flow rate of the working fluid.
Ability to work with multi-component working solutions, including with solid inclusions in the liquid.
Reverse.

High maintainability of the parts most prone to wear. The maximally simple design with a small number of screws minimizes injury to the seed during its processing.

Productivity, t/h 3-20

Loading auger width, m 2-3
(//tractor-service.com)
Unloading height, m 2.7

Tank capacity, l 140

Supply range of working fluid, l/min 0.1-3.3

Power consumption, kW 5.5

Overall dimensions in working position, mm 4300x2980x2900

Mass, kg 560

Equipped with a filling filter and a special halogen spotlight for working in rooms with insufficient lighting. To order, the stainer can be equipped with: an aspiration system, a module for applying liquid inoculants. Additionally, software is installed for the possibility of working in the mode of automatic regulation of the supply of the working fluid (CAPP).

Also, the stain remover falls under the program of partial compensation 25-40%
