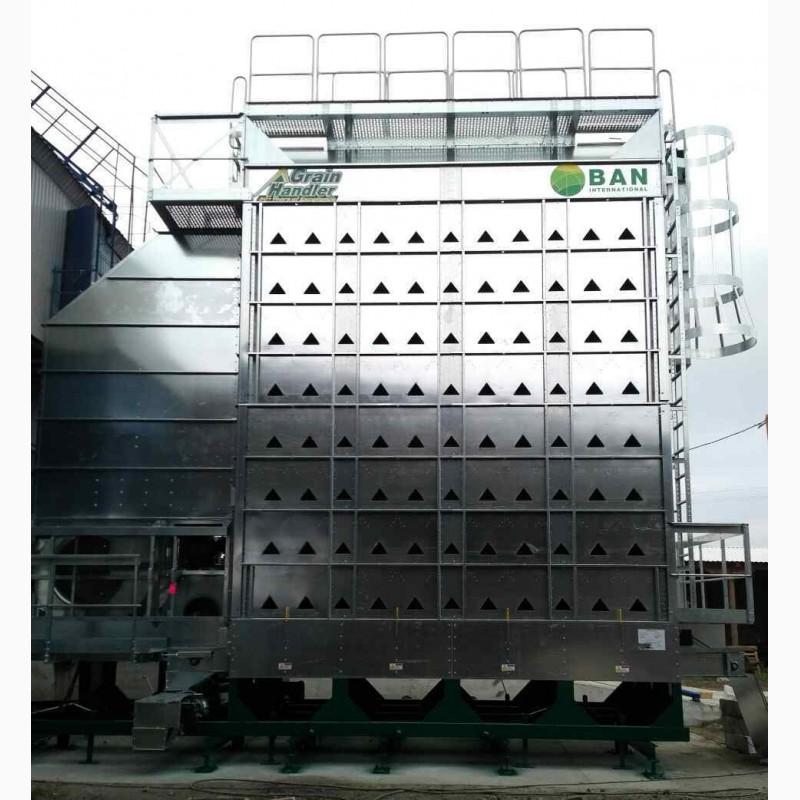

Mobile grain dryer Grain Handler GH 1608СН, Kyiv

Mobile gravity grain dryer of the discharge type with mixed cold and hot air flow. It works in flow drying mode with cooling.
Specification and technical parameters
Model GH 1608СН mobile
Type of fuel GAS liquefied LPG (propane-butane)
Gas evaporator (heater) Integrated into the air heating system of the drying room. 1pc.
Gas consumption per 1 t/% m³ at t°C outside +10° ± 3° 0.95-1.4
Number of medium pressure diametric fans (adjustable flow) 1 pc.
Power consumption 380V 50Hz 40 kW/hour
Manufacturing material Galvanized steel 350 g/m²
Size W – L – H (m) 2.75*5.8*7.4
Weight empty dryer/filled 8.66 /40.2 tons
Totalgrain capacity Wheat 31.3 tons
The length of the transport trolley is 11.2 m. 159 m The number of transport wheels is 3
Кiлькiсть транспортних вicей шт 3
Height in the transport position No more, m 4.2

Upper level Horizontal auger-
scalper 1 pc.
Fill level sensor Mercury. Working temperature
+150(//tractor-service.com)
-60 1 pc.
Working drying temperature °C 35-97
Aspiration cleaning at the exit yes
Grain temperature sensor pcs 6
Coolant temperature sensor pc 1
Productivity per hour
at 10℃ Ton (when removing 10% of moisture) 14
Productivity per day on average at 10℃ tons (when removing 10% of moisture) 300 – 336 (depending on the properties of the kurudza hybrid)
Volumetric air supply m³ 78 323
Burner power
(modulation) megawatt hours 2.2
Gas vaporizer (heater) Standard 1 pc.
The number of workers near the drying room Person 1
Control cabinet Standard 1 pc.
Towing device for a car ortractor Yes
Complete control cabinet Motors, protection machines, time delay relays, transformer and others. SIEMENS
Gas burner Linear MAXON 1 pc.
Honeywell burner controller 1 pc.
Side lights and turns Yes
The productivity of the grain dryer is calculated for biologically ripe grain.
