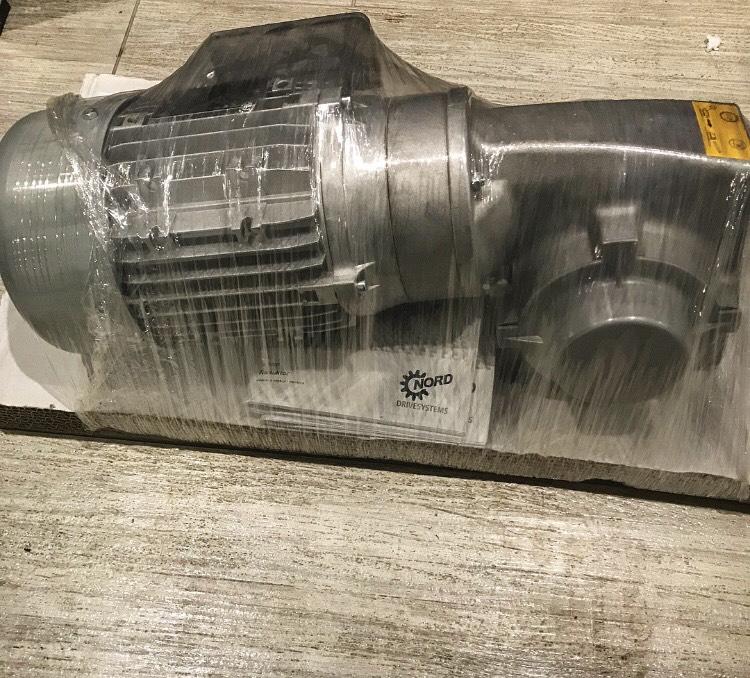

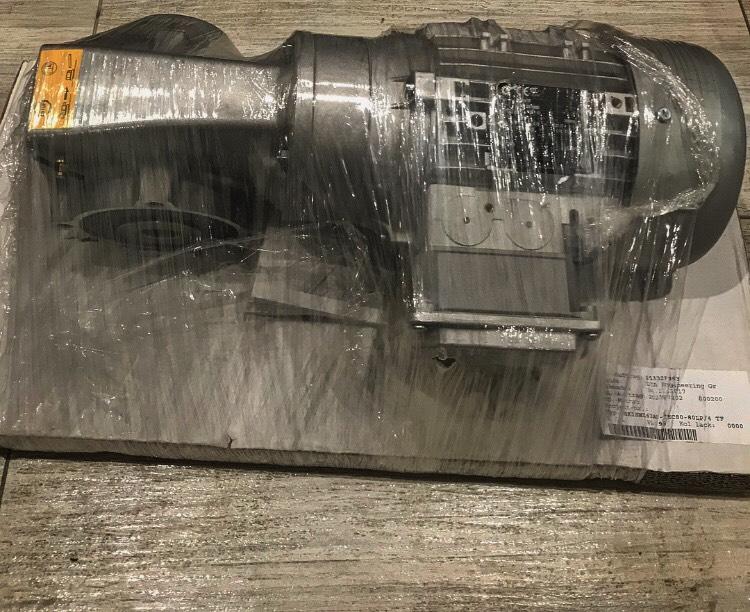

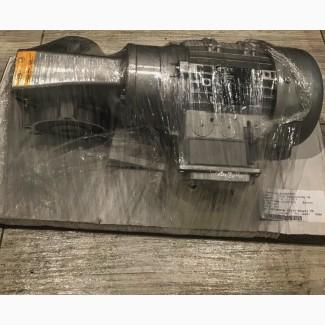

Reductor motor NORD DRIVESYSTEMS SK1SMI63AZ-IEC80-80LP/4 TF, Kyiv region.

Reducor motor NORD DRIVESYSTEMS SK1SMI63AZ-IEC80-80LP/4 TF
LLC "E-Trade Automation Kyiv"
Payment B/N with VAT and cash payment.
Warranty 12 months.
All products are new, not Chinese copies, in stock. Regarding the price - call to clarify.
"E-Trade Automation Kyiv" supplies the widest range of engines!!!

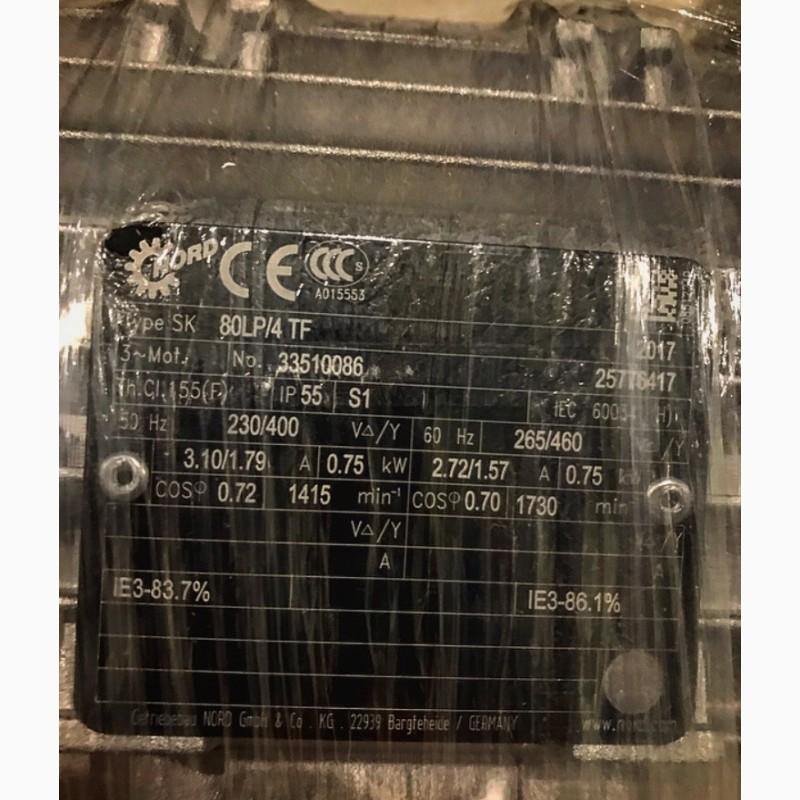

The calculated time resource of the heaviest gearbox oil pan for a torque on the engine shaft with a value of 1.0 Mn is Lh10¸ 2600 hours.
Product name - Reducer. screw with motor
Engine speed - 1.415 1/min
Regulator transmission - 30.00
Output speed - 47,000 1 / min.
Operating coefficient - 1.50
Output torque - (Nm) 105.00
Nominal engine power - 0.750 kW
Engine voltage - 230/400 V
Frequency - 50 Hz
Performance class - IE3
Type of work - S1
IP55 - Engine protection
Insulation class - F(//tractor-service.com)
Nominal current - 1 (AMP) 3.10
Nominal current - 2 (AMP) 1.79
Cos - 1 0.72
Working position - M1
Construction type - Drazon, sleeve, collar B14
Input adapter - IEC 80 B14 C120
Dimensions of the output shaft - 25H7 mm
Automatic air vent
Sealing rings type - viton
Safety. Heat engine PTC sensor, 3x155 ° C
Engine connection type - Star
Engine box - 1 / i
The type of oil in the regulator is Synthetic ISO VG 680
Oil manufacturer - Klüber
Oil class - CLP PG 680
The amount of oil is 0.270 l.
Varnish coating
Mark - CE Tak
Weight about - 19 kg / PC
