Solid fuel pyrolysis boiler of the KFPV-100 series from the manufacturer, Poltava region.

Solid fuel pyrolysis air heating boiler of the KFPV-100 series from the manufacturer.

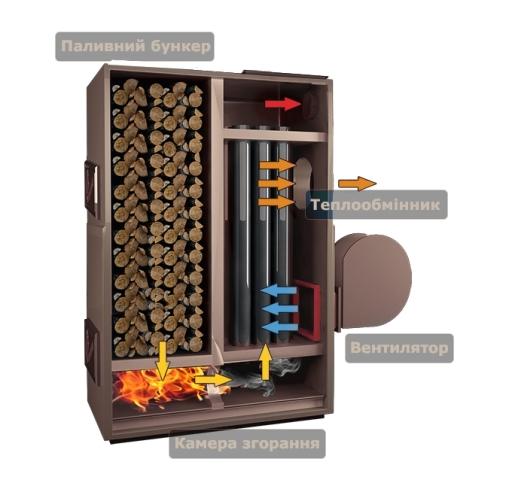

Boilers of the KFPV-100 series are intended for heat supply of any industrial premises, car washes, warehouses, farms, greenhouses, poultry houses, other large premises up to 4000 m3, as well as for individual residential houses. Possible use for drying wood, grain, mushrooms, berries, medicinal plants.
The fuel used is everything exceptcoal, namely: firewood, woodworking waste,fuel briquettes, straw, husks, corn cobs, etc.

Technical characteristics of the boiler KFPV -100

Parameters Ed.izm. Значение
Heat capacity, kW, 100
Volume of loading chamber (gas formation), m3, 0.64
Working air temperature, 0C, 50-120
Efficiency at humidityfuel, %:
20% - 90
40% - 82
Nominal pressure behind the boiler (no more), Pa, 40
The temperature of the outgoing gases (not less), 0С, 140
Electric power consumption, kW, 1.2-1.6
Power supply voltage, V, 220
Chimney diameter, mm, 200
The volume of the heated room, cubic meters, 4000
The maximum length of firewood, mm, 700
Overall dimensions, mm(//tractor-service.com)
Depth 1600
Width 950
Height 1840
Weight, kg, 985
Used fuel Firewood, briquettes

It is possible to make boilers according to the Customer's individual dimensions.
Basic boiler set: 178
- топка, футерованная огнеупорным кирпичом ША-5,
- трубы теплообменника (толщина 4мм);
- heat exchanger housing (boiler steel, thickness 5 mm);
- boiler control automation (Poland).

Additional equipment is possible (to be agreed with the customer):
- heat-saving cover of the heat exchanger made of basalt wool;
- fan VC 4-75 No. 3.15, 3000 rpm, 1.5 kW/h.

Warranty - 12 months (with the exception of cases of thermal deformation of metal resulting from overheating of the boiler).
Boiler delivery time: 14-20 days.
Each boiler can be equipped with a burner working on any solid fuel of small fraction (pellets, sawdust, sunflower husks, any agricultural waste with any ash content). We are forming a dealer network. We invite trading and assembly organizations to cooperate.
