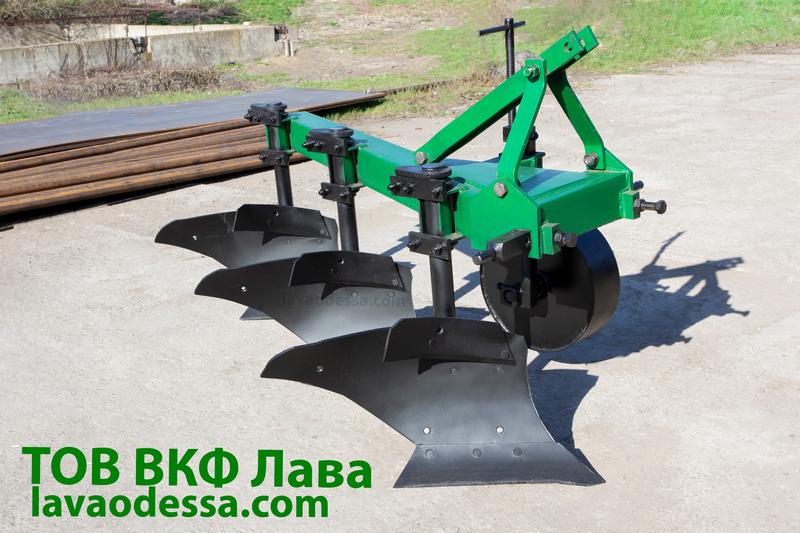

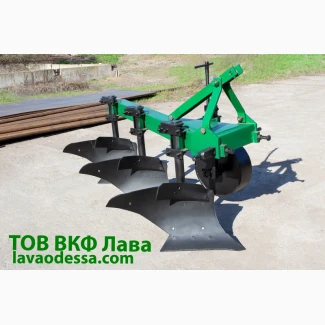

Plow PNB 3-35 reinforced on high round racks, semi-screw blade, Odesa region.

Hinged furrow plowPNB 3-35 is intended for deep plowing of soils for grain and technical crops до 30 см.
The plow is used in all soil and climatic zones, except for soil clogged with stones, slates and other obstacles, with a specific resistance of the soil of 0.9 kgf / cm2 (0.09 MPa) and hardness up to 35 kgf / cm2 (3.5 MPa) and humidity up to 27%.
The plow is aggregated with 80-100 hp tractors. (MTZ 80/82, MTZ 1025),right wheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow is 1.05 m
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 680 mm.
4. Mass - 425 kg
5. The working speed of movement during the main operations is 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Productivity in 1 hour. - 0.735-0.945 ha/h
Overall dimensions, mm: 162
довжина - 2550±100 (//tractor-service.com)
width - 1350±50
height - 1300±50

Advantages:
1. Installation of the body with a semi-screw dump provides effective wrapping of the harvest residues.
2. The use of a rack of a round-section body prevents the plow from clogging in fields with a large amount of crop residues.
3. Fastening of the body rack on the sides of the frame, due to this, the toes of the bodies are moved out from under the frame, which allows you to avoid clogging when working at increased speeds of soil processing.
4. The attachment of the housing rack to the frame with pressure bars and staples makes it possible to easily adjust the grip of the housing in case of deviation from the straight-line movement of the plow.
5. A strong and reinforced frame is used.
