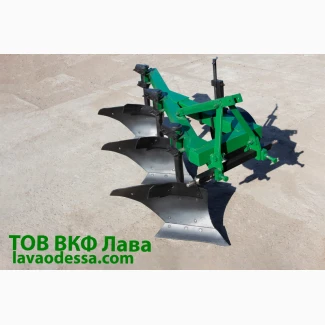

Plow PBL 3-35 on high round posts, semi-screw dump. Odesa factory

Furrow plow PBL 3-35 is intended for plowing soils undercereals to a depth of up to 30 cm, not clogged with stones, slabs and other obstacles, with specific resistance soil up to 0.09 MPa and hardness up to 4.0 MPa.
It is aggregated with tractors with a capacity of 80-100 hp. (MTZ 80/82, MTZ 1025), the rightwheels of which are in the furrow during operation.

There is also a variant of the PBL 3-35 plow with a feather blade (last 7 photos). Check availability and current price.

Technical characteristics:
1. The width of the plow is 1.05 m.
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 700 mm.
4. Mass - 425 kg
5. The working speed of the main operations - 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Productivity in 1 hour. - 0.735-0.945 ha/h
Overall dimensions, mm: 163
довжина -2600±100 (//tractor-service.com)
width - 1400±50
height - 1300±50

Advantages:
1. Installation of a housing with a semi-screw dump ensures effective wrapping of harvest residues.
2. The use of a frame rack with a round section prevents the plow from clogging in fields with a large amount of crop residues.
3. Fastening of the housing stand on the sides of the frame, due to this, the toes of the housings are brought out from under the frame, which allows you to avoid clogging when working at increased speeds of soil processing.
4. The attachment of the housing rack to the frame with pressure bars and staples makes it possible to easily adjust the grip of the housing in case of deviation from the straight-line movement of the plow.
5. A strong and reinforced frame is used.

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by any courier service.
Self-delivery is possible.
Questions can be asked at the indicated phone number.
