Mounted sprayer OP-1000 l boom 16 m, Kyiv region.

Hinged sprayer OP-1000 l boom 16 m

The mounted sprayer of the ОНШ (К) series - 1000 l, boom 14 or 16 m of reinforced construction, with a tank for flushing the system, nozzles are installed on the collector. Cardan shaft is included in the price of the sprayer.
Characteristics:
Manufacturer - Ukraine, firm "Agrotechnika" PE, Kyiv region, town Glevaha
Tank - 1000 l, with a tank for flushing the system for 100 l and a hand washer for 25 l.
Pump P-100 with a throughput of 120 l/min., from the Polish manufacturer Agroplast
The nozzle is single-position with a lateral cutoff, installed on the collector system (it is a chemical-resistant and high-pressure gas PPR pipe d.25)
Sprayer flat jet (slit) - AR-120-03 blue, for 200 l/ha, spray angle 120º
Assembled with MTZ tractor - 80 hp.
Warranty for sprayer and equipment - 1 year.
We guarantee the quality and long duration of work.
Design description:
The 14 or 16 m boom and sprayer frame are made of high-quality metal, painted with Italian automotive paint.
The reinforced construction bar of the new development has a pendulum system, which is carried out with the help of leashes and a rope. Plates made of a material with an ultra-low coefficient of friction are installed on the rod in places where it may be worn. A channel with a thickness of 6 mm is used to attach the rod, which ensures reliable operation of the sprayer and the rod in the working position. The lifting and lowering of the rod is carried out with the help of a powerful and reliable worm winch, the load capacity of which is up to 900 kg, in which it cannot be lowered arbitrarily.

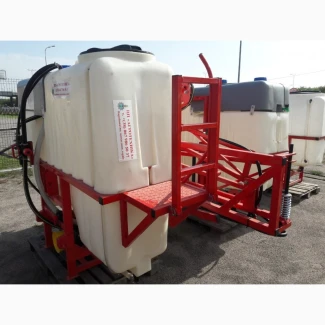

A platform with stairs is installed on the frame of the sprayer, which provides convenience when filling the tank through the neck.(//tractor-service.com)
The shape of the tank has a flat shape and ensures its complete emptying with uninterrupted operationpump. The total capacity of the tank is 1225 l, which includes a 1000 l main tank, a 100 l system flushing tank, which can also be used as a main tank (a 3-way tap is installed on the side of the sprayer) and a 25 liter hand wash basin.
Cardan shaft is included in the price of the sprayer.
*Additionally, the sprayer can be installed:
- tilt hydraulic cylinder
- hydraulic cylinder for lifting
3-position nozzles with sprayers - 110-02, 110-03, 110-03С
- computer Bravo-180S for 3 sections.
- mixer :
- for 28 liters of Ukrainian production
- for 35 liters of Italian production
- an Italian pump of the Annovi Reverberi firm at 135 l/min.
- Italian 4- or 5-section pressure regulator
- stops, turns, dimensions
- bar lighting
- flushing of the main tank
It is located on the Great Market Square on the Kyiv-Odesa highway in the village of Hlevakha str. Okruzhna 55-D, delivery by our transport - UAH 35. per km (one-way calculation)
