Disk cultivator Wil-Rich DC III, used
The Wil-Rich DC III disk cultivator is a combined soil processing unit. Pre-sowing treatment of the soil before sowing, both after the main treatment and independently on the stubble. This machine has the ability to prepare the seed bed in one pass.
Cultivator Wil – Rich DC III 7m width of grip (3-section) is equipped with 4 rows of paws, one row of discs (front), a three-row spring harrow, as well as rolling rollers
катки.
Characteristics:
• Processing depth: 0 - 15 cm;
• A battery of discs with a diameter of 56 cm is installed in front of the cultivator paws, which grind the clods of plowed land or cut the stubble when working on the stubble;
• Processing depth adjustment is carried out in one place;
• Ability to work on stubble;
(//tractor-service.com)
• Disc batteries are controlled by a hydraulic system and protected by a Wil-Flex bearing system that protects them from stones;
• Required
tractor power – 25–28 liters. with. 1 m wide;
• Reliable and easy-to-maintain design of the machine;
• High productivity;
• Different types of coulters and tips for different jobs;
. A compact 3-section frame with an interval between rows of 79 cm allows the DC cultivator to cope with a large volume of stubble without clogging the working organs.

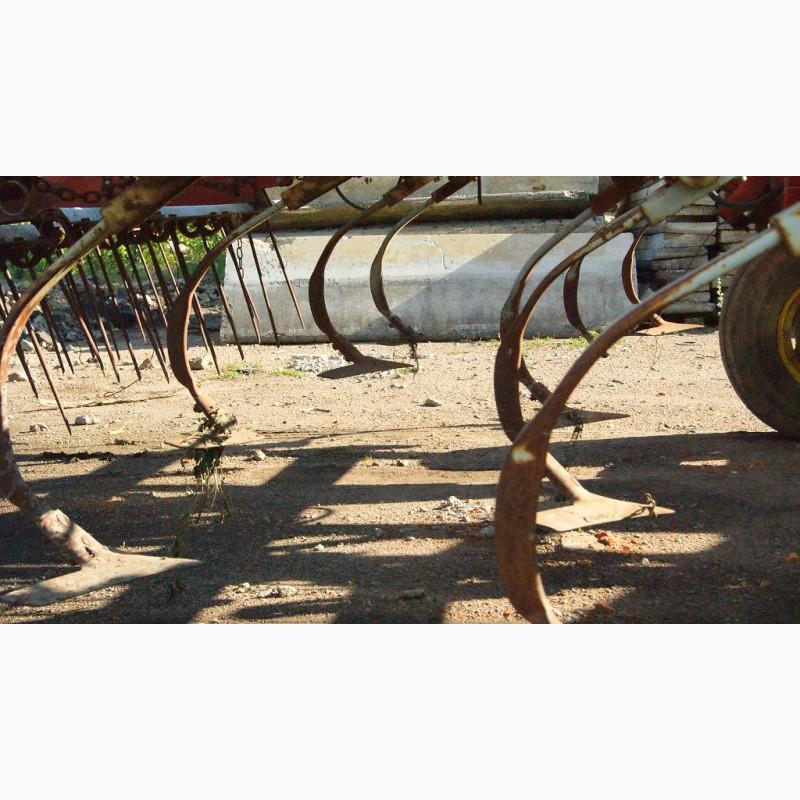

The Wil-Rich paw has many advantages. The foot with a formed edge and a clearance under the frame of 61 cm provide the best passage of the stubble and easy clamping. A rack with a spring for tension, the pressure for the activation of the spring is 94 kg.
Cultivator in good working condition, located in Cherkassy region. Paws with minimal wear (approximately 15-20%), at this stage does not require an insert
