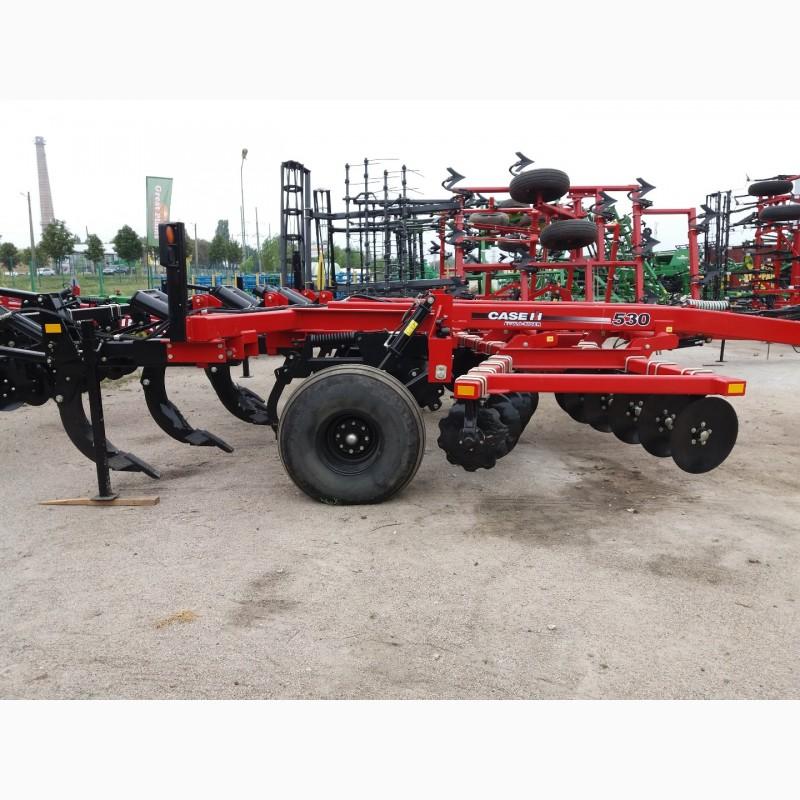

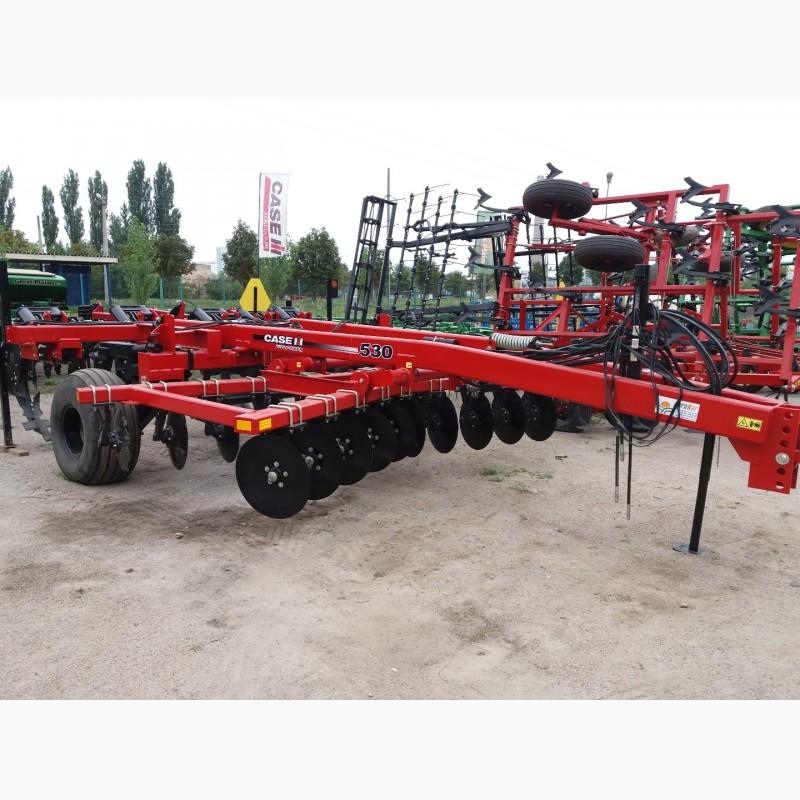

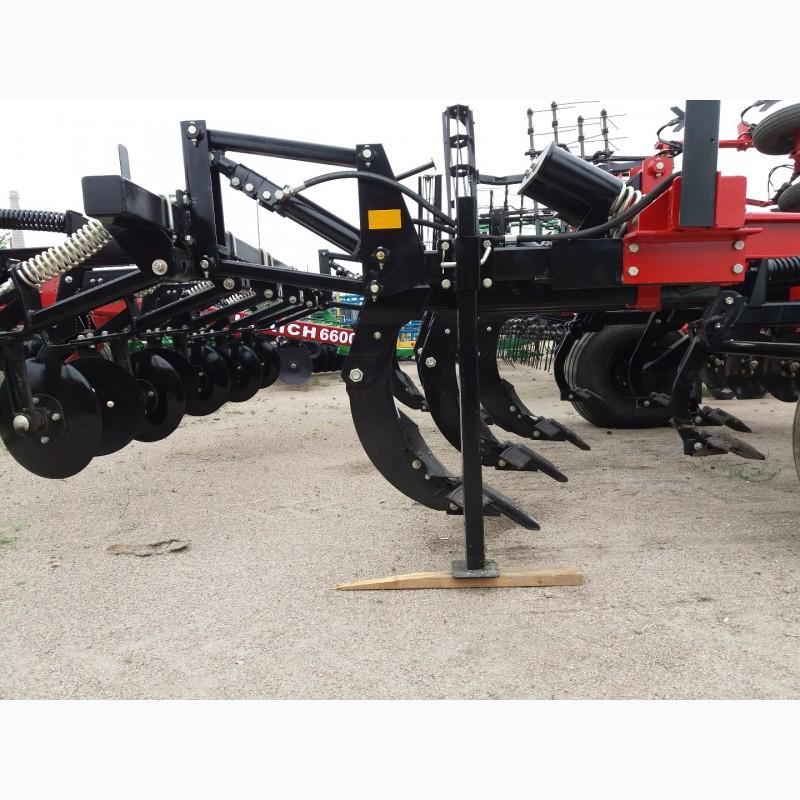

CASE IH Ecolo-Tiger 530 Case IH Ecolo-Tiger 530 5-paw disk-shaped deep tiller, Kirovohrad region.

Working width - 3.8 m
Disks - X-shaped frame with individuallyinstalled discs diameter 610 mm, distance between disks 380 mm, angle of installation of disks 18°
Rippers - 4 intermediate and 5 main ones,
The center-axis distance between the main racks is 76.2 cm, the intermediate racks are installed in the middle between the main racks.
Parabolic racks with adjustable stroke force up to 770 kg in intermediate and up to 2100 in main ones
Chisel of intermediate posts 7", main posts 10" (Nichols Tillage)
Disc wrappers - Diameter 45.2 cm
Working speed - Up to 9 km/h
Processing depth - Up to 35 cm.
Transport width - 4.5 m(//tractor-service.com)
Weight - 5262 kg
The required power is 300 hp. (221 kW)

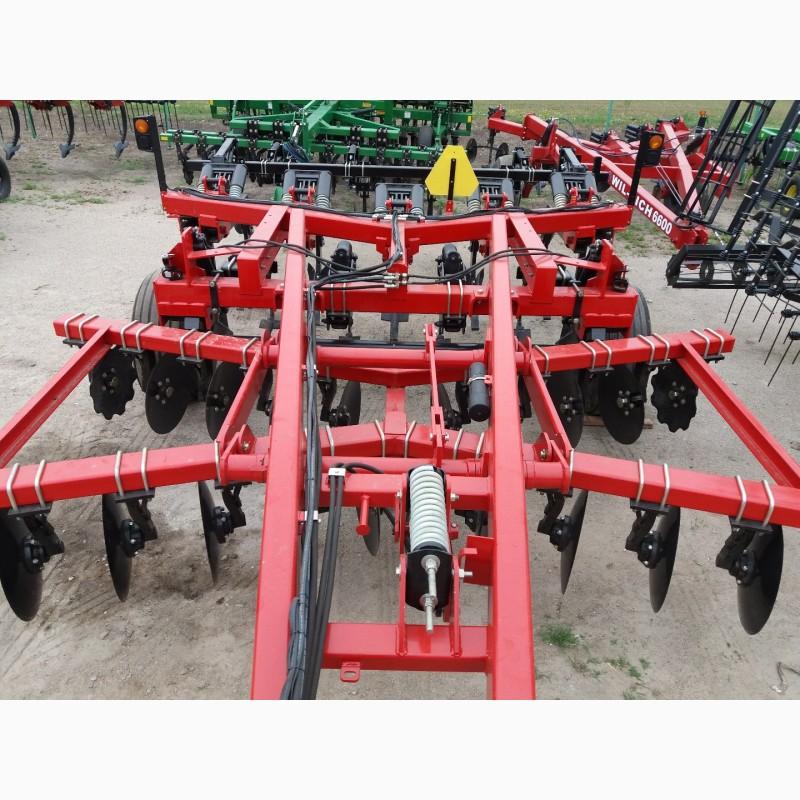

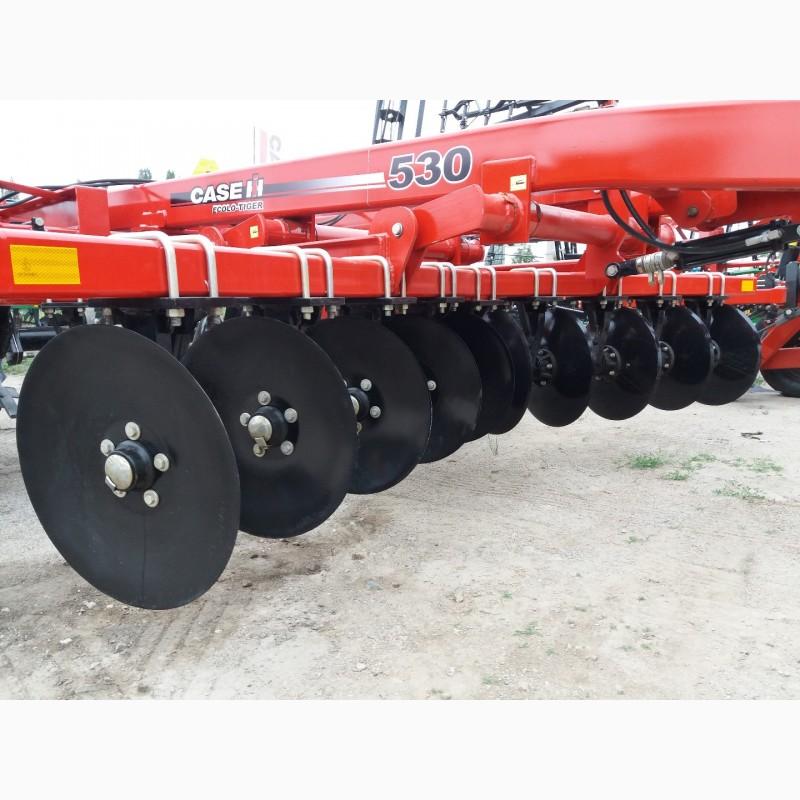

Independent hydraulic control of the X-shaped disc frame provides flexibility of settings depending on the size and density of the harvest residues, regardless of the set depth of processing with paws. Discs with a diameter of 610 mm have a thickness of 6.4 mm and are located at a distance of 380 mm from each other. The rear row of disks is offset relative to the front ones, which provides an effective cutting distance of 19 cm at a depth of up to 10.2 cm. The disks are installed on individual racks, so they are less susceptible to damage from hitting hard obstacles.

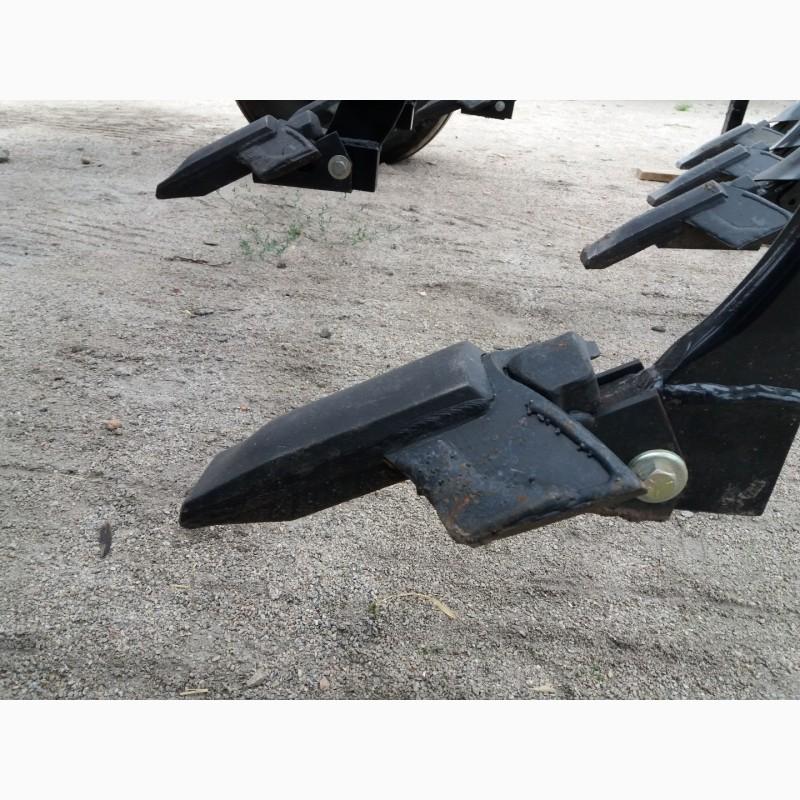

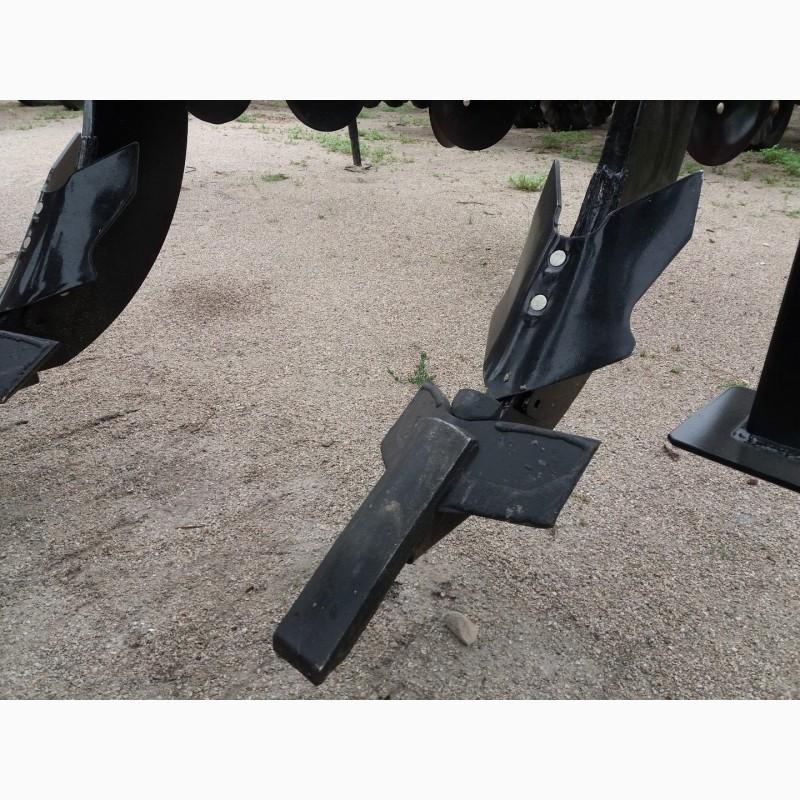

The main working paws have a unique Tiger-PointTM shape, thanks to which the cut layer of compacted soil is not only raised, but also well loosened. The paw stands have the largest size among all competitors, so Ecolo-Tiger Deep Throats work in any conditions.

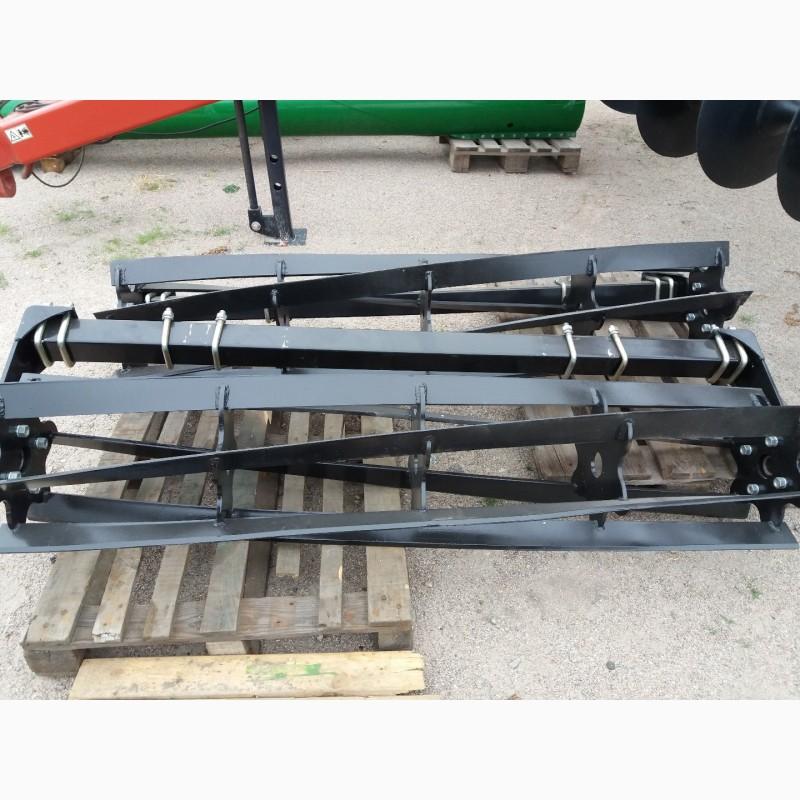

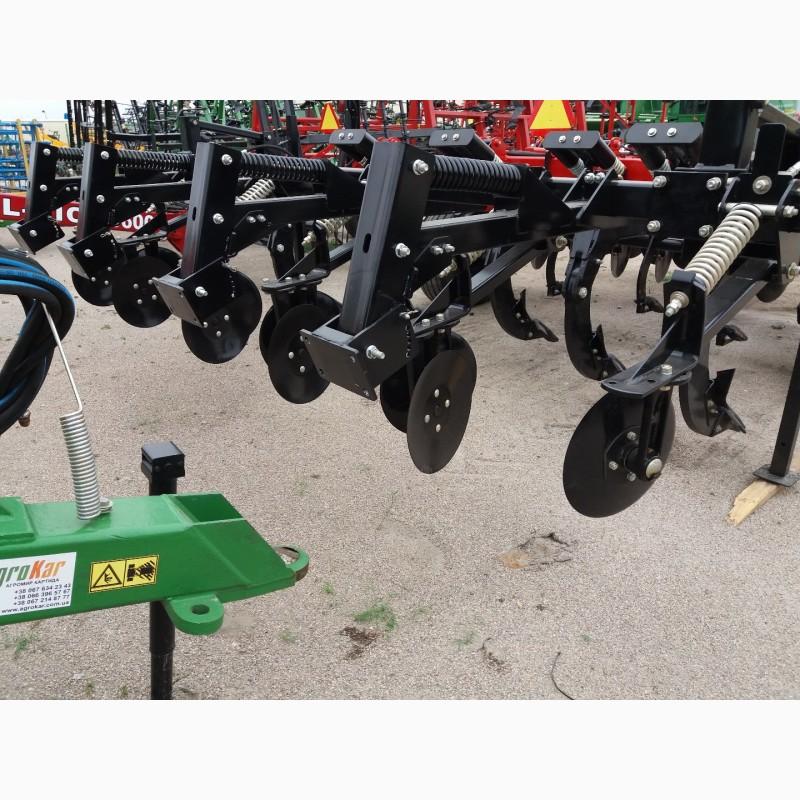

The rear battery of disk wrappers partially breaks large blocks and flattens the surface. Battery for ease of use has hydraulic control.

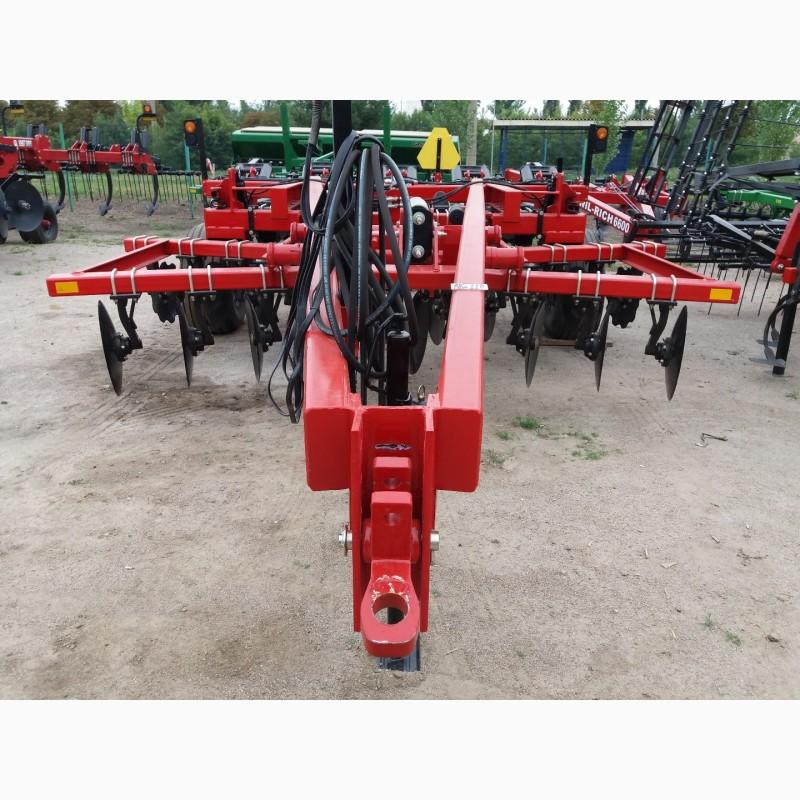

The coupling ring has a height adjustment that allows you to conveniently adapt the deep tiller to work with any tractor.tractor.
