Hatzenbichler mesh harrow "Stiegel 12+ Air 12", Kyiv region.

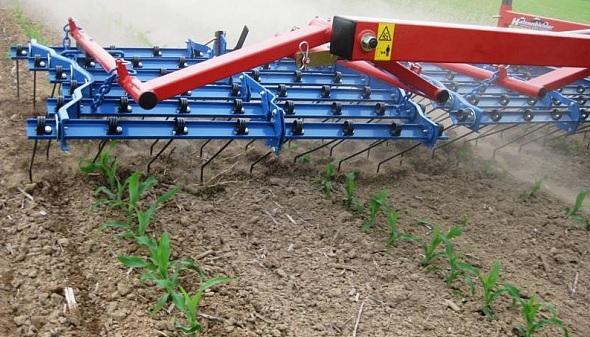

The "Strygel" mesh harrow is equipped with a special frame made of a profile pipe and separately suspended on chains of links of a weeding harrow with spring teeth.
Separate links of the harrow have a non-rigid design, which ensures excellent copying of the relief. The six beams of the link of the weeding harrow with teeth are brought to the desired inclined position manually by means of a control lever or hydraulically fromtractor cabin. The angle of attack (aggressiveness or tooth pressure) on each link of the mesh harrow is regulated centrally. Standard tooth length: 45 cm. Tooth thickness: 6, 7, 8 and 12 mm (on request). The distance between the teeth: 2.5 cm. Thanks to the lateral vibration of the spring teeth in combination with the speed, a comprehensive surface treatment is performed.

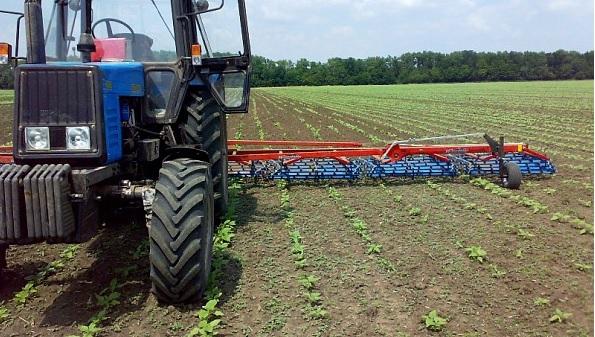

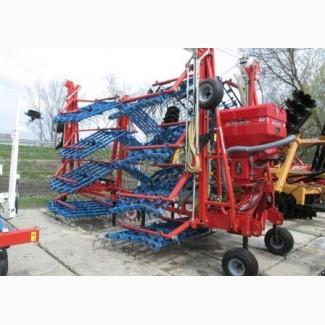

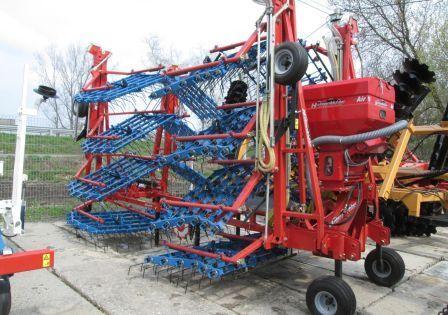

Mesh harrow "Shtrigel" is driven behind, following the tractor, on support wheels. Support wheels, adjustable in height by means of a spindle. Thanks to the original folding system, the tools have a transport width of 2.5 - 3 m. The tools with claw-like folding are equipped with 2 double-acting cylinders. Only in the case of tools with claw-like folding, the presence of a double-action control device on the tractor is required. Thanks to the use of high-quality steel, the tool has a low weight. Spring teeth are made of special steel, with additional processing, which gives them significantly higher wear resistance.

Coverage width: from 1.5 to 24 meters.
Advantages of a mesh harrow
•Correctly chosen number of teeth
•Special processing of the harrow tines, which leads to increased service life
• Thanks to the 3-fold twisting of the teeth of the mesh harrow, an optimal gyroscopic effect is achieved (the processing goes over the entire surface, without the risk of clogging with plant residues).
• Twisted links guarantee accurate adaptation to the terrain, smooth running, even with a large width of the mesh harrow.
• Teeth with a high passage (up to 25 cm).
•Due to the gyroscopic movement of individual spring teeth and the small step of the tooth trail, accurate and gentle processing of plants is ensured.(//tractor-service.com)
• Movable link of the mesh harrow
• The unique design of the frame provides sufficient strength and optimal weight of the weapon.
•Wide range of adjustment of the position of the teeth, 10 positions.

Characteristics of Hatzenbichler "Stiegel 12+ Air 12":
• working width - 12 meters;
• version - hinged (on the 3rd point of the tractor); 175
•количество секций – 8 секций по 1500 мм;
• tooth thickness – 7 mm
•wheels – 4 support wheels;
• weight – 1170 kg;
• the power of the tractor is 90 hp;
•transport width - 3 meters.
