Vacuum syringe Vemag HP 10 E type 161, Ball Control 237, Kyiv

Production:
- Non-separable 250 liter funnel, with removable feed auger, scraper,
tipper and stabilizer
- Output funnel with a diameter of 100 mm
- Integrated vacuum pump with a capacity of 16 m3/h

- Standard screws 913310098
- Sleeves are standard 920310123
- Spool holder 936315005

Integrated can-bus control:
- Graphical representation of settings, functions and errors
on a TFT color screen
- Ability to store 99 programs
- Portion weight adjustable from 1 to 99.999 g

- Rate of portioning > 950 portions/min., depending on weight, size
tubes, number of revolutions
- Ability to connect additional machines and devices
- Vemag DuoDrive with a separate drive for the working and feeding screws

- 7.0 kW AC-Servo auger drive
- Feed screw drive 4 kW AC motor with frequency converter
- The filling speed is smoothly regulated up to 5,700 kg/h
(when using working screws with a lift of 48 mm)

- Socket for connecting additional devices
- Body of the machine from stainless steel with a folding attack
- Nominal total power: 16 kW

- Number of revolutions of the auger: 385 rpm.
- Feeding auger for a funnel of 250 l.
- Reinforced scraper 165302080

The price includes:
- VEMAG manual loading device for HPE with a funnel of 250 l. 163400002,
for standard trolleys 250 l., side entrance, hydraulic
- Insert in the funnel 130 x 140 mm 142300150
- Control of vacuum and blowing of screws for HPE / DPE 163960026
- Sealing of the vacuum pump during a pause in the work process
- Prevention of oil loss by direct/free vacuum
- Blowing the transport system during a pause in the work process(//tractor-service.com)
(with the help of an adjustable vacuum, pulling the product into the vacuum field
transport system or viewing window does not occur)

- Additional socket for connecting additional devices 160892701
- CAN-BUS socket 160892502
- Installation material for CAN-BUS HPE / DPE
- Remote control socket in the syringe forconnecting scales 877
- It is possible to connect only one outlet 877870106

2 VEMAG standard trolleys
- Art. No. 096010001
- Stainless steel steel
-Wheels made of plastic
- Reinforced edging
- Capacity 200 l.

- Adapter coupling with two-way thread 930900010
- Belt pulley PowerGrip GT3 8MGT z=38n
- Belt pulley PowerGrip GT3 8MGT z=39n

- Clamping roller M60/120-0 Ra250n
- Cylinder. nut M16x80DIN912-A2
- Cylinder. belts PG880-8MGT-50 teeth: 110n

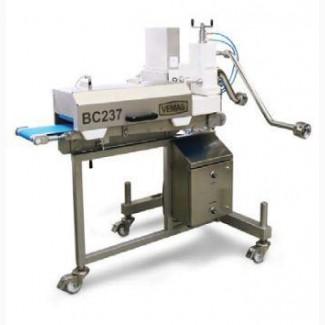

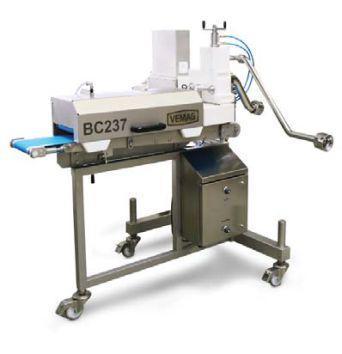

1 VEMAG Ball Controll 237 per bed
- For making meatballs, cutlets and croquettes
- Connects to a vacuum syringe
- 2 exhaust pipes

- incl. instrument 24 mm 237601240
- incl. bed onwheels
- It is possible to connect a rotary nozzle 982

- Max. 500 strokes/min., depends on the portion size (at 20 g = 600 kg/h)
- Weight range: 1 g - 120 g, D=10 - D=60 mm

- Connecting tube in the kit. 867368000
- Adapter coupling with double-sided thread 848020165
necessary when combining VEMAG syringes with third-party machines

- Wet cleaning
- Format 28 mm 237601280
- Format 32 mm 237601320
