Pneumotube (pneumatic tube), Rivne region.

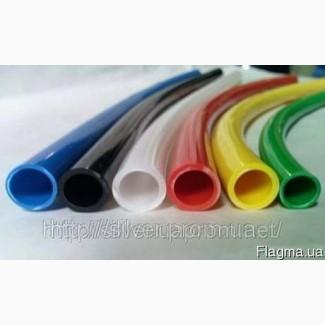

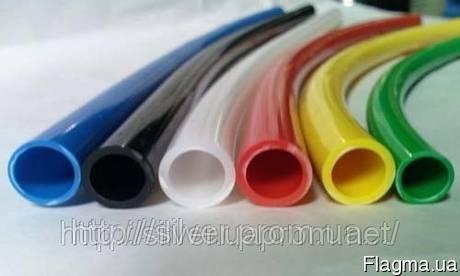

Pneumotube (pneumatic tube)

Tube pneumatic polyurethane tpu, 130
Трубка пневматическая полиэтиленовая pe,
Tube pneumatic polyamide Rilsan (Rilsan) PA12,
Tube pneumatic teflon ptfe

Rilsan polyamide tube (Rilsan) is used for air transmission in high-pressure pneumatic systems and systems with high requirements for the reliability of line air supply. The working temperature of the pneumatic tube: -40...+100°С

A polyethylene pneumatic tube (polyethylene pneumatic hose) is used to transmit air in standard pressure pneumatic systems. Properties: safe from the point of view of physiology, resistant to the effects of acids, alkalis, salts, resistant to most solvents, hermetic, flexible, shock-resistant, resistant to sudden temperature changes, light, heat-resistant to: - 40° C, flexible, + 60° C, resistant to compressive load + 80° C, resistant to deformation.

The peculiarity of the pneumatic tube made of polyurethane is high elasticity and smoothness of the surface. A polyurethane tube is used for air transmission in standard pneumatic systems. Polyurethane hose is widely used in dynamic (mobile) pneumatic systems, where the elasticity of the tube is especially important. It has excellent resistance to oils and solvents, does not undergo ozone aging.
Working temperature for polyurethane tube: -40...+60С
(//tractor-service.com)
Heat-resistant PTFE pneumatic tube is used for laying pneumatic supply lines through areas with high temperature or the content of aggressive substances.
The material PTFE (Teflon) is the most resistant plastic to the effects of aggressive substances (acids, alkalis, vapors) today. Ptfe pneumatic hose has almost ideal dielectric properties, is resistant to ozone and ultraviolet rays.
Working temperature of teflon ptfe pneumatic tube: -60...+260С

The size of the tubes: 147
4х2х1мм.
5x3x1mm.
6x4x1mm.
8x6x1mm.
8x5.5x1.25mm.
10x8x1mm.
12x10x1mm.
14x12x1mm
Pressure from 6 to 40 atm.
