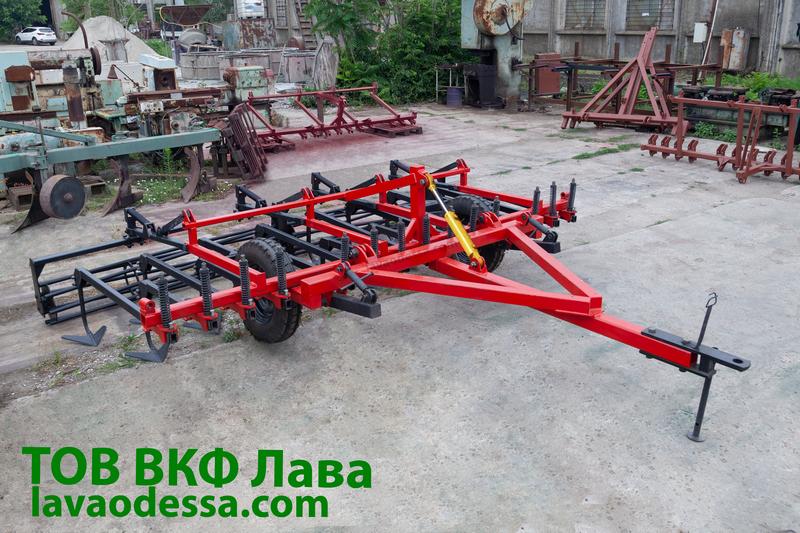

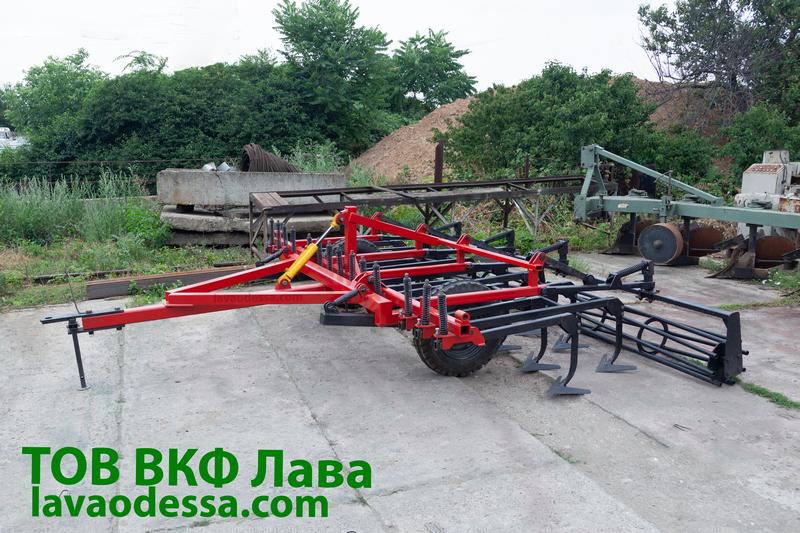

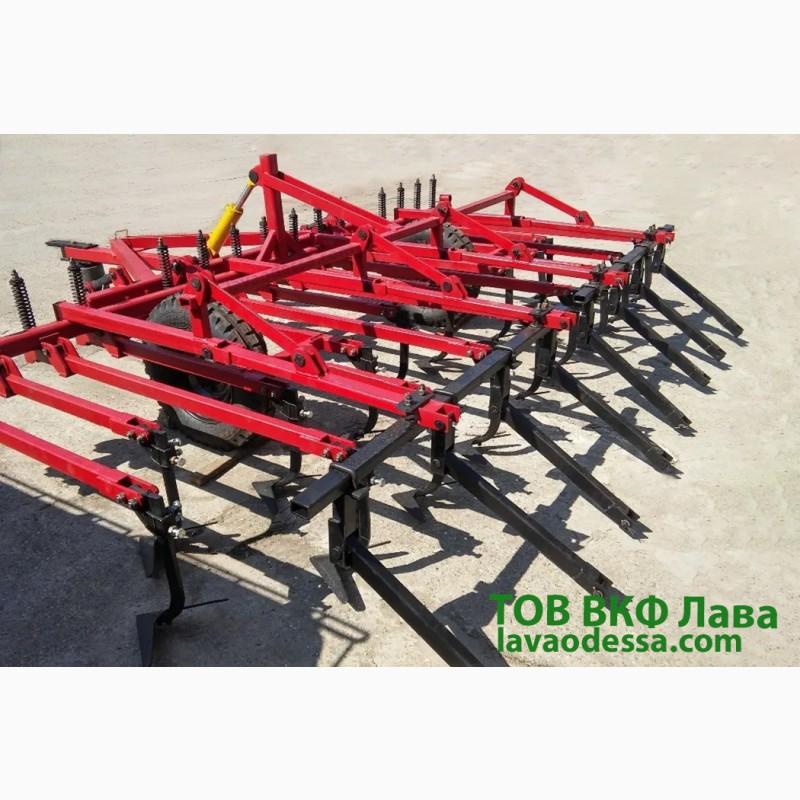

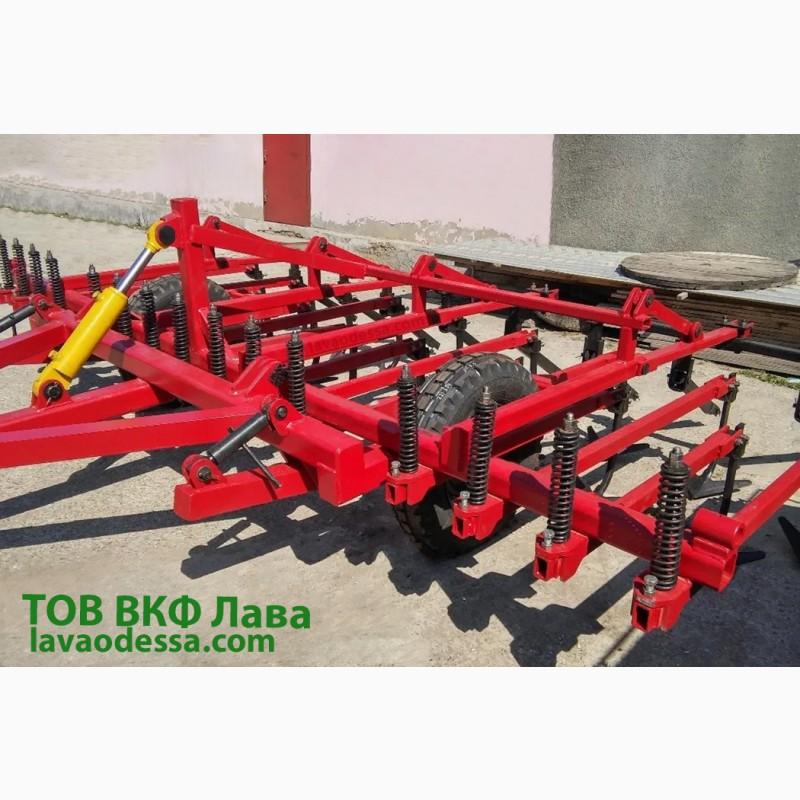

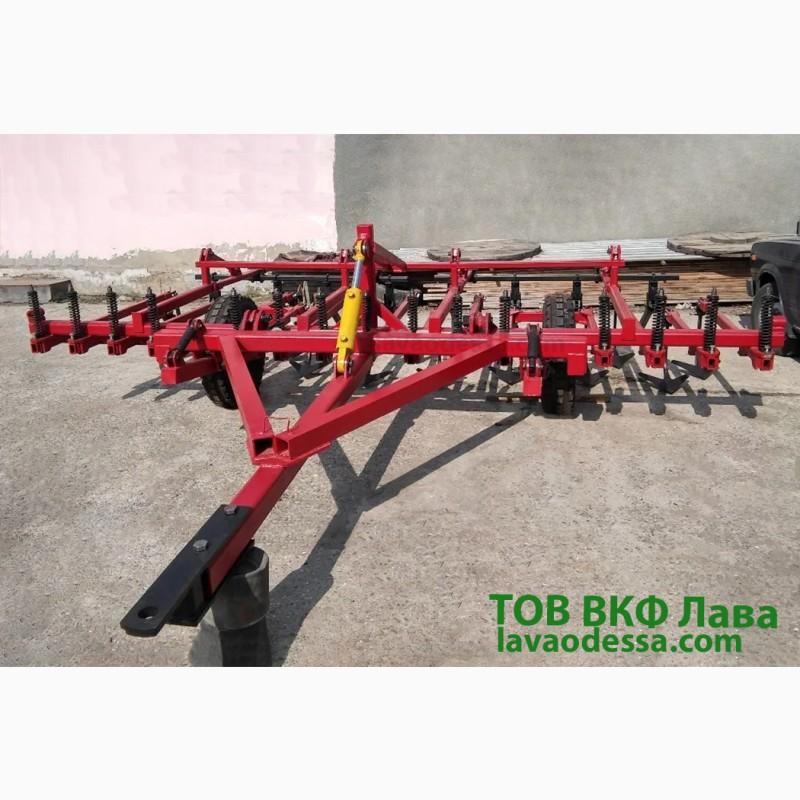

KPS-4 semi-mounted cultivator. Plant Odesa, Odesa region.

Cultivator of pre-sowing tillageKPS-4 is intended for complete pre-sowing tillage forgrains and technical crops, care for pairs, with simultaneous harrowing, leveling and crushing.
The cultivator is used in all soil and climatic zones, excluding stubble backgrounds and soils littered with stones, slabs and other obstacles, with a specific resistance of 0.9 kgf/cm2 (1.0 MPa) and humidity up to 25%.
The cultivator is aggregated with 80-100 hp tractors. (MTZ-80/82, YMZ-100/102, etc.).

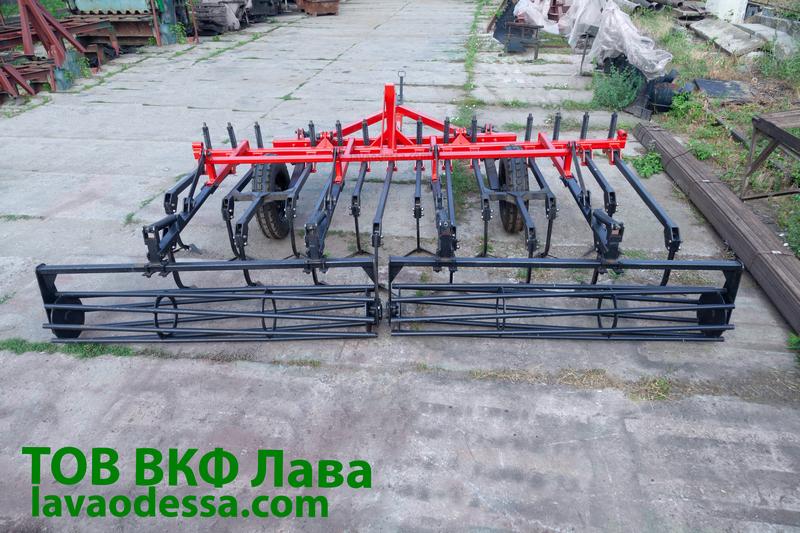

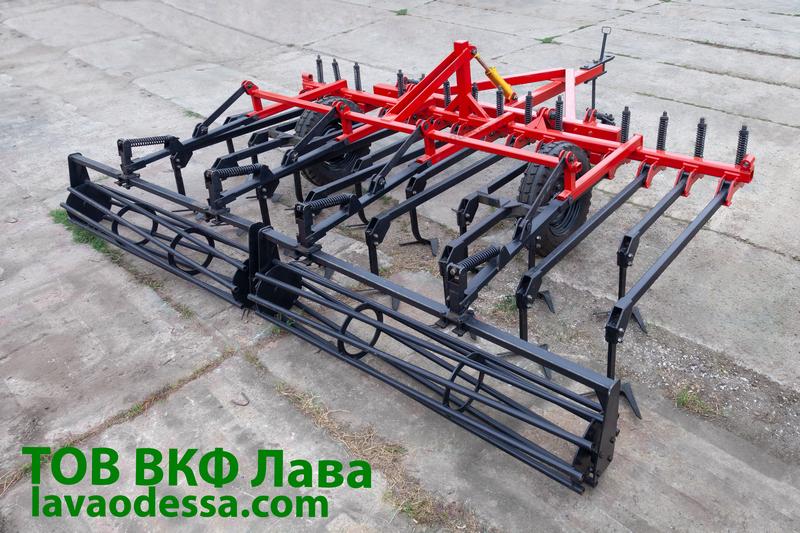

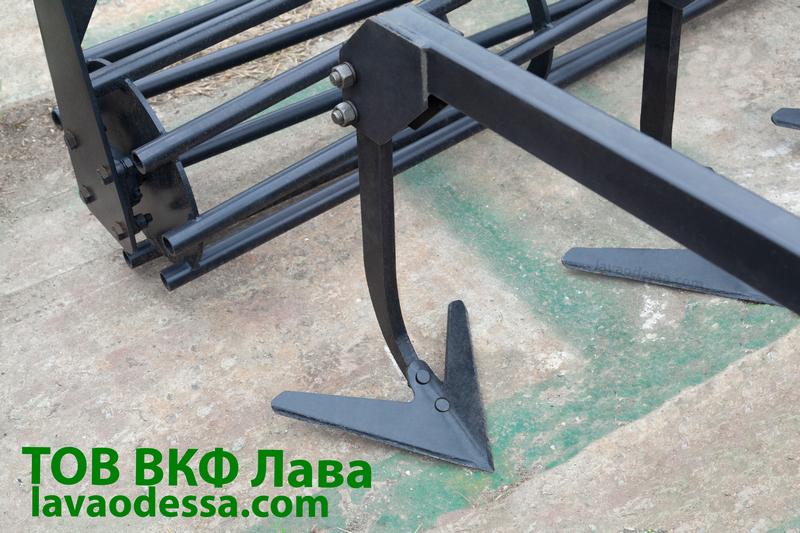

There is also a version of the KPS-4 cultivator with rollers (photos 6-13). Check the price with our manager.

Technical characteristics:
1. Cultivator width - 4.0 m
2. Processing depth - 5-12 cm
3. The distance between the working bodies in the course of movement - 600 mm.
4. Mass - 1100 kg
5. The working speed of movement in the main operations - up to 12 km/h.
6. Transport speed, no more than 25 km/h.
7. Paw grip width - 330 mm
8. The number of working bodies - 16 pcs.
9. Productivity in 1 hour. - 5 ha/h(//tractor-service.com)
Overall dimensions, mm: 163
довжина - 4800
width - 4100
height - 1200

Advantages:

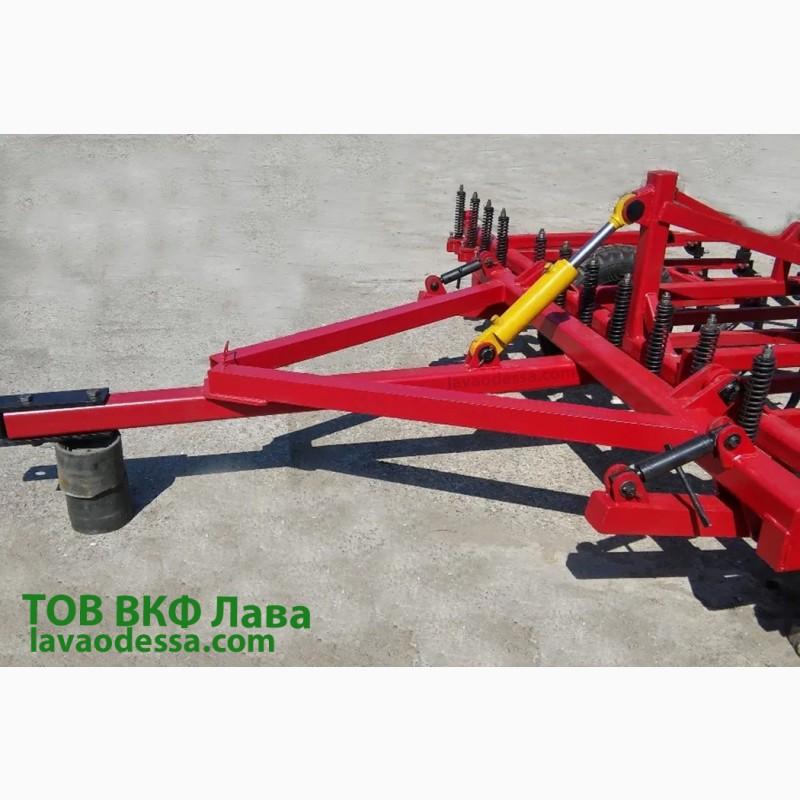

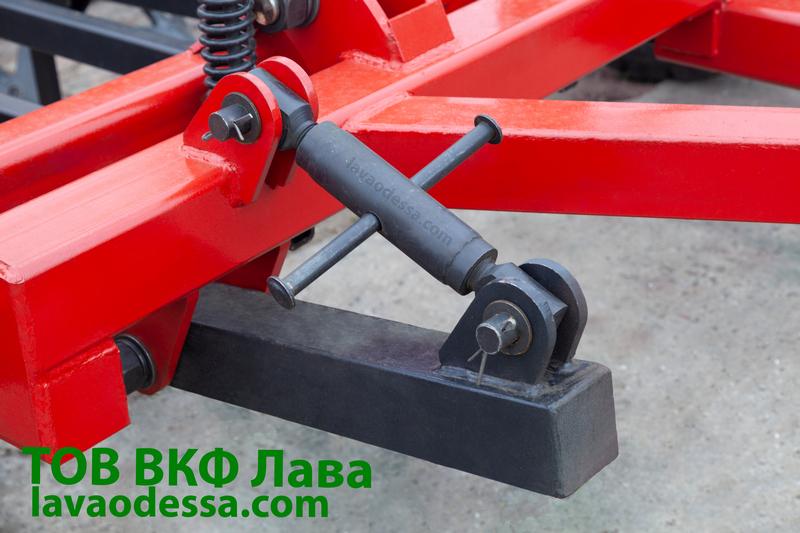

1. A new design solution for attaching (connecting) the trailer and the frame eliminates the lifting of the entire cultivator to adjust the processing depth and adjust the height of the rear row of racks of the working bodies;
2. The processing depth is adjusted by simply raising or lowering the support wheels.
3. Reinforced frame design ensures maximum strength and reliability of the cultivator.
4. The shafts are made of a profile pipe 40x60 mm, 5 mm thick.

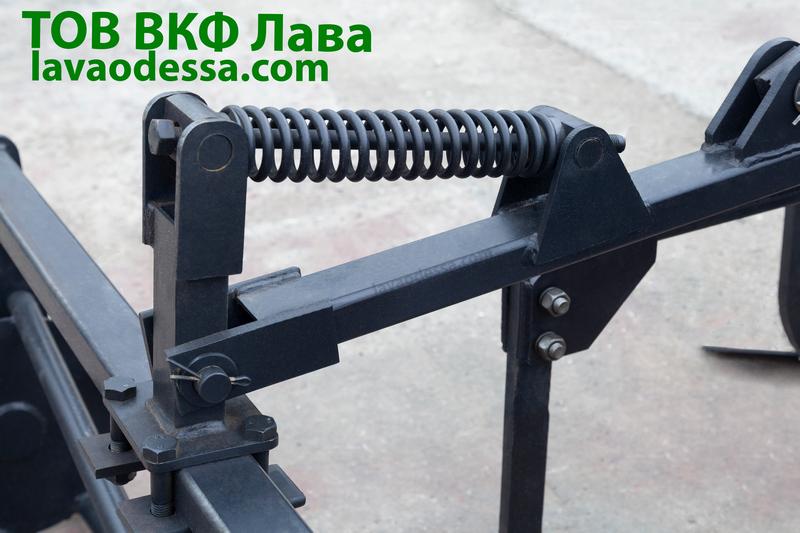

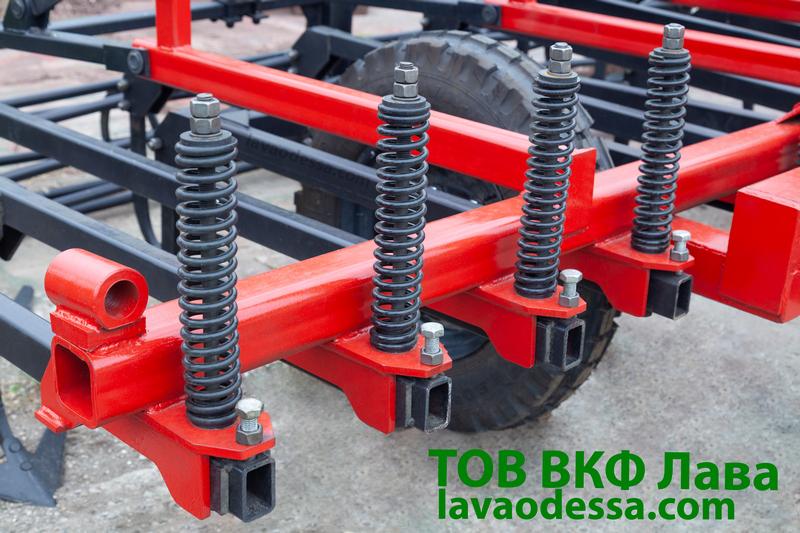

5. The spring of the shock absorbers is made of spring-spring steel, 8 mm thick.

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by motor vehicle.
Questions can be asked at the indicated phone number.
