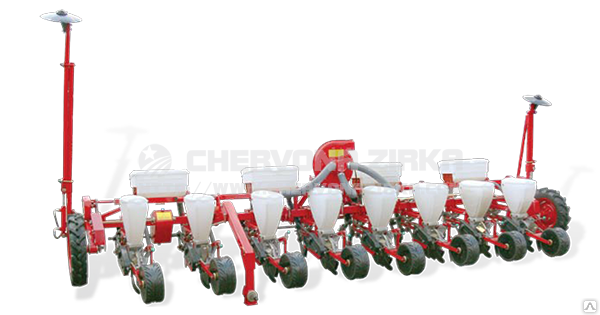

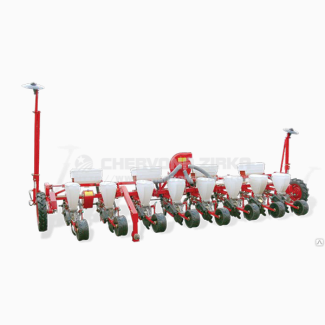

Universal pneumatic seeder VESTA 8 PROFI (UPS-8A) is intended for
precise sowing of calibrated seeds
grain crops (corn, sorghum);
зерновых культур (кукурузы, сорго);
leguminous crops (soy, beans, lupine and forage beans);
technical crops (sunflower, castor bean)
with the simultaneous introduction of granulated mineral fertilizers separately from the seeds and rolling of the soil in the rows.
It is possible to sow uncalibrated seeds, but in this case the accuracy will directly depend on the difference in size and the degree of damage of the seed material.
Precise seed drills ensure sowing at the final density, excluding the use of manual labor when forming the required interval between plants.
Due to the arrangement of the axis of the support-
drive wheels on the same line with the grain coulters, synchronous copying of the field relief is achieved by both the frame and the sowing section.
The low location of the seeding device ensures the minimum distance from the seed drop point to the seed bed and guarantees the accuracy of seed placement in the row.
VESTA planters can be equipped with removable coulters for sowing corn and sunflower seeds or coulters for sowing beet seeds.
Powder coating of metal parts guarantees protection against corrosion for at least 8 years.
Seeding device of VESTA planters:
(//tractor-service.com)
the amount of seeds that falls from the hopper into the seeding chamber is regulated by the shutter;
the comb-type discarder of excess seeds ensures accurate single-grain sowing;
the presence of a viewing window allows visual control of the quality of the seeding device during the adjustment process;
an unloading hatch is provided for quick removal of seeds from the chamber of the seeding device;
a harrow is installed on the sowing disk, which prevents the compaction and suspension of seeds in the chamber of the sowing device.
Planters of the VESTA model series have plastic hoppers.
At the corn seeding rate of 5 seeds per 1 linear meter, the VESTA 8 seeder can sow 7 hectares without recharging.
All drive shafts of grain and fat seeding devices are mounted on rolling bearings.
The seed drills are equipped with a durable hydroficated marker with a disk of a larger diameter, which has the ability to change the angle of attack to obtain a clearly visible trace.
Powder coating of metal parts guarantees protection against corrosion for at least 8 years.
Planters of the VESTA, VESTA PROFI series are mounted and aggregated with tractors from 80 hp.
Control system VEGA PROFI seeders are equipped with the HELIOS electronic control system, VESTA and VESTA PROFI seeders are equipped with the SPUTNIK electronic control system, which control the flow of seeds in each coulter, the speed of movement and transmit information to the monitor installed in the tractor cabin, which allows you to keep track of the sown area.
Basic set of VESTA 6 and VESTA 8 discs for sowing various crops.
