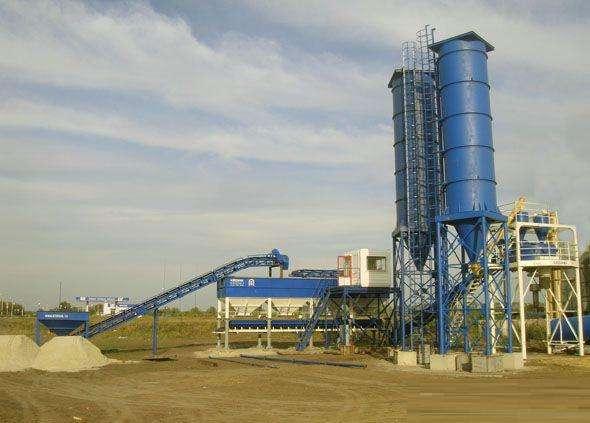

Stationary concrete plant Polygonmach S 100 (80-100 m3/hour) Turkey, Kyiv

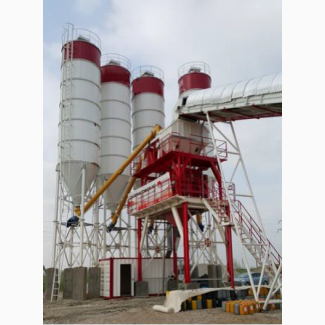

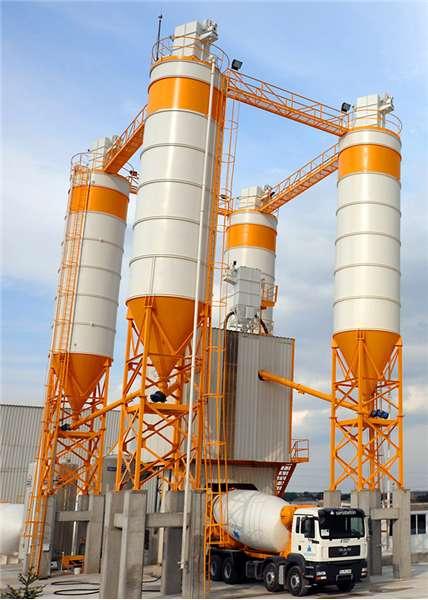

Stationary concrete plant Polygonmach S 100 (80-100 m3/hour)

Productivity up to 100 m3/hour of compacted concrete.

Supply of inert materials - conveyor belt.

1. Bunkers of aggregate materials - 4 x 25 m3

2. Unit weighing hopper - 10,000 kg

3. Conveyor for supplying aggregate materials - 800 x 13,000 mm

4. Material loading conveyor – 800 x 28,000 mm

5. Support frame of bunkers

6. Mixer - platform and supports.

7. 2-shaft mixer (Option 1-shaft or Planetary) and lubrication system - 2 m3

8. Cement weighing capacity - 1200 kg

9. Water weighing system - 1000 l.

10. The chemical weighing system.additives – 40 l. galvanized

11. Pneumatic system

12. Control room with air conditioning.

13. Control computer, printer.

14.Cement silo - from 100 t to 500 t (Option)

15. Cement auger (Option)

16. Silo filter - 24.5 m2 filtration area (Option)

17. Level sensors, pressure valves and other components. (Option)

Bunkers of aggregate materials :

Volume: 100 m3

Number of compartments: 4 x 255 m3

OLI vibrator (Italy) 2 pcs., 0.37 kW

Service platform (on the one hand).

Aggregate weight hopper: 10,000 kg

Aggregate conveyor:

Conveyor dimensions: 800 x 13,000 mm

Electric motor: 18 kW,

Bearings: FAG or SKF Reinforced housing

Aggregate material supply conveyor :

Conveyor dimensions: 800 x 28,000 mm

Bearings: FAG or SKF Brand

Tape: EP 125 quality, Number of layers: 4, Rubber tape thickness: 10 mm

Brand: Derby

Aggregate storage bunker :

Volume: 2 m3

Mixer platform and support:

Unloading height: 4.2 m.

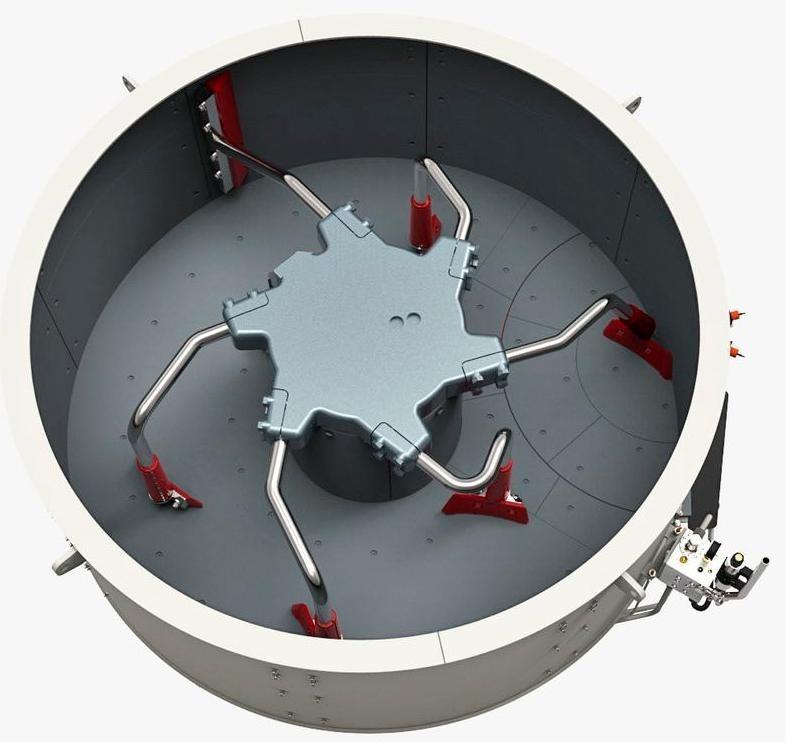

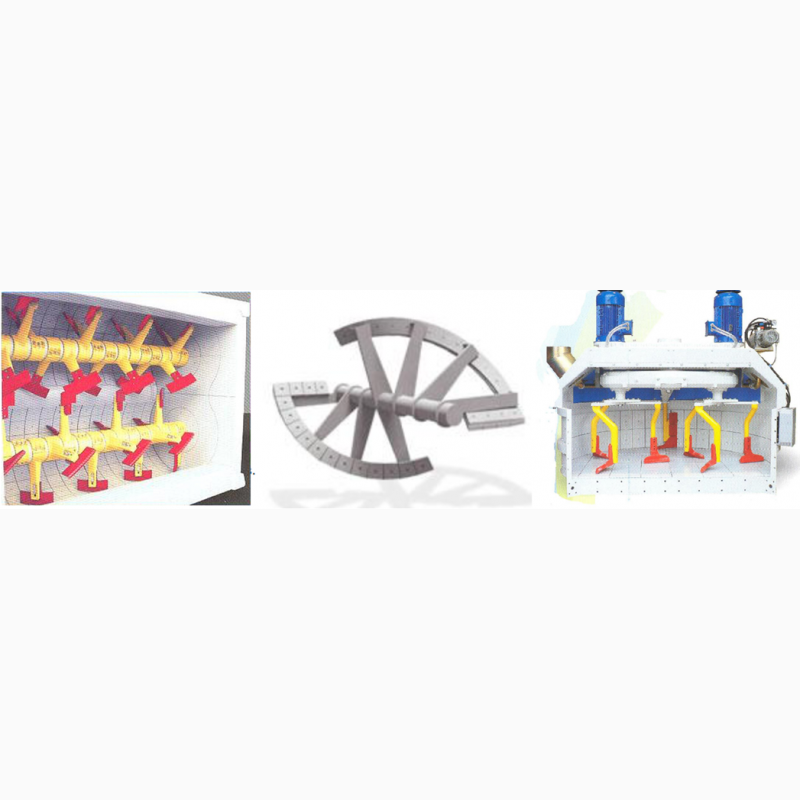

7- Mixer 2 shaft type. Option: 1-shaft or Planetary.

Loading volume: 3 m3.

Volume of unloading: 2 m3.
(//tractor-service.com)
Mixer motors: 2*40 kW, 1450 rpm

Gearbox: Reinforced type.

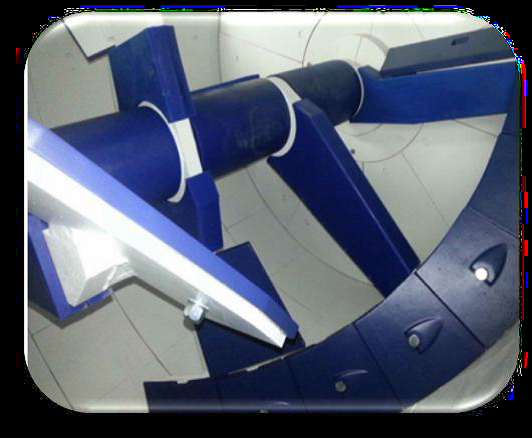

Bottom and side inner plate made of wear-resistant Ni Hard metal, 12 mm thick, minimum hardness 600 HBW;

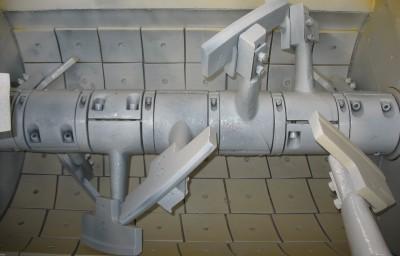

Mixing blades - wear-resistant metal.

Mixing and scraping blades NI-Hard Cast iron, hardness: 700 HBW

Cement weight bunker:

Volume: 1200 kg

Strain gauges, 3 pcs., 2000 kg/each. (Pulse)

Selector: 1 pc., 0.18 kW, (Oli - Italy)

Water weighing system:

Weighing volume: 1000 l.

Strain gauges, 3 pcs., 1000 kg/each. (Brand : Pulse)

The system of chemical supplements:

Volumecapacity: 40 l. Galvanized

Strain gauges, 1 pc., 100 kg. (Pulse)

1.0 Pneumatic system:

Compressed air cylinder: 1000 l.

Mark (Atlas – Copco) USA

Power: 4 kW

Air pressure: 10 Bar

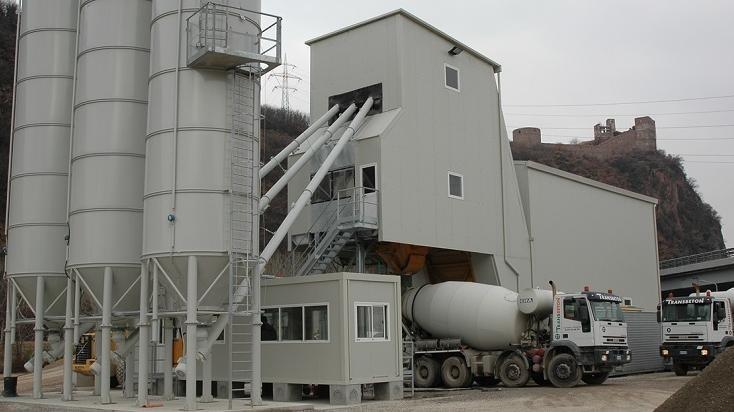

Control room:

Dimensions: 4000 (L) * 2400 (W) * 2200 (H) mm.

The walls are made of sandwich panels with a thickness of 40 mm. 9000 BTU.

Air conditioner.

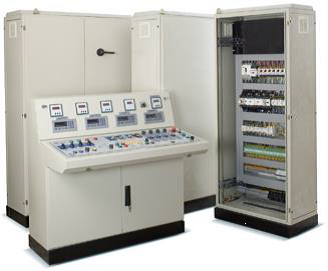

Computer management:

The automation system includes:

* Power panel and switches

* Dosing control terminals

* Automatic control unit

* Software

* Control panel

* Computer, screen and plotter (HP brand)

* PLC panel (Siemens brand)

Electronic components are Siemens.

- The plant is fully automated and the system is controlled on a PC.

- The system is equipped with electrical installation devices and Siemens sensors. Remote stations with distributed input-output stations are also part of the automation of the enterprise.

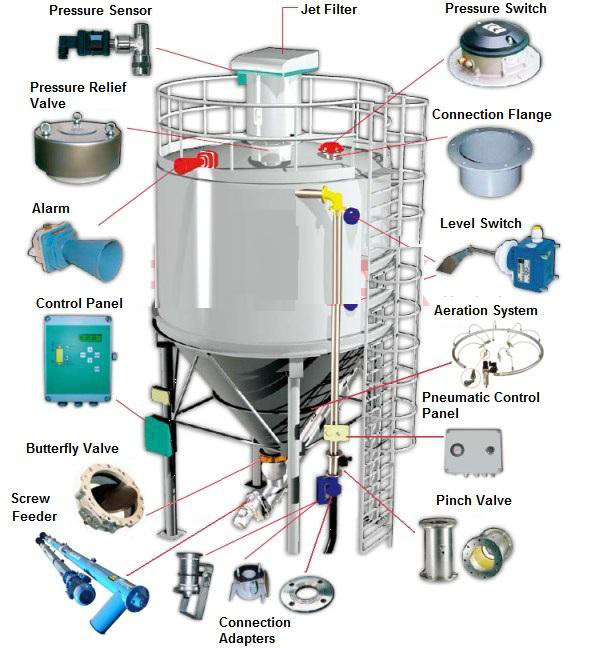

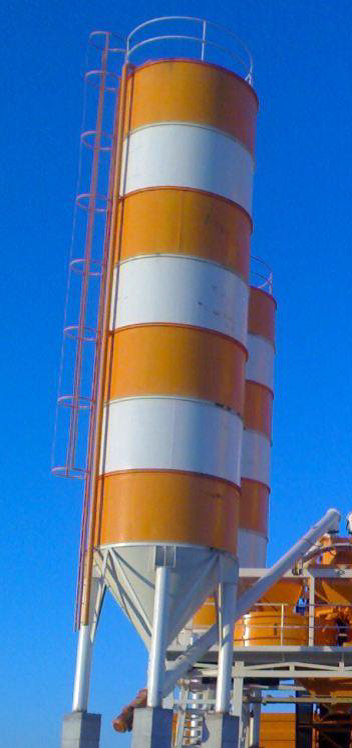

Cement silo (Option)

Volume: about 100 T (Or the second one up to 500 t).

Auger (Option)

Size: from Ø 219 x 8,000 mm and more.

Brand: WAM (Italy)

Silo filter (Option)

Warranty 24 months.
