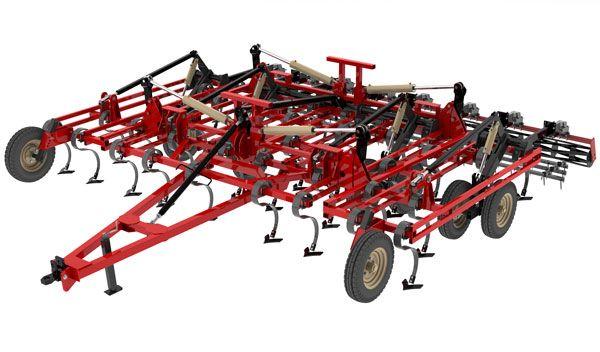

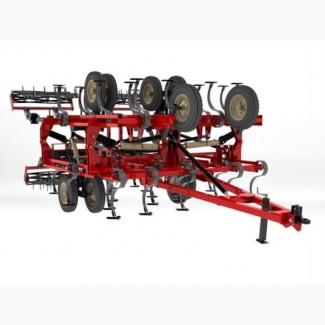

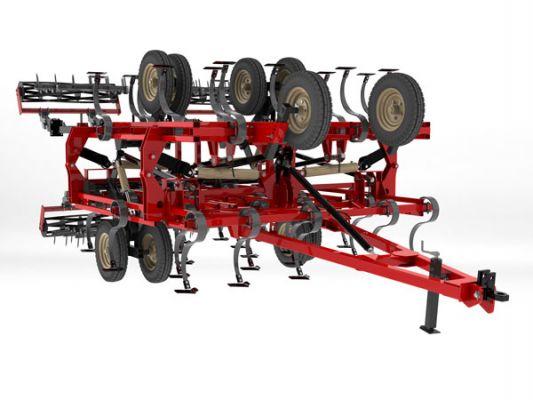

Trailed cultivator KPS-6PMU (double rocker wheels) five-row TM VOSHOD, Cherkasy region.

Trailed cultivator KPS-6PMU (Required tractor power, 150-200 hp)
Production — TM "Voskhod"
Compensation -25% for TM VOSHOKD equipment
+380xxxxxx +380xxxxxx

Technical characteristics
Trailer type
Working width of capture, m 6.0
Productivity, ha/time 6.0
Depth of soil treatment, cm 5-12
Mass, kg 3800
Number of sections 3
The number of rows is 5
Number of working bodies 39
Required power of the tractor, hp 130-170

Cultivator KPS-8PMU is intended for soil preparation for sowing agricultural crops and care for crops and can be used in all climatic zones of Ukraine on soils of different mechanical composition with a hardness of up to 1.6 MPa and humidity of 8-30%. Cultivators are allowed to work on slopes 8.(//tractor-service.com)

Advantages of cultivators of the PM series

• uniformity of processing depth over the entire width and length of the grip;

• even sole of the treated area;

• leveling and partial compaction of the soil;

• low probability of clogging elements with plant residues;

• high processing productivity;

• rigid and durable frame construction;

• simplicity and reliability in use.

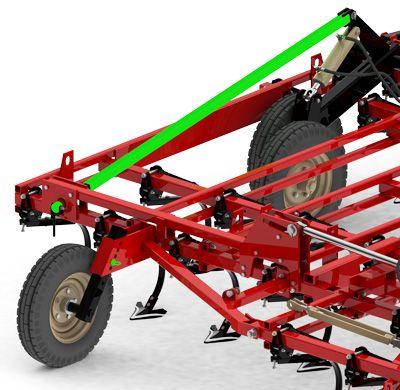

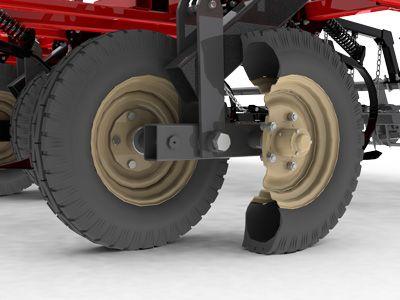

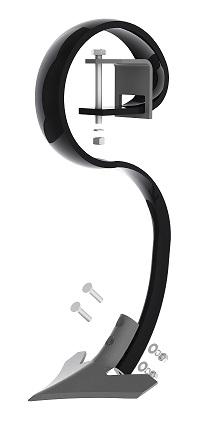

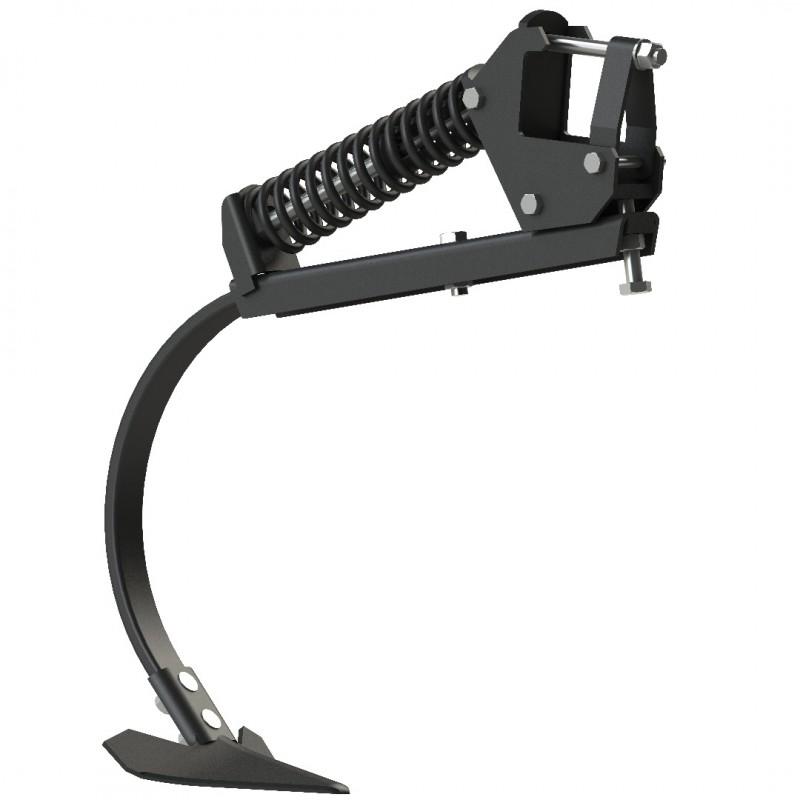

The frame of the bridge construction of the KPS-6PMU cultivator provides high strength and reliability, while maintaining a low weight. Having a rigid hitch, the design of the cultivator ensures parallel raising and lowering of the unit relative to the surface being processed during turns and moves. Uniform lifting of the cultivator relative to the hitch with the tractor is ensured by the mechanism connecting the drawbar of the unit with its internalwheels. The uniformity of the lifting of the central part of the cultivator and its wings is ensured by the design of the hydraulic cylinders of the wheels and the sequential scheme of connecting the hydraulic cylinders. The pitch of the working bodies of the KPS-8PM wide-grip cultivator is 152 mm, the width of the paw of the working body is 230 mm, which ensures that the working bodies completely overlap each other during processing and increases the service life of the paw. Working bodies are placed on five main parallel beams and an additional sixth. This number of rows makes it possible to ensure a sufficient gap between the working bodies for the passage of plant residues during processing. The distance between the rows is 765 mm, which also increases the capacity of the cultivator and prevents it from clogging.
