New FOTON FT 504 Tractor in Ukraine, Kyiv

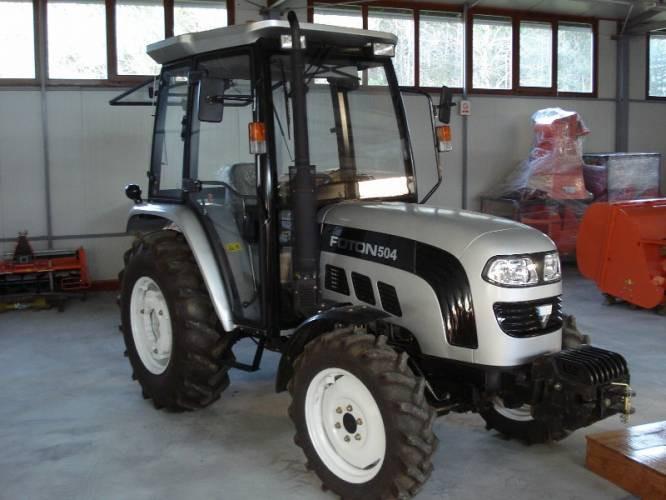

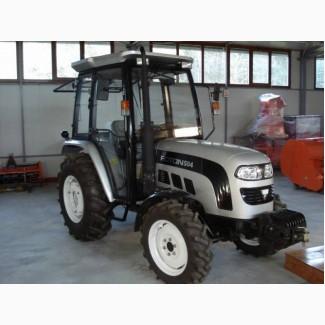

New FOTON FT 504 Tractor

Tractors Foton FT504 is characterized by its compactness, ease and speed of control, considerable lifting power and ease of maintenance. Four-cylinder 50 hp. diesel engine (QC498) with water cooling, starter start, rear three-point hitch, wheel formula 4×4, steering with GORK, two-speed GDP, 8+8 gearbox, comfortable cab with heating, front ballast.

Technical characteristicsFOTON tractor FT 504
Wheel formula 4×4
Dimensions (L×W×H), mm 3980×1650×2450
Engine power, hp (kW) 50 (36.8)
Working volume of the engine, l 3.168
Number of cylinders 4
Gearbox (reverse) 12/12
Fuel consumption, ≥ g/kWh 248
GDP rotation frequency (rpm) 540/1000
Wheelbase, mm 1990(//tractor-service.com)
Front wheel track, mm 1250
Rear wheel track, mm 1300-1500
Minimum agrotechnical clearance, mm 280
Total weight (structural), kg 1890
Total weight (operating), kg 2080
Traction force, kN 13.5
Load capacity of the hinged system, kN 8.3
GORK steering control
Additional information Cabin with heating

2014.
New
3-year warranty
From the moment of sale
