Signaling, Seeder UPS-M, SUPN prykatkoy, SU-8M, Kirovohrad region.

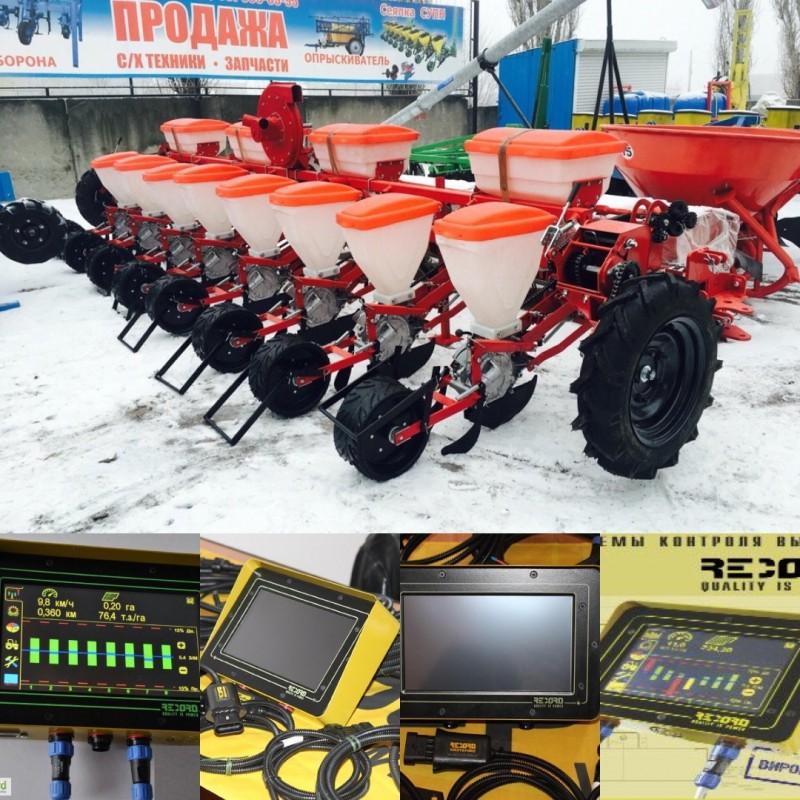

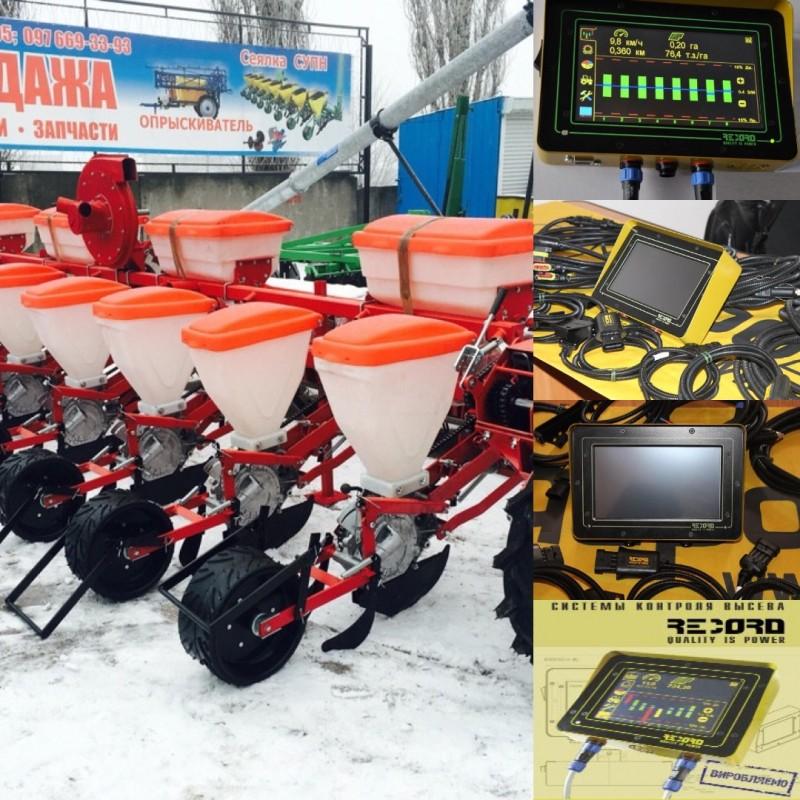

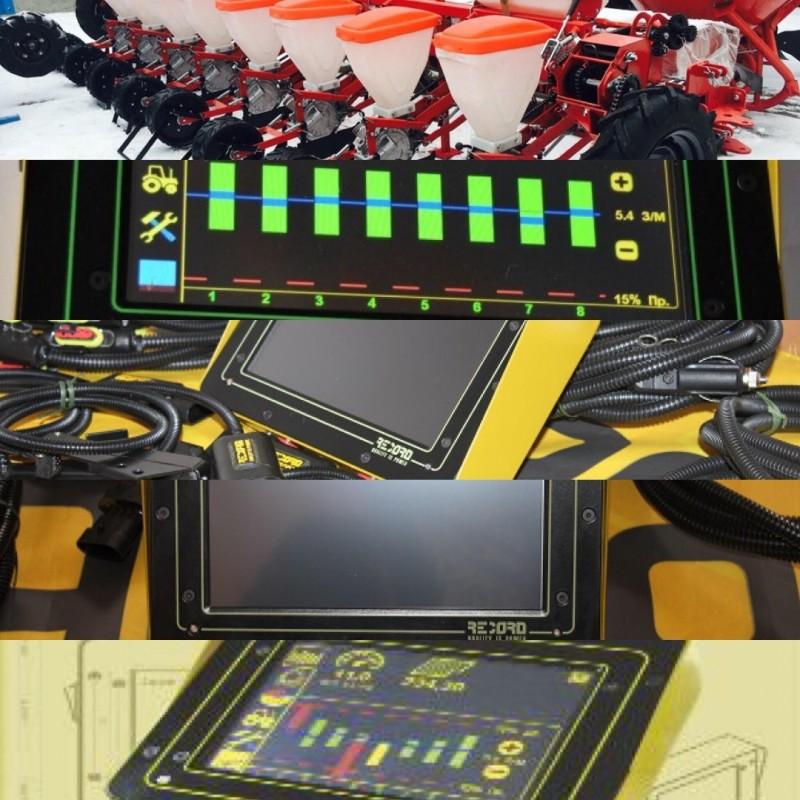

Universalpneumatic seed drill for precision seeding
The seed drills are equipped with a durable hydroficated marker with a disk of a larger diameter, which can be changed at an angle to obtain a clearly visible trace.
To order, the seed drills are equipped with a transport device, which allows you to move them along general purpose roads without the use of additional means of transport.
The semi-automatic coupling provides a quick and safe connection of the seeder with thetractor.
The hitch has the ability to move along the frame beam, which allows sowing with 450 mm row spacing tractors, which do not change the track width (for example, T-70C).
The seeder is equipped with a centrifugal fan driven by the tractor PTO 540 rpm.
For guaranteed retention of heavy seeds of leguminous crops (soy, etc.) on the holes of the seeding discs, the fan of the seeder is equipped with an additional air duct.(//tractor-service.com)
There is a flap on the fan to regulate the vacuum of the air flow.
The fan is equipped with an overrunning clutch that protects the belt transmission from increased wear.
The frame of the seeder acts as a receiver, which ensures the same vacuum in all seeding devices and eliminates the pulsation of the air flow.
The SPU-6M sowing section is equipped with a coulter for sowing corn and sunflower seeds. The parallelogram section provides better copying of the relief of the field.
The comb-type discarder of excess seeds ensures accurate single-grain sowing.
The presence of a viewing window allows visual control of the quality of the seeding device during the adjustment process.
An unloading hatch is provided for quick removal of seeds from the chamber of the sowing device.
A harrow is installed on the seeding disk, which prevents compaction and suspension of seeds in the chamber of the seeding device.
