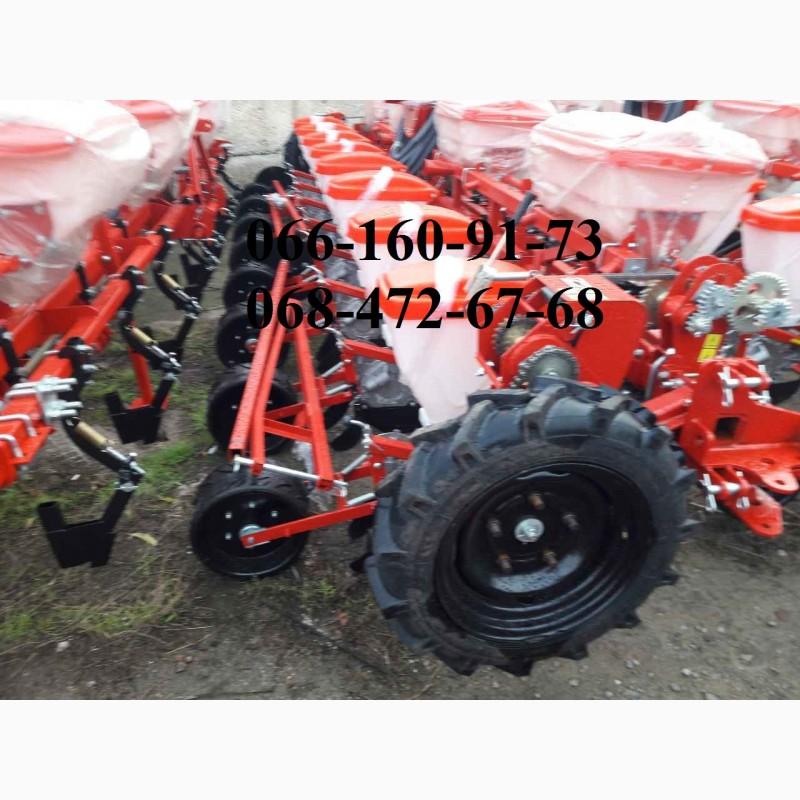

Ups-8 seeder, Mykolaiv region.

UPS/8 seeder, pneumatic, gap,precision seeder
All seed drills are supplied with a sowing section equipped with a 2-circuit drive of a new design. Reliable protection of the drive ensures work on fields clogged with plant residues.
Pneumatic seeding devices of precision sowing seeders reduce the percentage of seed crushing by 10 times compared to mechanical ones.
All drive shafts of grain and fat seeding devices are mounted on rolling bearings.
Due to the arrangement of the axis of the drive wheels on the same line with the grain coulters, simultaneous copying of the field relief is achieved by both the frame and the sowing section.(//tractor-service.com)
A tread with grippers ontyres support-drivewheels reduce their slippage, which ensures a given interval between seeds.
The seed drills are equipped with a durable hydroficated marker with a disc of a larger diameter, which has the ability to change the angle of attack to obtain a clearly visible trace.
Completeness of the seeder with a transport device allows you to move it along general purpose roads without the use of additional means of transport.
The semi-automatic coupling ensures quick and safe connection of the seeder with the tractor.
The hitch has the ability to move along the frame beam, which allows sowing with a row spacing of 450 mm with tractors that do not change the track width (for example, T-70C).
To create a uniform vacuum, necessary when sowing heavy seeds of leguminous crops (soy, etc.), the fan is equipped with an additional air duct. The beam of the seeder frame is the receiver of the pneumatic system of the seeder, it reduces the pulsation of the air flow, which allows you to obtain uniform seeding on each section.
