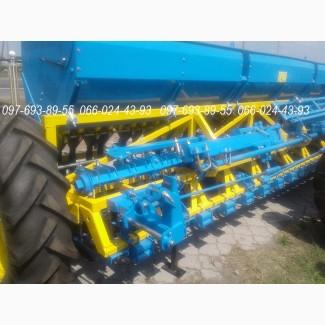

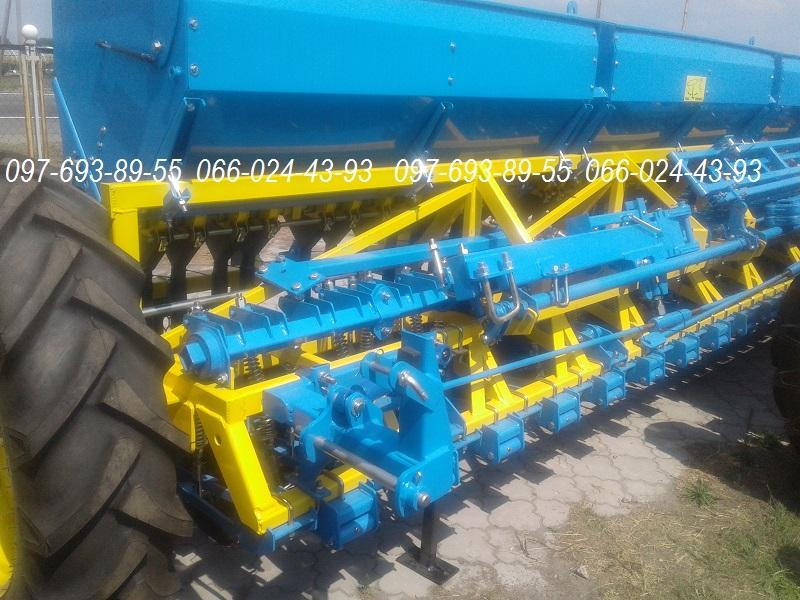

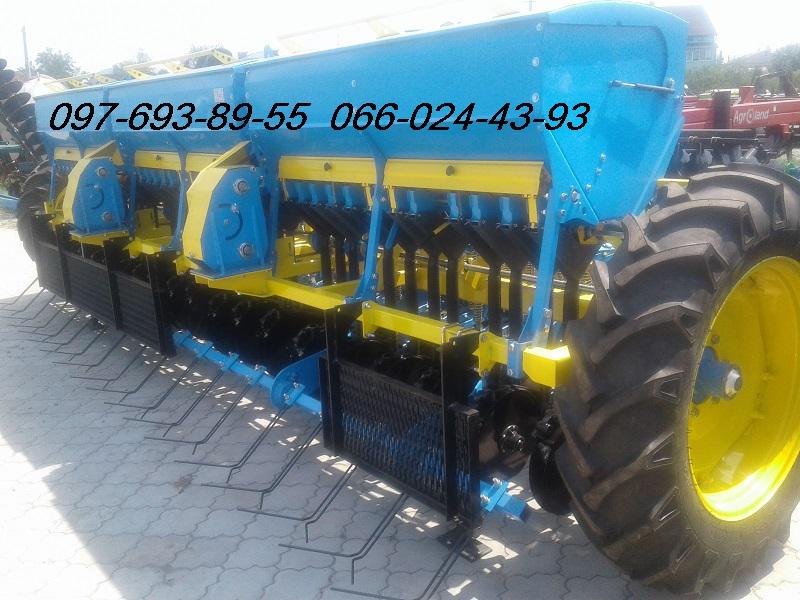

For sale Grain seeder SRZ 5.4, Dnipropetrovsk region.

Grain seeder SRZ 5.4 Main advantages
Reinforced frame
New model gearbox (18 gears)
Reinforced independent leash on metal-ceramic bushings
Anti-corrosion coating (galvanic) of individual units
Hydrogenated marker system
1.5 times larger bunker (compared to the base model)
Increased width of support and drive wheels
Wheel hubwheels steel, stamped welded
The thickness of the leash bar is 10 mm.
Intermediate shaft on bearings
Spring wrapper
The bar is made of a rod (15 mm)
Reinforced spring that increases the pressure of the coulter on the soil.
Powder coating in detail
Coulter discs - Bellota (Spain)

The SRZ-5.4 seeder is intended for regular sowing of grain seeds (wheat, rye, barley, oats), leguminous crops (peas, beans, soybeans, beans, chickpeas, chickpeas, lupins) with simultaneous application of mineral fertilizers. It can be used for sowing seeds of other crops, close to grain crops in terms of seed size and sowing rates (buckwheat, millet, sorghum, etc.).
The seeder is aggregated with tractors equipped with engines with a power of 80 hp.
It is recommended to be used on fields of 20 ha.
Due to the increase in the grip width, productivity increases by 1.5 times compared to the base model SRZ-3.6. The engine of the MTZ-80 tractor is loaded up to 85% of its power, which allows you to save up to 20% of fuel.
When using the SP-10.8 hitch of the hydro-treated wide-grip unit from two SRZ-5.4 seed drills.
The hitch is aggregated with tractors with a power of 150 hp.
The seeder is equipped with various coulters and sets of working bodies, thanks to which it can be converted from one version to another in the conditions of the farm.(//tractor-service.com)
SRZ-5,4 is intended for row sowing, equipped with two-disc single-row coulters and finger wrappers.
SRZ-5,4-01 - for narrow-row sowing, equipped with two-disc two-row coulters and finger harrows.
SRZ-5,4-02 – for row sowing, equipped with two-disc single-row coulters and roller rollers The unified design of the "coiler and rolling roller" assembly allows you to adjust the coiler to a certain seed embedment depth with an interval of 1 cm. Maintaining the embedment depth parameter affects uniform germination.прикатывающими катками.
Единая конструкция узла "сошник и прикатывающий каток" позволяет настраивать сошник на определенную глубину заделки семян с интервалом в 1 см. Сохранение параметра глубины заделки влияет на равномерную всхожесть.
SRZ-5,4 SRZ-5,4-02 SRZ-5,4-01
Width of capture m 5.4
Number of rows:
- for single-row coulters pcs. 36 -
- for two-row coulters pcs. - 72
Row width:
- for single-row coulters cm 15 -
- for two-row openers cm - 7.5
Seeding rates:
- for seeds kg/ha 15-400
- for fertilized kg/ha 25-200
The depth of planting seeds and fertilized mm 40-80
Working speed km/h 9-12
Productivity ha/hour 4.9-6.5
Capacity of bunkers (total): l
- for seeds 1020
- for fertilized 480
Overall dimensions, mm 2950x6750x2750
Weight kg 2554 2803 2804
It is aggregated with tractors with a power of k.s. ot 80
